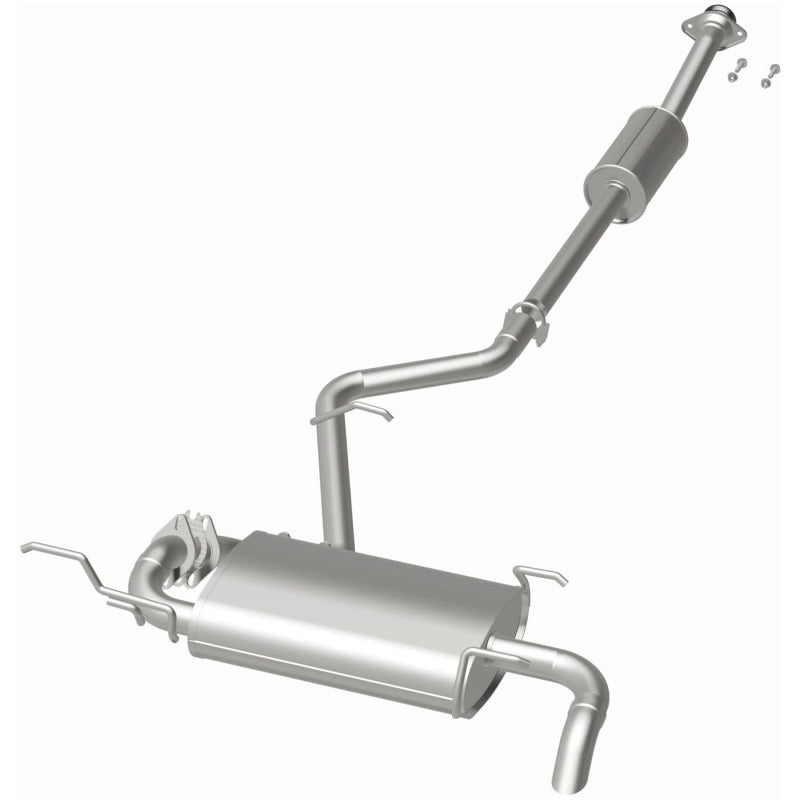

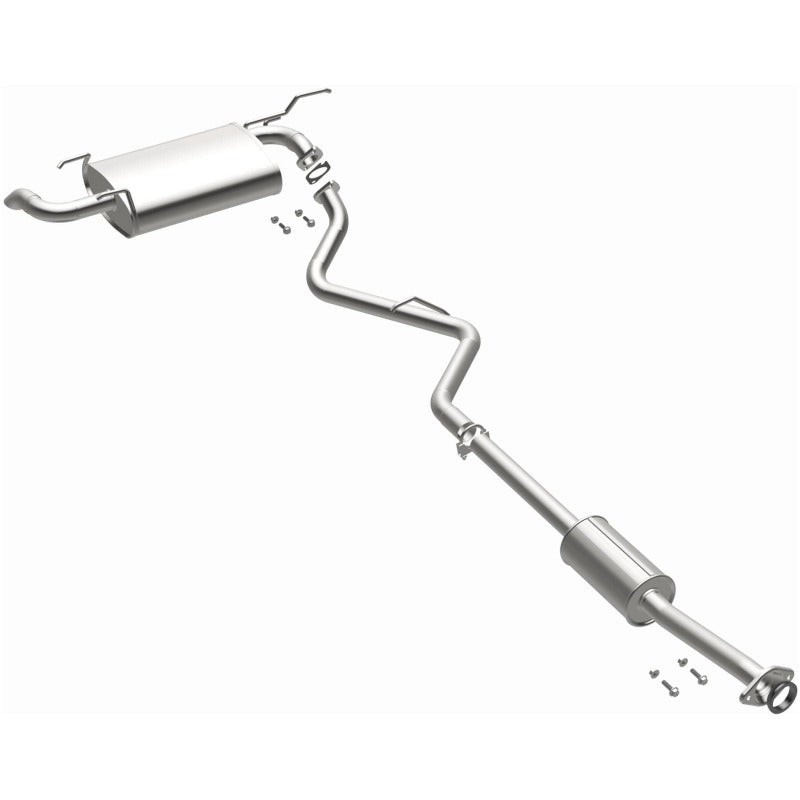

BRExhaust Direct-Fit Replacement Exhaust System 106-0802
The BRExhaust 106-0802 is a complete cat-back replacement exhaust system built for the 2013-2016 Subaru XV Crosstrek 2.0L. It bolts in place of a worn, rusted, or damaged factory exhaust using the same mounting points as the original system, and it restores stock exhaust flow and sealing without cutting, bending, or welding.
Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2013 | Subaru | XV Crosstrek | 2.0L |
| 2014 | Subaru | XV Crosstrek | 2.0L |
| 2015 | Subaru | XV Crosstrek | 2.0L |
| 2016 | Subaru | XV Crosstrek | 2.0L |
This kit interchanges with OE part numbers 44011SG000, 44022AA123, 44044AA010, 44200FN01A, and 44300FL001.
Construction and Specifications
| Detail | Value |
|---|---|
| Brand | BRExhaust |
| Part Number | 106-0802 |
| Product Type | Cat-Back Exhaust System |
| Series | Direct-Fit Exhaust Series |
| System Type | Cat-Back |
| Pipe Material | Aluminized steel |
| Muffler Body Material | Aluminized steel |
| Finish | Satin aluminized |
| Muffler Quantity | 2 |
| Main Piping Diameter | 2 in |
| Inlet Type | Bolt-on |
| Exit Style | OEM location |
| Hardware Included | Yes |
| Bracket Included | No |
| Cutting or Welding Required | No |
| Interchange OE Numbers | 44011SG000, 44022AA123, 44044AA010, 44200FN01A, 44300FL001 |
The system is built from aluminized steel with mandrel-bent piping instead of the crush-bent piping found on many competing replacement exhausts, so the pipe interior stays smoother and consistent for better flow. The multi-piece, bolt-on layout of the 106-0802 is matched to the factory mounting points and routes around axles, crossmembers, and brackets the same way the original exhaust does.
What's Included
- Complete 106-0802 cat-back exhaust piping and muffler assembly
- 1 donut gasket
- 4 nuts
- 4 bolts
- 1 2-inch U-bolt clamp
- 1 2-bolt gasket
Installation Instructions
- Raise and support the vehicle on a lift or jack stands and let the exhaust system cool completely before starting work.
- Apply penetrating fluid to the factory exhaust hangers and flange fasteners at the mounting points behind the catalytic converter.
- Remove the factory exhaust system from the hangers and flange connections, working from front to rear.
- Position the new pipe and muffler sections against the factory mounting points and hangers.
- Install the donut gasket and 2-bolt gasket at the flange connections and secure them with the included bolts and nuts.
- Join the remaining pipe section with the included 2-inch U-bolt clamp.
- Check the full system for clearance around the axle, crossmembers, and heat shields before final tightening.
- Tighten all clamps, bolts, and nuts to the specification in the applicable factory service information.
- Start the engine and inspect every joint and clamp for exhaust leaks before returning the vehicle to normal use.
Warranty
The 106-0802 is covered by a 2-year warranty with no mileage limit against defects in material and workmanship under normal use.
Emissions Compliance
This kit replaces only the piping and muffler sections behind the catalytic converter. The catalytic converter and oxygen sensors stay in place, so the vehicle's factory emissions equipment remains untouched and the system stays emissions compliant.
FAQ
What is the 106-0802?It is a BRExhaust direct-fit cat-back replacement exhaust system built specifically for the 2013-2016 Subaru XV Crosstrek 2.0L.
Do I need to cut or weld anything to install this system?No. The multi-piece, bolt-on design installs at the factory mounting points and hangers without cutting, bending, or welding.
What is included in the box?The complete pipe and muffler assembly, 1 donut gasket, 4 nuts, 4 bolts, 1 2-inch U-bolt clamp, and 1 2-bolt gasket.
What material is this exhaust made from?Aluminized steel piping and muffler bodies with a satin aluminized finish for corrosion resistance.
Will installing this system affect my vehicle's emissions equipment?No. The catalytic converter and oxygen sensors remain in place and untouched, so the vehicle stays emissions compliant.
What OE part numbers does this system replace?44011SG000, 44022AA123, 44044AA010, 44200FN01A, and 44300FL001.
What is the warranty on this exhaust system?A 2-year warranty with no mileage limit against defects in material and workmanship.
Is professional installation required?No. The bolt-on design is intended for DIY installation with common hand tools, though professional installation is always an option.
Does this system include a resonator or exhaust tip?No. This kit uses the factory exit style with no exhaust tip and no separate resonator component.
