Everything Behind the Last Converter on a V6 Pathfinder, in One Box

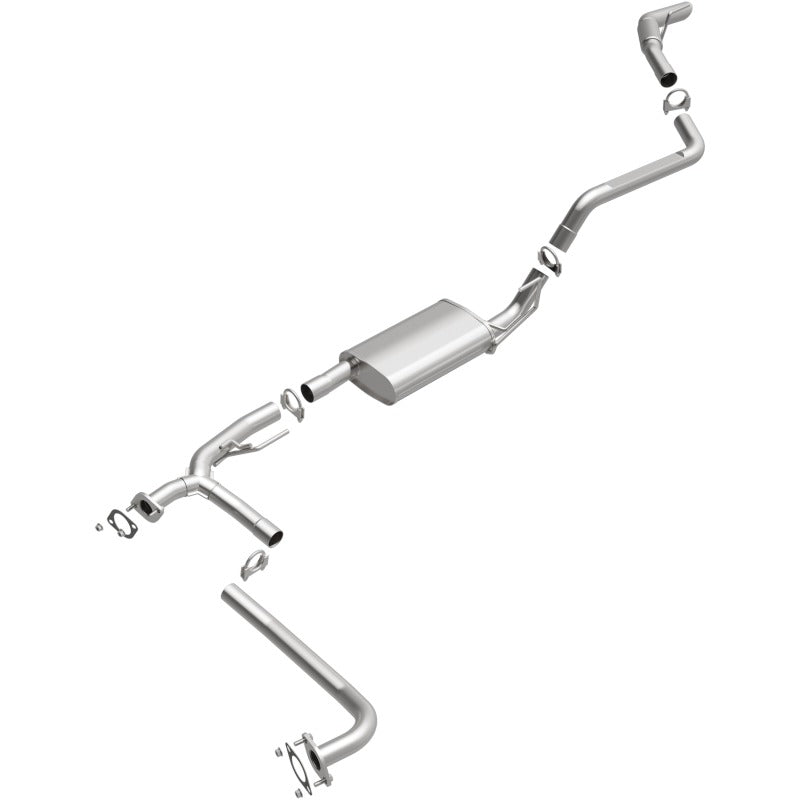

BRExhaust 106-0066 replaces the complete exhaust from behind the last catalytic converter on the 2005-2012 Nissan Pathfinder with the 4.0L V6. It is a two-muffler aluminized steel system on 2.25 in mandrel-bent piping, supplied as an adjustable multi-piece kit that bolts around the axle and crossmembers without any fabrication.
Key Features
- Complete mandrel-bent replacement of everything from behind or near the last catalytic converter rearward.
- Bolt-on adjustable multi-piece design that installs around axles, crossmembers and brackets with no fabrication.
- Leaves all factory emissions equipment in place.
- Corrosion-resistant aluminized steel for both the pipes and the mufflers.
- Two-muffler layout: a 16.25 in main muffler and a small 8 in resonator-sized second unit.
- Hangers and a spring bolt kit are both included.
- The BRExhaust 106-0066 carton ships with the clamps, gaskets and fasteners needed for the job.
Fitment
| Vehicle | Engine and years |
|---|---|
| Nissan Pathfinder | 2005-2012, 4.0L V6 |
Engine matters on this platform, so confirm the 4.0L V6 before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | BRExhaust |
| MPN | 106-0066 |
| Series | Direct-Fit Exhaust |
| Main piping diameter | 2.25 in |
| Muffler quantity | 2 |
| Front muffler | 4.5 in H x 16.25 in L x 9.75 in W |
| Rear muffler | 3 in H x 8 in L x 3 in W |
| Pipe and muffler material | Aluminized steel |
| Muffler finish | Aluminized |
| Overall finish | Satin |
| Exit style | OEM location |
| Inlet type | Bolt-on |
| Clamping | U-bolt |
| Hangers included | Yes |
| Spring bolt kit | Yes |
| Catalytic converter included | No |
| Mounting bracket | No |
| Warranty | 2-year unlimited-mileage construction warranty |
What's Included
- One BRExhaust 106-0066 direct-fit exhaust system kit with all pipes and both mufflers
- One 2.125 in U-bolt clamp
- Three 2.25 in U-bolt clamps
- Two 2-bolt gaskets
- Four bolts and four nuts
- Installation instructions
About BRExhaust
BRExhaust is MagnaFlow's OE-replacement exhaust brand: aluminized direct-fit systems built to put a rusted-out factory exhaust back to standard rather than to change how the vehicle sounds. Every kit in the line is shipped as multiple pieces so it can be threaded around the chassis and adjusted before the clamps are tightened, and 106-0066 follows the original Pathfinder routing over the rear axle.
Related Parts
FAQ
Which section of the exhaust does this kit replace?It picks up behind the last catalytic converter and continues rearward, so the converters and everything ahead of them stay on the truck.
Will it change the exhaust note?It is an OE-replacement design in aluminized steel with two mufflers, so the intent is to restore the factory sound rather than to make the vehicle louder.
Does it include a catalytic converter?No. The kit starts behind or near the last converter and leaves all emissions equipment in place.
Are hangers supplied?Yes, this kit includes hangers and a spring bolt kit, which is not true of every kit in the BRExhaust range.
Do I need to cut or weld anything?No. The multi-piece design bolts and clamps together and is adjusted in place before final tightening.
What size is the main piping?2.25 in, mandrel bent to keep the bore consistent through the bends.
How many mufflers are in the system?Two, a 16.25 in main muffler and a smaller 8 in unit.
Is aluminized steel going to rust?Aluminized steel is corrosion resistant rather than corrosion proof. It is the same class of material used on most factory systems.
What warranty applies?A two-year unlimited-mileage construction warranty.
Installation Instructions
- Let the exhaust cool completely, then raise the vehicle on a lift or rated stands with room to work under the rear axle.
- Soak the factory flange fasteners and hanger isolators with penetrating oil before attempting removal.
- Support the old system, disconnect it at the converter flange, and free each hanger from its isolator working front to rear.
- Lay the new pieces out on the floor in order and compare them against the old system before lifting anything into place.
- Fit the front pipe to the converter flange with a new 2-bolt gasket and start the bolts by hand.
- Work rearward, sliding each joint together with a U-bolt clamp loosely fitted and seating each hanger into its isolator.
- Route the system around the axle and crossmembers and adjust the slip joints for clearance to the floor pan, spare tyre and fuel lines.
- Tighten the flange bolts, then tighten the U-bolt clamps front to rear, and confirm the tailpipe sits in the OEM exit position.
- Start the engine, check every joint for leaks, then drive and re-check the clamps once the system has been through a full heat cycle. MagnaFlow states professional installation is always recommended for this product family.
