SKU: 14013-1 | UPC: 807298078366

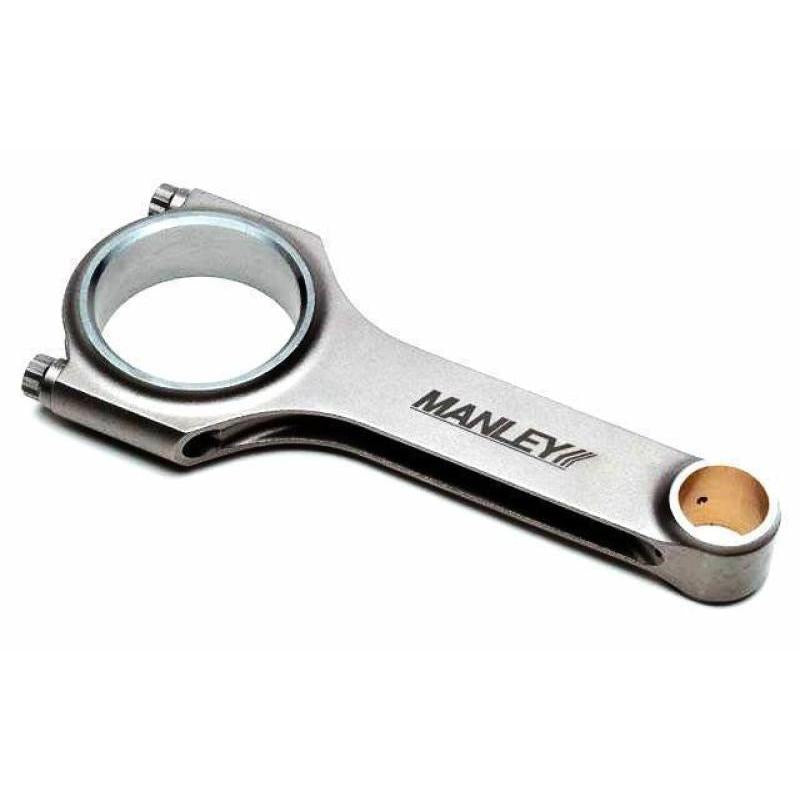

Manley Acura D16 (1986-2001) & ZC / Honda D16 (1988-2005) & ZC H-Beam Connecting Rod Set
Manley H-Beam connecting rods provide strength for Honda D16 SOHC and Acura ZC engine builds. These rods fit Civic CRX Del Sol and Integra models with D16 engines. Built with the same craftsmanship as higher end series they handle increased horsepower and RPM.
Key Features
- Forged 4340 Steel: Aircraft grade alloy ensures durability under high stress and heat
- H-Beam Design: Wider beam transfers power efficiently while resisting bending
- ARP 2000 Bolts: High tensile cap screws rated to 220000 psi for secure fastening
- Precision Dimensions: 136mm center to center 51mm big end bore 22mm small end bore machined to OEM specs
- Lightweight Build: 530 grams per rod reduces reciprocating mass for quicker revs
Product Notes
- Set of 4 rods designed for complete engine rebuilds
- Rods must be balanced with pistons and crank during assembly
- Packaged in protective tube for safe delivery
Installation Notes
- Professional installation recommended.
- Apply ARP moly lubricant to bolts before assembly
- Torque ARP bolts to 60-65 ft-lbs in three stages check Manley instructions
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986-1989 | Acura | Integra | LS RS |
| 1988-1991 | Honda | Civic | DX HF LX Si |
| 1988-1991 | Honda | CRX | DX HF Si |
| 1992-1995 | Honda | Civic | Si |
| 1992-1996 | Honda | Civic Del Sol | S Si VTEC |
| 1996-2000 | Honda | Civic | DX HX LX CX EX |
| 1996-2005 | Honda | Civic | VP VP Sedan |
Why Choose Manley?
- Trusted by racers for decades in performance engines
- Every rod undergoes magnetic particle inspection
- Engineered for street and track reliability
Frequently Asked Questions
-
Q: Which specific D16 engines are compatible?
A: Fits all SOHC D16 variants including D16A1 A6 Y7 Y8 Z6 and ZC motors with 136mm rod length confirm your crank stroke -
Q: What finish and material details?
A: Forged 4340 steel construction with rifle drilled oiling and 100 percent ultrasonic tested for flaws -
Q: What warranty coverage?
A: Backed by Manley limited warranty for defects in materials or workmanship when installed correctly
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective tube 3 in x 14 in x 8 in
- Weight: 3.10 lbs
