SKU: 14051R-1 | UPC: 807298002392

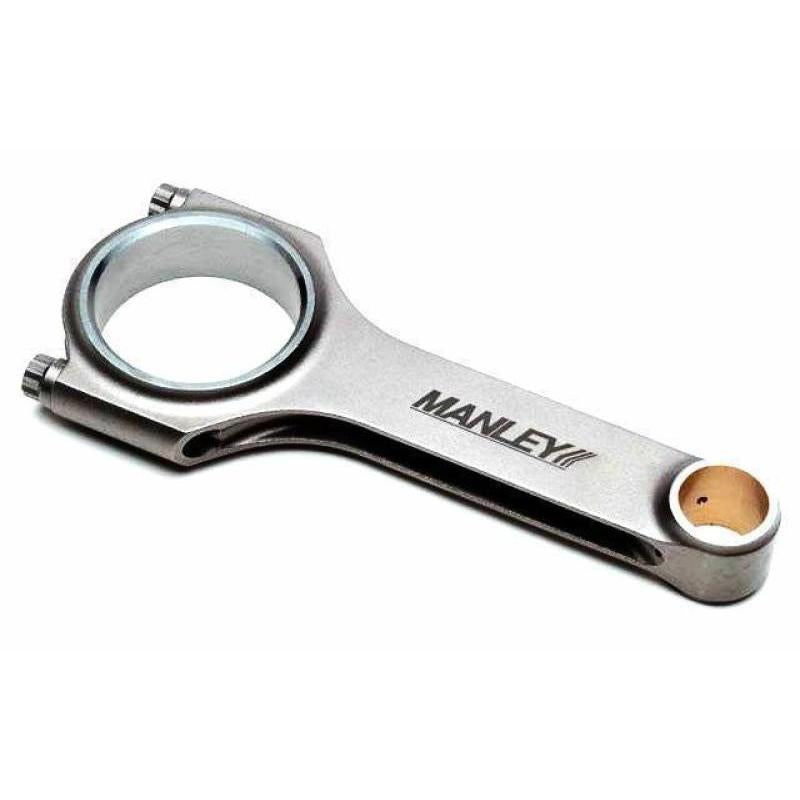

Manley Chevy Small Block LS-1 6.125in H Beam w/ ARP 2000 Connecting Rod *Single (1997-2004 Corvette, 1998-2002 Camaro Firebird)
Manley H-Beam connecting rods deliver strength for Chevy Small Block LS-1 engines in high-performance builds. This single rod fits 1997-2004 Chevrolet Corvette LS1/LS6, 1998-2002 Chevrolet Camaro LS1 and Pontiac Firebird LS1 models. Forged construction with premium bolts ensures durability under boost and high RPM.
Key Features
- Forged 4340 Steel: High-tensile alloy resists fatigue and handles 800+ HP applications reliably
- ARP 2000 Bolts: 7/16in diameter cap screws rated 220,000 PSI for secure rod cap retention
- H-Beam Shape: Distributes stress evenly for smooth operation at elevated engine speeds
- 610 Gram Weight: Light rotating assembly improves throttle response and acceleration
- Exact Dimensions: 6.125in center-to-center, 2.100in big-end bore, 0.927in small-end bore, 0.860in big-end width
Product Notes
- Sold as single rod. order sets of 8 for complete engine
- Balance rods as a matched set before final assembly
- Shot-peened finish enhances surface strength
Installation Notes
- Professional installation recommended.
- Torque ARP bolts to 110 ft-lbs with ARP moly lubricant
- Works with LS-series pistons and 3.622in stroke cranks
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Chevrolet | Corvette | Base, Z06 (LS1/LS6) |
| 1998-2002 | Chevrolet | Camaro | Z28, SS (LS1) |
| 1998-2002 | Pontiac | Firebird | Formula, Trans Am (LS1) |
Why Choose Manley?
- Four decades crafting forged engine parts for racers
- Quality matches Sportsmaster and Pro Series standards
- Precision machined for consistent performance
Frequently Asked Questions
-
Q: Will this rod work in LS2 or LS3 engines?
A: Designed for 6.125in LS1/LS6. LS2 requires 6.098in rods -
Q: What material and treatment does it have?
A: 4340 EN30 steel alloy, shot-peened and stress-relieved -
Q: What warranty applies?
A: Limited warranty covers manufacturing defects. register with Manley
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 8 x 3 x 1.5 inches
- Weight: 1.3 lbs
