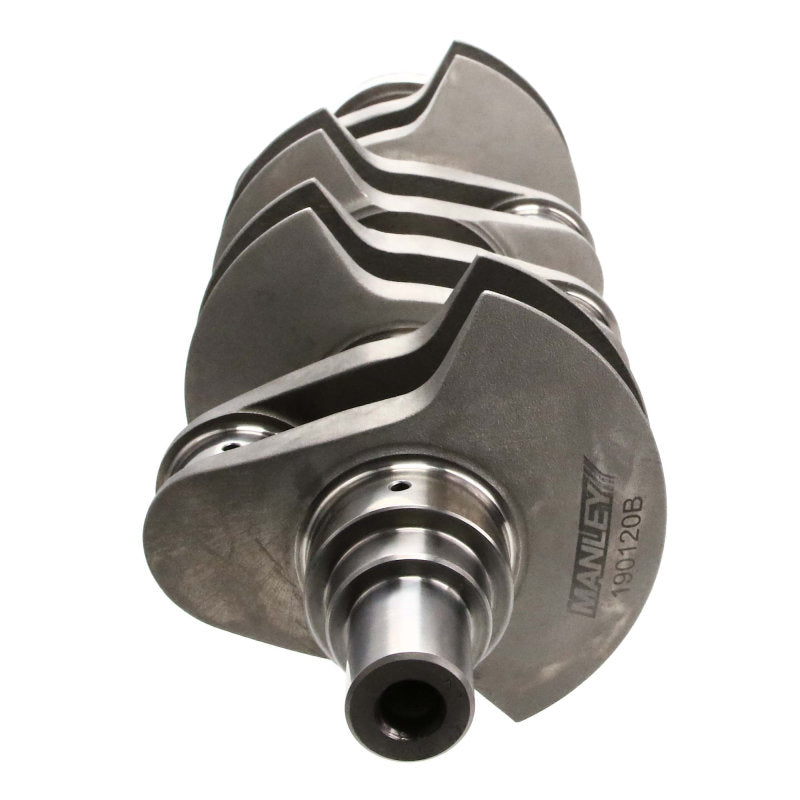

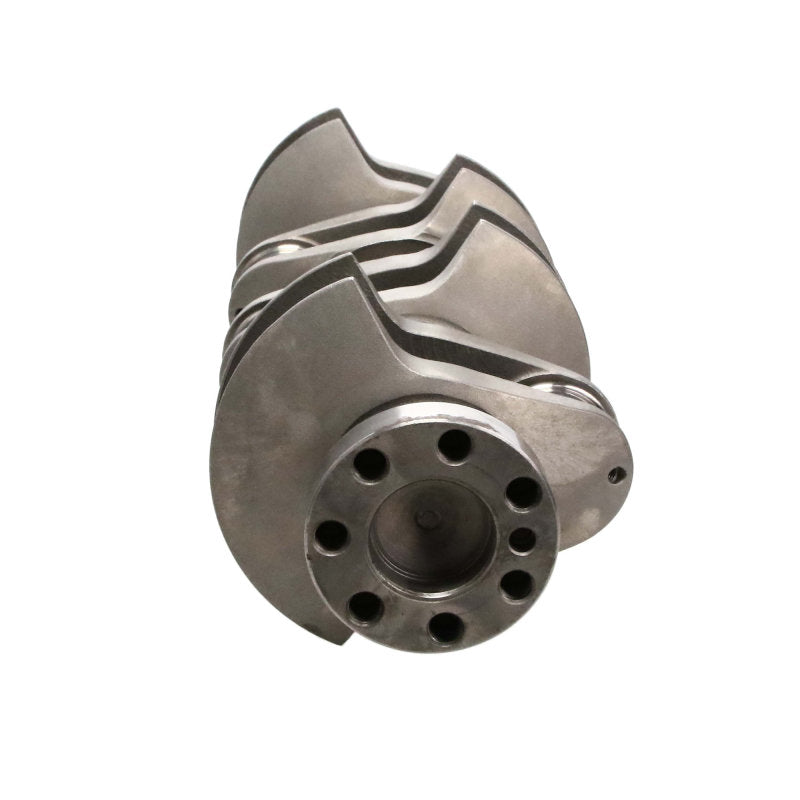

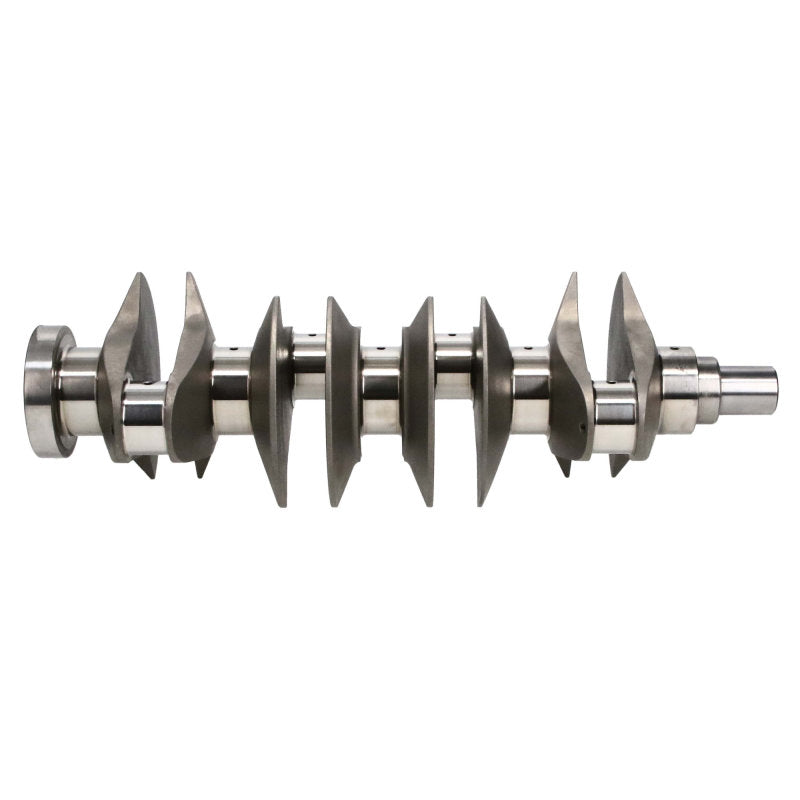

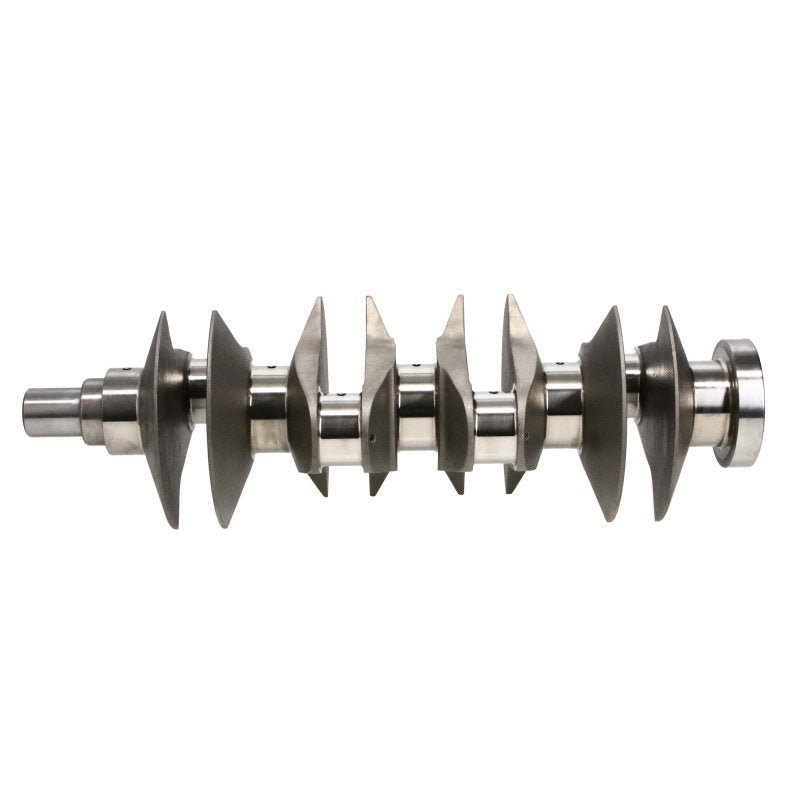

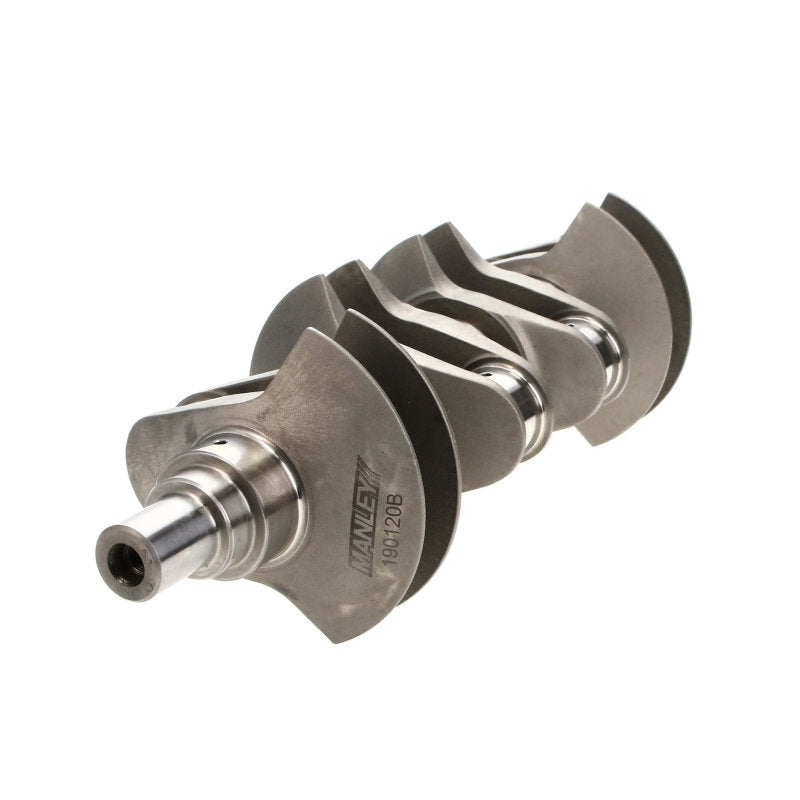

Manley Mitsubishi 4G63/4G64 7 Bolt 4340 Billet 94mm Stroke Turbo Tuff Series Crankshaft

MAN190110B
807298061092
Crankshafts
3 Units In Stock - Ships Next Business Day
$ 1,964.03 $ 1,865.83
$ 1,865.83

SKU: 190110B | UPC: 807298061092

Manley Mitsubishi 4G63/4G64 7 Bolt 4340 Billet 94mm Stroke Turbo Tuff Series Crankshaft 1993-2006

Manley Turbo Tuff Series crankshaft delivers strength for high horsepower turbo builds in Mitsubishi 4G63 and 4G64 7-bolt engines. This 94mm stroke billet crank fits Eclipse GST/GSX, Eagle Talon TSi, Lancer Evolution, Galant, and other DSM models from 1993-2006. Fully machined from 4340 steel with advanced oiling, it handles extreme boost levels and RPM reliably.

Key Features

  • 4340 Billet Steel Construction: Heat-treated and nitrided for maximum fatigue resistance in high boost applications up to 1000+ HP.
  • 94mm Stroke Design: Boosts engine displacement to 2.3L+ for increased torque and power in turbocharged 4G63/4G64 setups.
  • Gun-Drilled Lightweight Channels: Straight-shot oiling improves flow to rod bearings, reducing heat and extending life under boost.
  • Precision Micro-Polished Journals: Main journals 55mm, rod journals 48mm for perfect fit with stock or aftermarket components and minimal friction.
  • Internal Balance: Factory balanced for smooth high-RPM operation, ready for immediate use with matching rotating assembly.

Product Notes

  • Intended for competition use. verify block clearance before installation.
  • Pair with Manley H-beam rods and pistons for optimal performance.
  • Securely packaged in foam-lined box to prevent shipping damage.

Installation Notes

  • Professional installation recommended.
  • Balance entire rotating assembly including pistons and rods.
  • Compatible with 7-bolt main blocks. uses stock main/rod bearings.

This Part Fits

Year Make Model Submodel
1993-1998 Eagle Talon TSi
1993-1994 Mitsubishi Eclipse GS
1993-1999 Mitsubishi Eclipse GST
1993-1999 Mitsubishi Eclipse GSX
1996-1999 Mitsubishi Eclipse Spyder GST
1992-1995 Mitsubishi Expo Base
1992-1993 Mitsubishi Expo SP
1997-2004 Mitsubishi Galant DE
1994-2004 Mitsubishi Galant ES
1994 Mitsubishi Galant GS
1994-1998,2002-2003 Mitsubishi Galant LS
1994-1996 Mitsubishi Galant S
2003-2006 Mitsubishi Lancer Evolution
1997-1999 Mitsubishi Montero Sport ES
2003 Mitsubishi Outlander LS
2003 Mitsubishi Outlander XLS
1993-1994 Plymouth Laser RS

Why Choose Manley?

  • Decades of motorsport experience powering championship-winning engines.
  • USA-made with stringent quality control for consistent performance.
  • Advanced engineering tested in extreme racing conditions worldwide.

Frequently Asked Questions

  • Q: Will this fit 2G Eclipse GSX or 1G Talon TSi?
    A: Yes, designed specifically for 7-bolt 4G63/4G64 blocks in 1993-1999 DSM models like Eclipse GSX, GST, Talon TSi, and Laser RS.
  • Q: What material and finishes are used?
    A: Forged from 4340 aircraft-grade steel, heat-treated, nitrided, and micro-polished for superior strength and journal longevity.
  • Q: What warranty applies and installation tips?
    A: Backed by Manley warranty. professional balancing and install required. Compatible with H-Tuff rods (MPN 14060-8).

Shipping & Handling

  • Method: UPS Ground or FedEx, free on orders over $149
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-wrapped in heavy-duty box, dimensions 28 x 10 x 10 inches
  • Weight: 42 lbs
