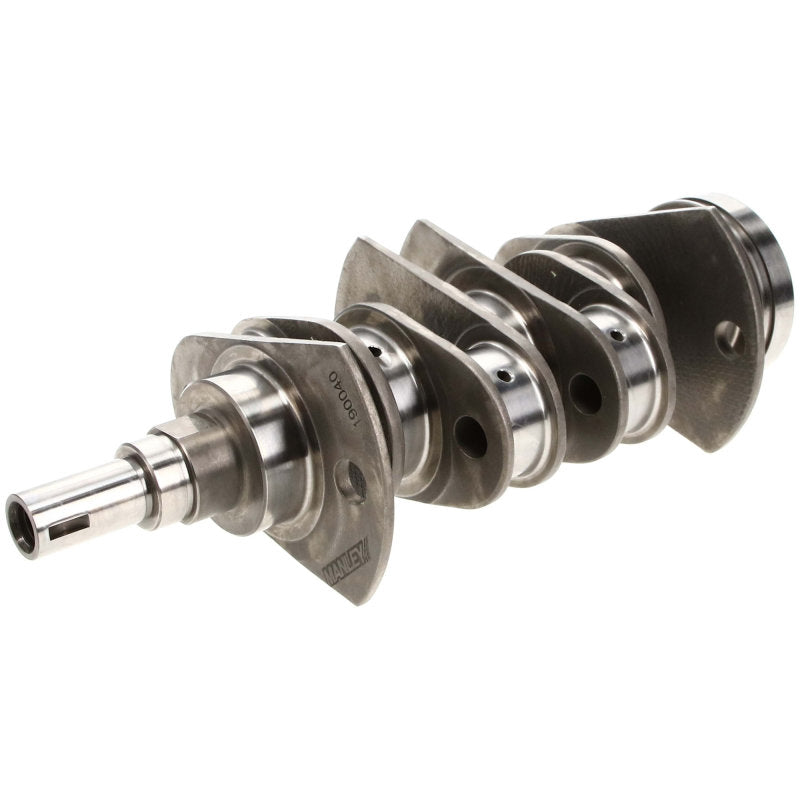

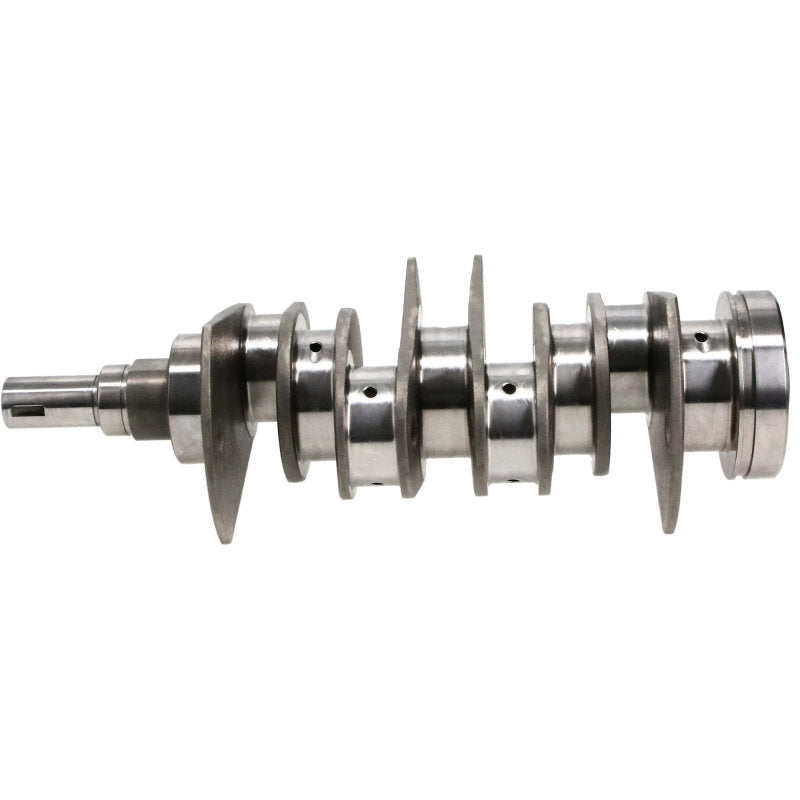

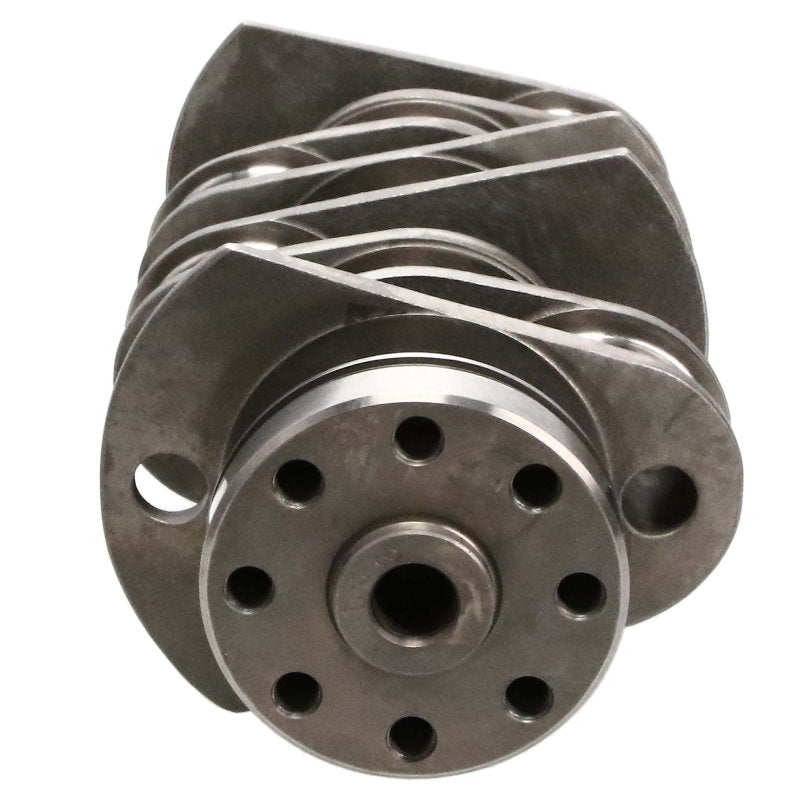

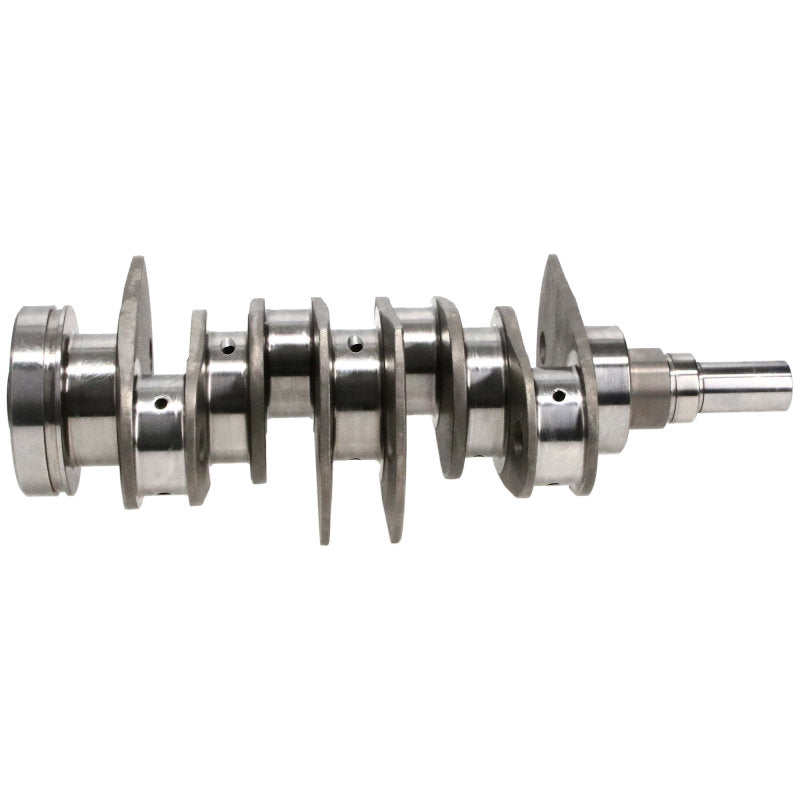

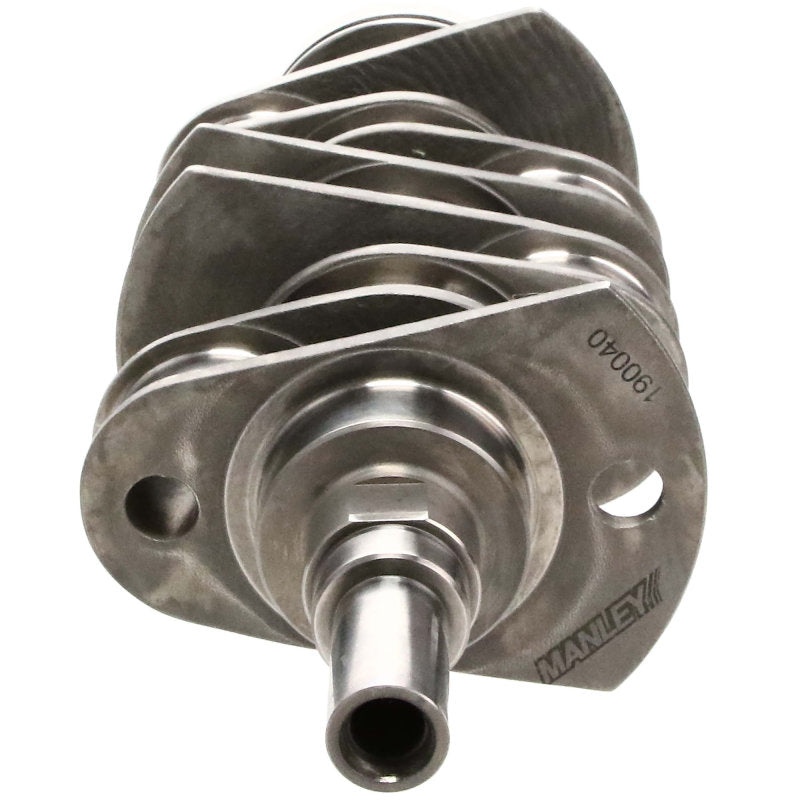

Manley Subaru EJ20/EJ25 4340 Billet 79mm Stroke Turbo Tuff Series Crankshaft

MAN190040B
807298062945
Crankshafts
1 Units In Stock - Ships Next Business Day
$ 2,201.10 $ 2,091.05
$ 2,091.05

SKU: 190040B | UPC: 807298062945

Manley Subaru EJ20/EJ25 4340 Billet 79mm Stroke Turbo Tuff Series Crankshaft (1996-2012)

Manley Turbo Tuff Series crankshaft delivers strength for high boost and high horsepower Subaru EJ20 and EJ25 engines. Fully machined from billet 4340 steel this 79mm stroke crank fits Impreza WRX STI Forester XT Legacy GT Outback XT Baja and Saab 9-2X Aero models from 1996 to 2012. Nitrided journals and precise balancing support extreme turbo setups with reliable performance.

Key Features

  • 4340 Billet Steel Construction: Heat treated stress relieved shot peened and magnafluxed for maximum durability under high boost loads
  • 79mm Stroke Design: Increases displacement for higher power output in EJ20 EJ25 builds
  • Nitrided Main and Rod Journals: Micro polished for reduced friction and extended bearing life
  • Fully Balanced Assembly: Ensures vibration-free operation when matched with rods and pistons
  • Gun-Drilled Oil Holes: Improves lubrication flow with chamfered edges and large radius fillets

Product Notes

  • Intended for high horsepower turbocharged applications exceeding 1000 HP
  • Lightening holes in webs 3 and 5 reduce rotating mass without compromising strength
  • Ships in protective wooden crate for safe handling

Installation Notes

  • Professional installation recommended.
  • Requires complete engine balancing with connecting rods and pistons
  • Compatible with standard EJ main bearings and rod bearings

This Part Fits

Year Make Model Submodel
2005-2006 Saab 9-2X Aero
2003 Subaru Baja Base
2003-2006 Subaru Baja Sport
2004-2006 Subaru Baja Turbo
1998-2002 Subaru Forester Base
1998-2002 Subaru Forester L
1998-2002 Subaru Forester S
2008 Subaru Forester Sports 2.5 X
2008 Subaru Forester Sports 2.5 XT
2003-2011 Subaru Forester X
2006-2008 Subaru Forester X L.L. Bean Edition
2009-2011 Subaru Forester X Limited
2009-2011 Subaru Forester X Premium
2011 Subaru Forester X Touring
2003-2005 Subaru Forester XS
2005 Subaru Forester XS L.L. Bean Edition
2004-2005,2009 Subaru Forester XT
2006-2010 Subaru Forester XT Limited
2005,2010-2011 Subaru Forester XT Premium
2011 Subaru Forester XT Touring
2009-2010 Subaru Impreza 2.5 GT
2006-2011 Subaru Impreza 2.5i
2010-2011 Subaru Impreza 2.5i Premium
2012 Subaru Impreza Base
2012 Subaru Impreza Limited
2002-2004 Subaru Impreza Outback
2005-2011 Subaru Impreza Outback Sport
2012 Subaru Impreza Premium
1998-2005 Subaru Impreza RS
2012 Subaru Impreza Sport Limited
2012 Subaru Impreza Sport Premium
2002-2004 Subaru Impreza TS
2002-2012 Subaru Impreza WRX
2006-2007,2010-2012 Subaru Impreza WRX Limited
2009-2012 Subaru Impreza WRX Premium
2004-2012 Subaru Impreza WRX STI
2007,2011-2012 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2006-2007 Subaru Impreza WRX TR
2010-2011 Subaru Legacy 2.5GT
2006-2011 Subaru Legacy 2.5i
2007-2011 Subaru Legacy 2.5i Limited
2010-2011 Subaru Legacy 2.5i Premium
2007-2009 Subaru Legacy 2.5i Special Edition
2000 Subaru Legacy Brighton
1996-2006 Subaru Legacy GT
1998,2000-2002,2005,2007-2009 Subaru Legacy GT Limited
2006-2009 Subaru Legacy GT spec.B
2005 Subaru Legacy i
2000-2004 Subaru Legacy L
2004 Subaru Legacy L 35th Anniversary
2003 Subaru Legacy L SE
2005 Subaru Legacy Limited
1999 Subaru Legacy Limited 30th Anniversary
1996-1997 Subaru Legacy LSi
1996-1999 Subaru Legacy Outback
1997,1999 Subaru Legacy Outback Limited
1999 Subaru Legacy SUS 30th Anniversary
2006-2011 Subaru Outback 2.5i
2007 Subaru Outback 2.5i Basic
2008 Subaru Outback 2.5i L.L. Bean Edition
2006-2011 Subaru Outback 2.5i Limited
2008 Subaru Outback 2.5i Limited L.L. Bean Edition
2010-2011 Subaru Outback 2.5i Premium
2009 Subaru Outback 2.5i Special Edition
2000-2004,2008 Subaru Outback Base
2005 Subaru Outback i
2000-2005 Subaru Outback Limited
2005-2006 Subaru Outback XT
2005-2009 Subaru Outback XT Limited

Why Choose Manley?

  • Engineered and manufactured in the USA with racing-proven designs
  • Backed by decades of experience in high-performance engine components
  • Precision CNC machining for exact tolerances and consistent quality

Frequently Asked Questions

  • Q: Will this fit my 2004 Subaru Impreza WRX STI?
    A: Yes it fits all listed 2004-2012 Impreza WRX STI models with EJ25 engines as confirmed in the fitment table
  • Q: What material is used and how is it finished?
    A: Forged from 4340 aircraft-quality steel with heat treatment nitriding micro-polishing and shot peening for strength and wear resistance
  • Q: Does it come with a warranty and what about installation?
    A: Manley offers a limited warranty against defects professional installation and engine balancing are required for optimal performance

Shipping & Handling

  • Method: UPS Freight or FedEx Ground for heavy items
  • Availability: In stock - ships same or next business day
  • Packaging: Protective wooden crate 32 x 16 x 12 inches
  • Weight: 38 lbs
