SKU: 15084-1 | UPC: 807298108766

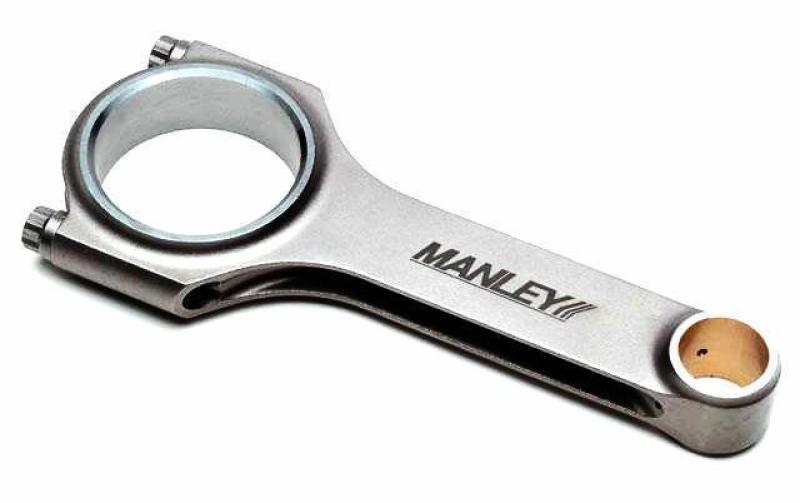

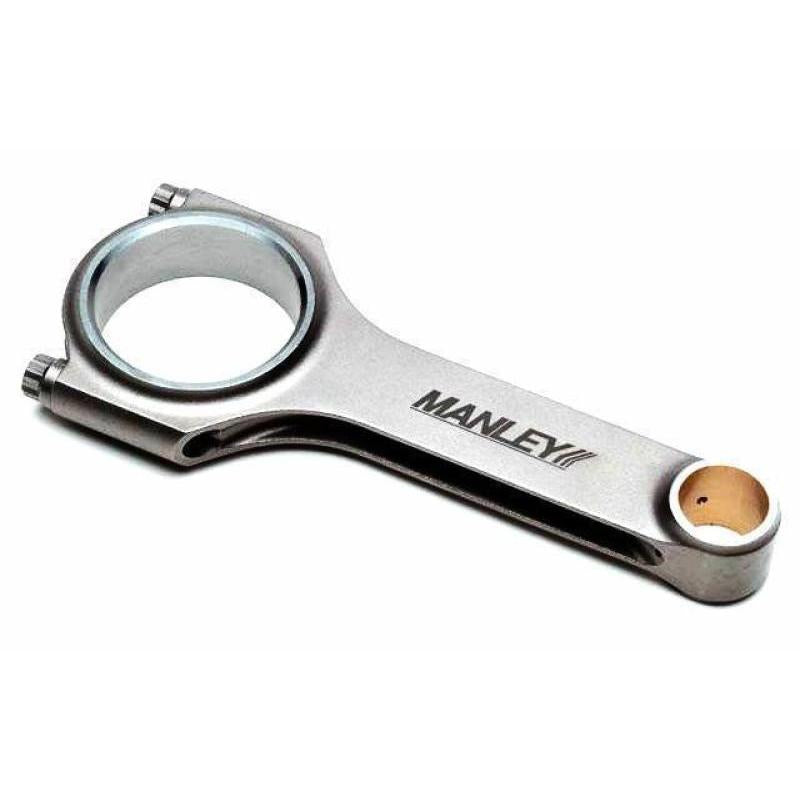

Manley Subaru FA20 2.0L H-Tuff H-Beam Connecting Rod Single (2013-2020 BRZ, 2013-2016 FR-S, 2017-2020 86)
Manley H-Tuff H-beam connecting rods deliver strength for high-performance Subaru FA20 2.0L engines. This single rod fits 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2017-2020 Toyota 86 models. Built to handle 1200+ horsepower with reinforced design and premium materials for reliable power in boosted or high-RPM applications.
Key Features
- H-Tuff H-Beam Design: Thicker beam section built for extreme duty in high-boost turbocharged FA20 engines
- Forged 4340 EN30B Steel: Heat-treated, stress-relieved, shot-peened, and sonic-tested for maximum tensile strength
- ARP 2000 Bolts: 220,000 psi rated cap screws included for secure rod big-end retention
- Precision Specifications: 144.77mm center-to-center length, 53.97mm big-end bore, 22mm small-end bore, 595 gram weight
- Ready-to-Install: Fully balanced, machined bushings, and honed big ends ensure direct compatibility
Product Notes
- Sold as single rod for custom builds or replacements
- Apply assembly lube to bearings and bolts during installation
- Carefully packaged to arrive undamaged
Installation Notes
- Professional installation recommended.
- Torque ARP bolts to Manley specifications using ARP Ultra-Torque lube
- Compatible with OEM pistons, bearings, and crank. resize big ends if reusing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2020 | Subaru | BRZ | Base, Limited, Premium |
| 2013-2016 | Scion | FR-S | Base, Premium |
| 2017-2020 | Toyota | 86 | Base, GT, GT Black, GT Limited, GT Premium |
Why Choose Manley?
- Trusted by racers in drag, road race, and endurance events
- USA-made with strict quality control from forging to finishing
- Engineered for precision fit and long-term durability in performance builds
Frequently Asked Questions
-
Q: Does this rod fit 2015 Scion FR-S or 2018 Toyota 86 with FA20 engine?
A: Yes, direct bolt-in replacement for all 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2017-2020 Toyota 86 FA20 2.0L models. -
Q: What material and finish do these rods have?
A: Forged 4340 EN30B alloy steel construction with silver/zinc plating, shot-peened for fatigue resistance. -
Q: What warranty coverage is provided?
A: Covered under Manley limited lifetime warranty for defects in materials or workmanship.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box measuring 14.4 x 7 x 2.9 inches
- Weight: 1.31 lbs
