MaxTrac 07-16 GM C1500 2WD 3in Front Lift Spindles w/Extended DOT Compliant Brake Lines - Black Ops Auto Works
Click to zoom in

MaxTrac 07-16 GM C1500 2WD 3in Front Lift Spindles w/Extended DOT Compliant Brake Lines

Maxtrac
MXT701330BL
738283445828
Steering Knuckles & Spindles
12 Units In Stock - Ships Next Business Day
$ 653.85 $ 564.69
FREE Ground Shipping!
$ 564.69

SKU: 701330BL | UPC: 738283445828

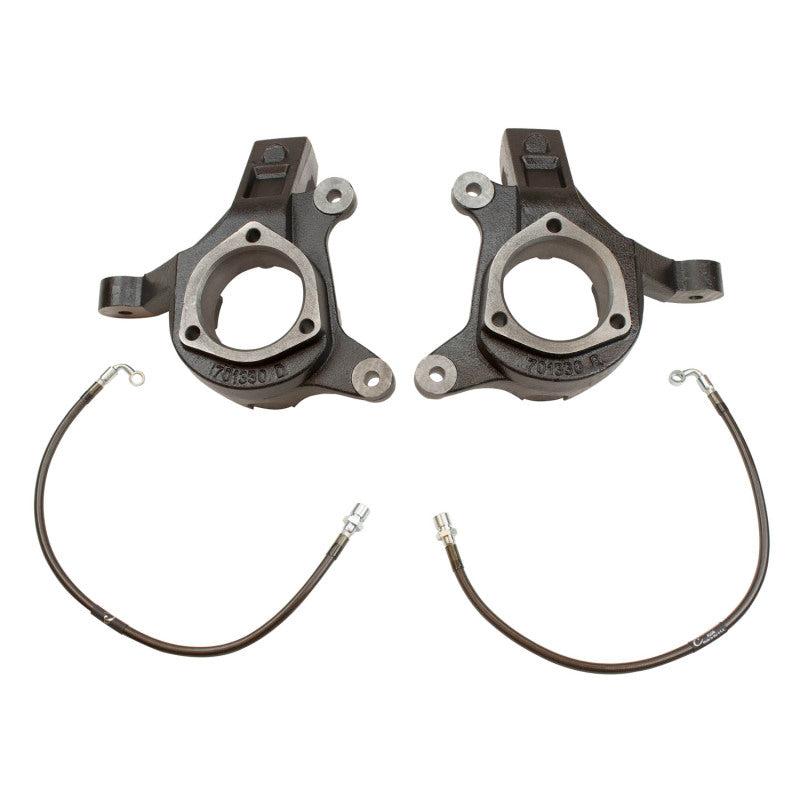

MaxTrac 07-16 GM C1500 2WD 3in Front Lift Spindles w/Extended DOT Compliant Brake Lines

MaxTrac 3-inch front lift spindles deliver precise lift for 2007-2016 GM 1500 2WD trucks including Chevy Silverado GMC Sierra Tahoe Yukon Escalade Avalanche. Crafted from ductile iron with e-coat finish these spindles include extended DOT-approved brake lines and all hardware for direct bolt-on installation. Gain clearance for 285/70R17 tires on 17-inch wheels with 4 5/8-inch backspacing while stock wheels and tires fit without rubbing.

Key Features

  • 3-Inch Lift Height: Provides exact front elevation for improved approach angle and larger tire capacity without altering suspension geometry.
  • Ductile Iron Construction: High-strength material handles heavy loads and off-road demands with no flex or failure.
  • E-Coated Finish: Resists rust and corrosion for long-term durability in harsh weather and salted roads.
  • Extended DOT Brake Lines: Pre-installed compliant lines ensure safe braking performance and legal street use post-lift.
  • Complete Hardware Kit: All bolts bushings and fittings included for straightforward installation without extra parts.

Product Notes

  • Requires 17-inch or larger wheels with minimum 4 5/8-inch backspacing. 285/70R17 tires recommended.
  • Stock 17-inch wheel and tire combinations clear without modification.
  • Ships as pair. weight 52 lbs shipping weight 60 lbs box dimensions 24 x 18 x 12 inches.

Installation Notes

  • Professional installation recommended.
  • 2-4 hour job using standard tools. no cutting or welding required.
  • Compatible with factory steering knuckles. torque specs per MaxTrac instructions.

This Part Fits

Year Make Model Submodel
2007-2014 Cadillac Escalade Base
2009-2013 Cadillac Escalade Hybrid
2010-2013 Cadillac Escalade Hybrid Platinum
2011-2014 Cadillac Escalade Luxury
2008-2014 Cadillac Escalade Platinum
2011-2014 Cadillac Escalade Premium
2008-2014 Cadillac Escalade ESV Base
2011-2014 Cadillac Escalade ESV Luxury
2008-2014 Cadillac Escalade ESV Platinum
2011-2014 Cadillac Escalade ESV Premium
2013 Chevrolet Avalanche Black Diamond LS
2013 Chevrolet Avalanche Black Diamond LT
2013 Chevrolet Avalanche Black Diamond LTZ
2007-2012 Chevrolet Avalanche LS
2007-2012 Chevrolet Avalanche LT
2007-2012 Chevrolet Avalanche LTZ
2016-2018 Chevrolet Silverado 1500 Custom
2014-2018 Chevrolet Silverado 1500 High Country
2008-2013,2015-2018 Chevrolet Silverado 1500 LS
2007-2018 Chevrolet Silverado 1500 LT
2007-2018 Chevrolet Silverado 1500 LTZ
2015-2018 Chevrolet Silverado 1500 SSV
2007-2018 Chevrolet Silverado 1500 WT
2010-2013 Chevrolet Silverado 1500 XFE
2008-2011 Chevrolet Tahoe Hybrid
2007-2014 Chevrolet Tahoe LS
2007-2014 Chevrolet Tahoe LT
2007-2014 Chevrolet Tahoe LTZ
2012-2014 Chevrolet Tahoe PPV
2014-2018 GMC Sierra 1500 Base
2007-2018 GMC Sierra 1500 Denali
2008-2013 GMC Sierra 1500 SL
2007-2018 GMC Sierra 1500 SLE
2007-2018 GMC Sierra 1500 SLT
2007-2013 GMC Sierra 1500 WT
2010-2013 GMC Sierra 1500 XFE
2008-2014 GMC Yukon Denali
2010-2013 GMC Yukon Denali Hybrid
2008-2013 GMC Yukon Hybrid
2007-2014 GMC Yukon SLE
2007-2014 GMC Yukon SLT
2008-2014 GMC Yukon XL 1500 Denali
2007-2014 GMC Yukon XL 1500 SLE
2007-2014 GMC Yukon XL 1500 SLT
2007-2013 GMC Yukon XL 2500 SLE
2007-2013 GMC Yukon XL 2500 SLT

Why Choose MaxTrac?

  • Proven leader in truck suspension components since 1986.
  • CNC-machined for exact fit and alignment retention.
  • Backed by limited lifetime warranty on spindles.

Frequently Asked Questions

  • Q: Does this fit my 2010 Chevy Silverado 1500 LT 2WD?
    A: Yes fits all listed 2007-2018 Silverado 1500 2WD submodels including LT confirm 2WD drivetrain.
  • Q: What material are the spindles made from?
    A: Cast ductile iron with black e-coat finish for strength and rust protection.
  • Q: What warranty is included?
    A: Limited lifetime warranty on spindles against manufacturing defects excludes abuse or improper install.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Secure double-wall box 24 x 18 x 12 inches
  • Weight: 52 lbs product 60 lbs shipping
