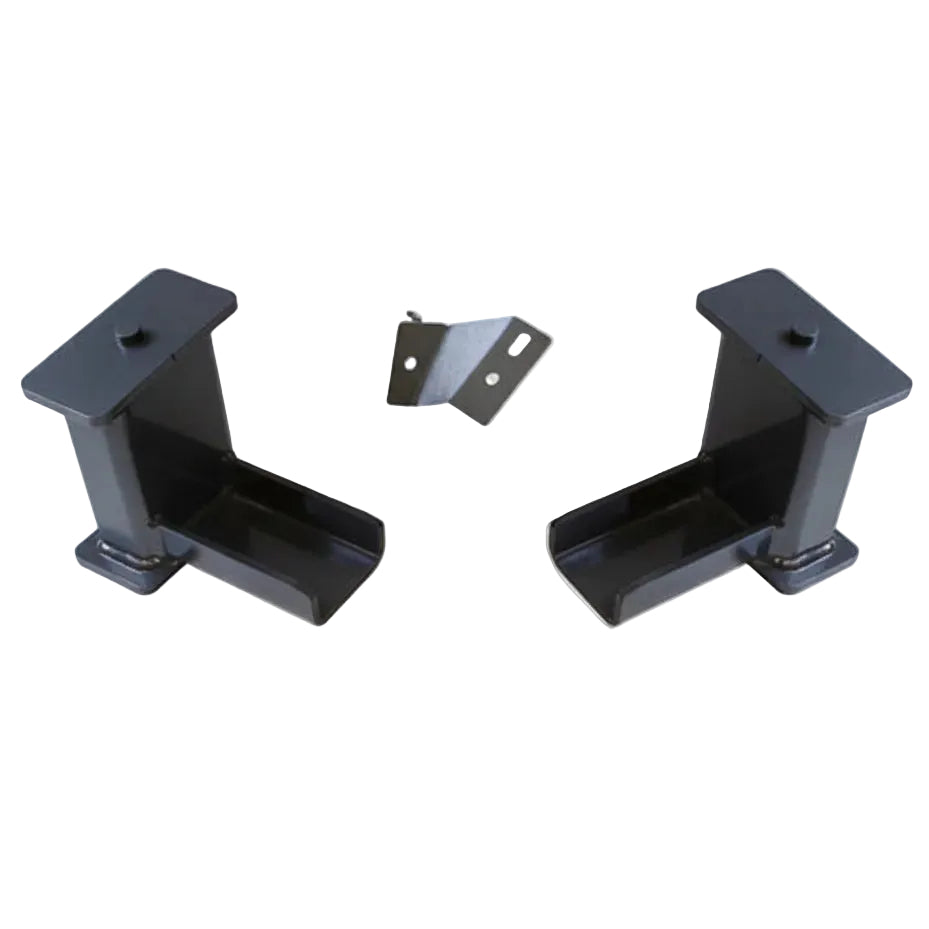

Add rear lift to your 2009-2020 Ford F-250 or F-350 with the MaxTrac 813360 fabricated lift blocks, built with a 6 degree angle for a 6 inch rear lift.
These blocks are fabricated from steel and powder coated gray, giving the rear of your Super Duty extra ground clearance for larger tires and off-road use.
Key Features
- MaxTrac part number 813360 for easy reference when ordering
- Fabricated steel construction for strength under load
- 6 degree angle design for correct pinion alignment at the new ride height
- Delivers 6 inches of rear lift
- Powder coated gray finish resists corrosion
- Sold as a pair for both sides of the rear axle
Fitment
MaxTrac 813360 fits the applications listed below.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2020 | Ford | F-250 Super Duty | 2WD/4WD |
| 2009-2020 | Ford | F-350 Super Duty | 2WD/4WD |
Specifications
| Detail | Value |
|---|---|
| MaxTrac Part Number | 813360 |
| Lift Height | 6 in Rear |
| Block Angle | 6 Degree |
| Material | Fabricated Steel |
| Finish | Powder Coated Gray |
What's Included
- MaxTrac 813360 2 rear lift blocks
About MaxTrac
The 813360 is manufactured to MaxTrac's tolerances, and MaxTrac Suspension builds fabricated lift blocks for heavy duty trucks that need extra rear clearance without changing leaf spring geometry.
Related Parts
- MaxTrac 17-19 Ford F-250/350 4WD Dually 2in Rear Block & U-Bolt Lift Kit
- MaxTrac 05-19 Ford F-250/350 4WD Front Shock Extenders
FAQ
How much lift does this block provide
It provides 6 inches of rear lift.
Are U-bolts included with this lift block
No, U-bolts are not included and must be purchased separately.
Do I need to remove my factory block before installing this one
Yes, the factory block must be removed before installing this MaxTrac lift block.
Can I stack this block on top of my factory block
No, stacking lift blocks is not safe and is not recommended on F-250 or F-350 trucks.
Why does this block have a 6 degree angle
The angle keeps the rear pinion aligned correctly at the new, taller ride height.
Does this block fit both F-250 and F-350 models
Yes, it is designed to fit both F-250 and F-350 Super Duty trucks in this year range.
What material is this lift block made from
It is fabricated from steel and finished in gray powder coat.
Will I need longer brake lines after installing this lift block
A 6 inch lift can require extended brake lines depending on the rest of your lift setup, so check total lift height before finalizing your parts list.
Installation
- Before beginning installation of MaxTrac 813360, support the rear axle and remove the factory rear lift block
- Install the MaxTrac fabricated lift block in its place
- Install correctly sized U-bolts to secure the block to the axle and leaf springs
- Torque all hardware to spec and verify driveline and brake line clearance
