A Ringless Hybrid Twin-Disc Clutch for GM LS and Mustang Modular Swaps

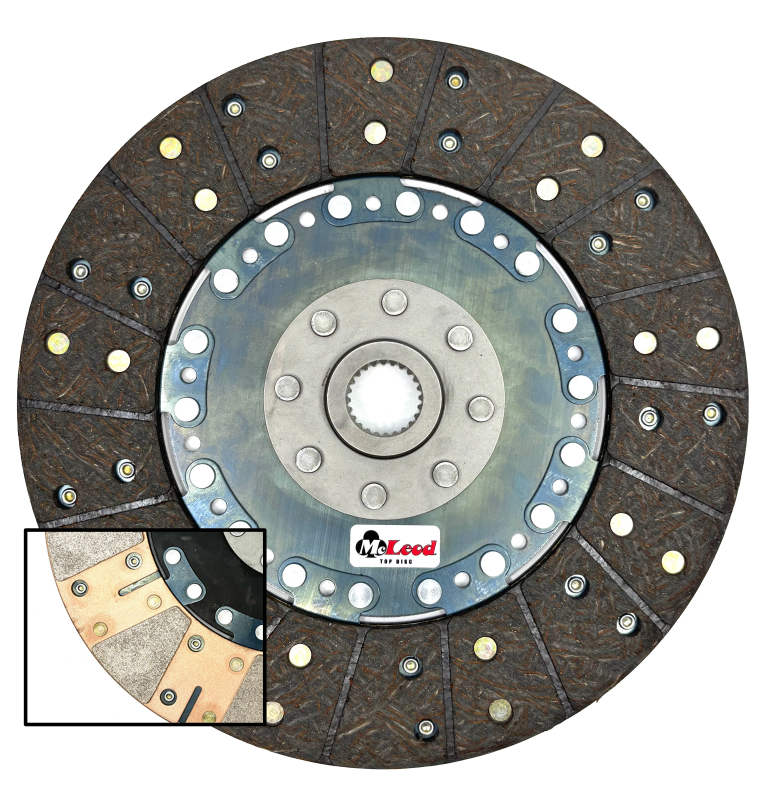

The McLeod RST HD Twin with metric ring is designed to bolt to an existing LS1/LS6 flat-style flywheel or a compatible Mustang 4.6/5.0L flywheel rather than including a dedicated flywheel of its own. It combines full-face organic friction on one disc face with segmented ceramic on the other for a hybrid friction combination rated up to approximately 950 horsepower, using a 1-1/8 in. x 26-spline input shaft.
Key Features
- Hybrid twin-disc design, organic facing on one side and segmented ceramic on the other
- Rated for up to approximately 950 horsepower
- Bolts to an existing compatible flywheel, no flywheel included
- 1-1/8 in. x 26-spline input shaft fitment
- Includes alignment tool for centering the clutch discs during installation
Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 1997-2015 | Chevrolet | Corvette | LS1/LS2/LS3/LS6/LS7 (flat-style flywheel only) |
| 2001-2017 | Ford | Mustang | 4.6L/5.0L |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 6912-07MD |
| Flywheel | Not included, bolts to existing compatible flywheel |
| Flywheel compatibility | LS1/LS6 flat-style only, not compatible with LS2/LS3/LS7 recessed flywheels |
| Input shaft | 1-1/8 in. x 26-spline |
| Disc diameter | 9.687 in. |
| Disc material | Organic and segmented ceramic hybrid |
| Horsepower rating | Approximately 950 hp |
| Crank relief requirement | 6.250 in. or smaller on Mustang applications |

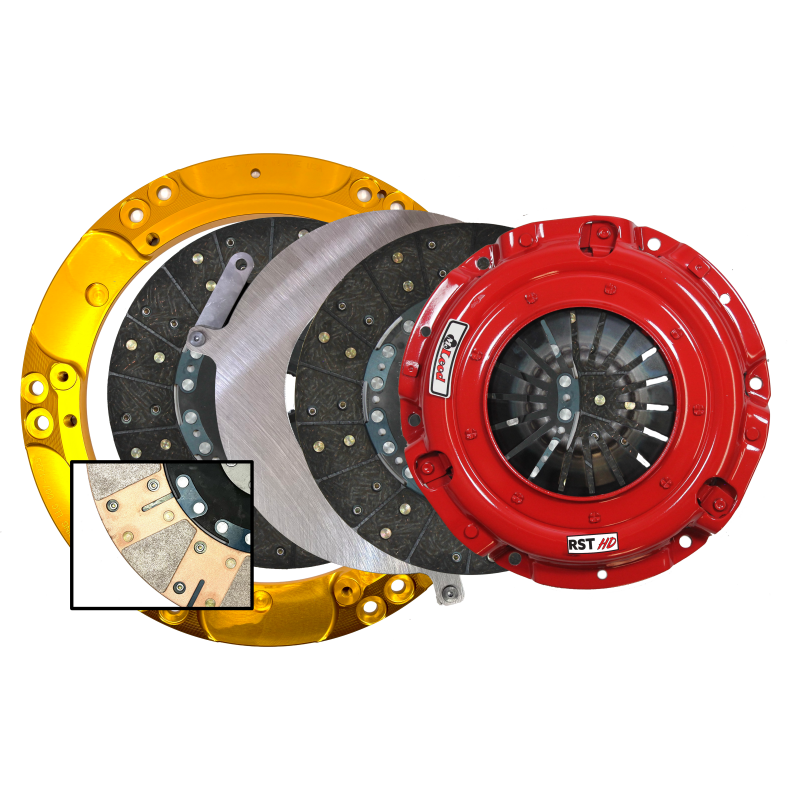

What's Included
- Pressure plate
- 2 hybrid organic/ceramic clutch discs
- Floater plate

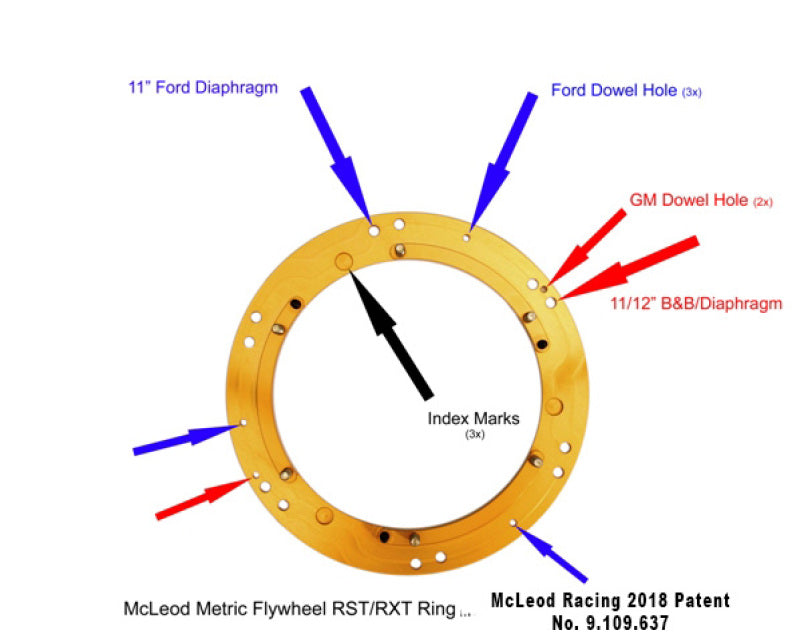

- Adapter ring

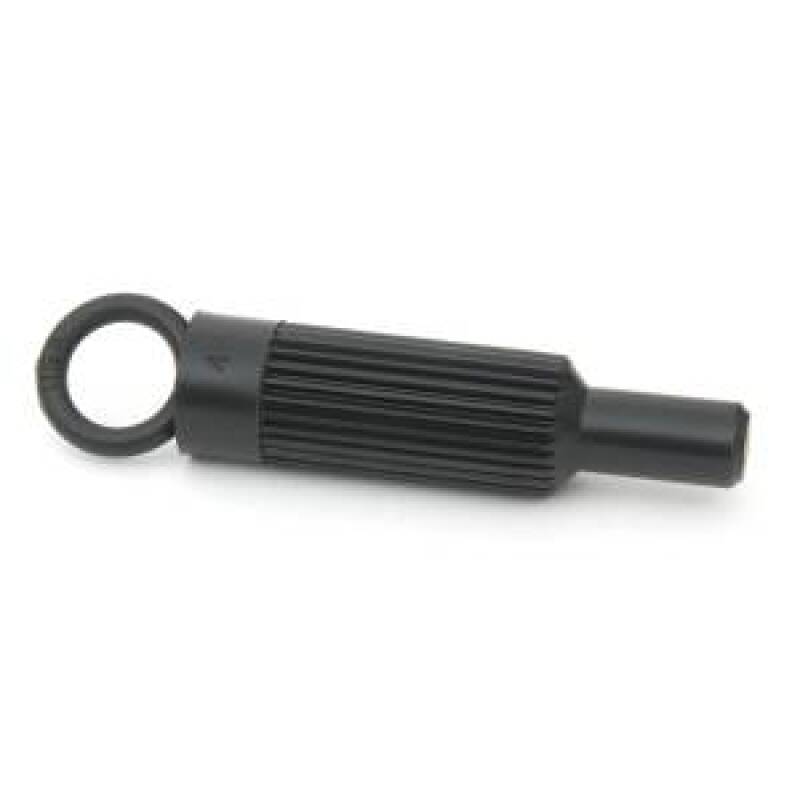

- Alignment tool
About McLeod Racing
McLeod Racing has manufactured clutches and driveline components for performance and racing applications since 1961, supplying twin-disc and single-disc clutch systems used across drag racing, road racing, and high-performance street builds.
FAQ
Does this kit include a flywheel?No, this metric ring version bolts to an existing compatible flywheel rather than including one.
Will this work with an LS2, LS3, or LS7 flywheel?No, this kit is designed for LS1/LS6 flat-style flywheels only and will not work with LS2/LS3/LS7 recessed flywheels.
What crank relief size does the Mustang application require?The factory flywheel's crank relief must be 6.250 in. or smaller for correct disc-to-flywheel contact on 2001.5-2017 Mustang 4.6/5.0L applications.
What input shaft spline does this kit use?1-1/8 in. with 26 splines.
What is the horsepower rating of this clutch?Approximately 950 horsepower.
Is this clutch suitable for daily street driving?The hybrid friction combination is designed to balance street drivability with increased holding capacity, though pedal feel will be firmer than a stock single-disc clutch.
Does this kit include an alignment tool?Yes, an alignment tool is included to help center the clutch discs during installation.
Can this be used in a Mustang with an aftermarket transmission swap?Yes, this part number is documented as compatible with aftermarket transmission applications on the Ford side, verify bellhousing and input shaft compatibility with your specific swap.
Installation Instructions
- Support the vehicle and remove the transmission per the vehicle service manual.
- Remove the factory flywheel, pressure plate, and clutch disc assembly.
- Inspect and resurface or replace the flywheel mounting surface if not using the included flywheel.
- Install the new flywheel (if included) and torque the flywheel bolts to specification using thread locker.
- Install the floater plate, clutch discs, adapter ring, and pressure plate using the supplied alignment tool to center the discs.
- Torque the pressure plate bolts in a star pattern to the specified torque value.
- Reinstall the transmission and bleed the hydraulic clutch system if equipped.
