Method Wheels Method MR103 Buggy Beadlock 15x4.5 -25mm Offset 5x205 160mm CB Raw Machined w/BH-H24100 Wheel
Method Wheels Method MR103 Buggy Beadlock 15x4.5 -25mm Offset 5x205 160mm CB Raw Machined w/BH-H24100 Wheel
Click to zoom in

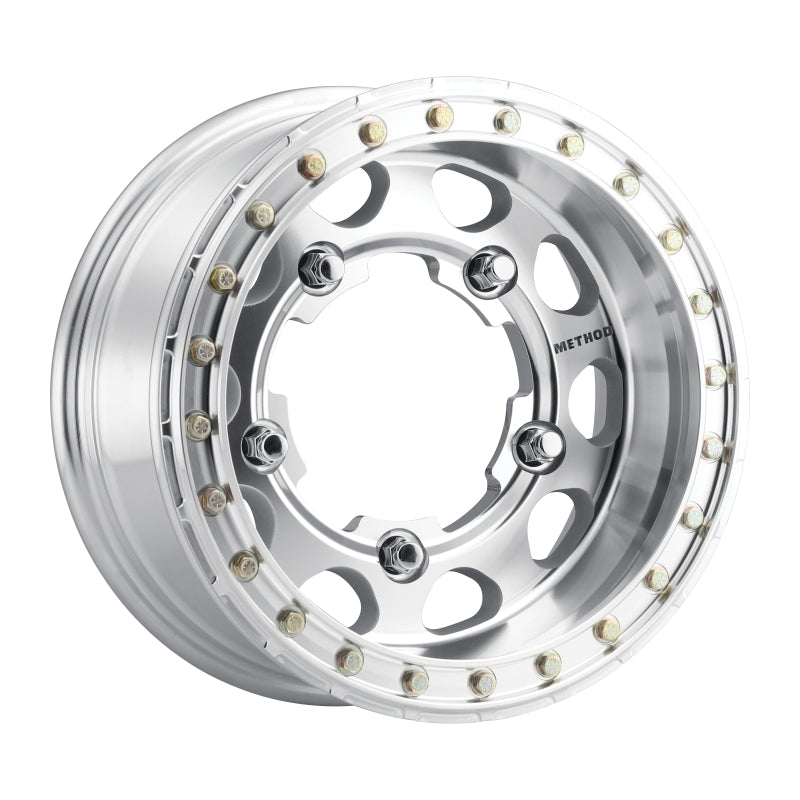

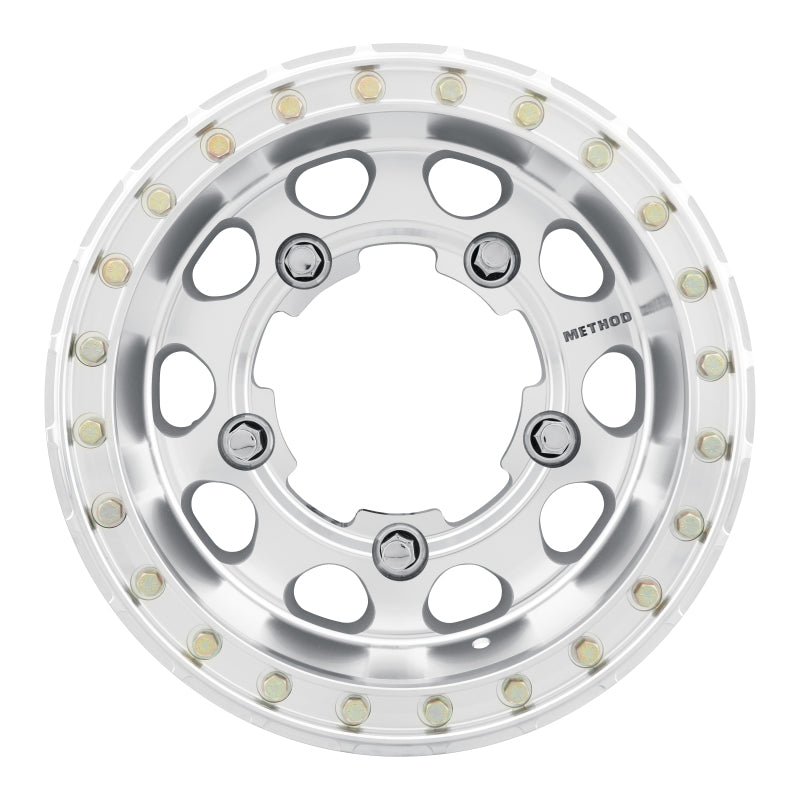

Method MR103 Buggy Beadlock 15x4.5 -25mm Offset 5x205 160mm CB Raw Machined w/BH-H24100 Wheel

Method Wheels
MRWMR10354519325B
191682017087
Wheels - Cast
20+ Units In Stock - Ships Next Business Day
$ 536.00
$ 536.00

SKU: MR10354519325B | UPC: 191682017087

Method MR103 Buggy Beadlock 15x4.5 -25mm Offset 5x205 160mm CB Raw Machined w/BH-H24100 Wheel for VW Dune Buggies 1950-1979

The Method MR103 Buggy Beadlock wheel sets the standard for off-road durability in 15x4.5 size. It fits VW dune buggies sand rails and custom rails with 5x205 bolt pattern and 160mm center bore. The -25mm offset delivers a planted stance for control on rough trails while the true beadlock design secures tires at low pressures.

Key Features

  • True Beadlock Design: Outer ring clamps tire bead to rim allowing safe low-pressure runs over rocks roots and ruts without debeading
  • -25mm Offset: Pushes wheel outward for wider track width improving cornering grip and rollover resistance in buggies
  • 5x205 Bolt Pattern 160mm CB: Direct bolt-on fit to VW Type 1 hubs and buggy axles with no adapters needed for centered secure mounting
  • Raw Machined Finish: Exposed aluminum with protective clear coat resists corrosion and chips from impacts while showing authentic race look
  • Included BH-H24100 Hardware: Black anodized Grade 8 bolts and ring kit for reliable assembly and long-term performance

Product Notes

  • Wheel constructed from A356 T6 heat-treated cast aluminum for strength-to-weight balance
  • Avoid cleaners with harsh acids to preserve machined surfaces
  • Special order item expect 3-5 business days processing

Installation Notes

  • Professional installation recommended.
  • Torque outer beadlock bolts to 100 in-lbs in star pattern then recheck after 50 miles
  • Uses 14x1.5mm lug nuts compatible with VW 5x205 pattern

This Part Fits

Year Make Model Submodel
1950-1979 Volkswagen Beetle Dune Buggy
1964-1980 Meyers Manx All
1960+ Custom Sand Rail 5x205 Hub
All Off-Road Buggy Short/Long Travel

Why Choose Method Race Wheels?

  • Proven in Baja 1000 and King of the Hammers races
  • Cast wheels built to endure high-impact off-road abuse
  • Engineered tolerances match OEM hubs for vibration-free ride

Frequently Asked Questions

  • Q: Will this wheel fit stock VW dune buggy hubs?
    A: Yes 5x205 bolt pattern and 160mm center bore match VW Type 1 Beetle hubs used in most dune buggies and sand rails
  • Q: What material and finish details?
    A: Made from A356 aluminum alloy T6 heat-treated with raw machined pockets and clear coat over entire wheel for protection
  • Q: What warranty coverage?
    A: Lifetime structural warranty on cast wheels covers defects in materials and workmanship under normal off-road use

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Single wheel in protective cardboard box 19x19x9 inches
  • Weight: 15.8 lbs per wheel
