SKU: MMCPKG-MUS-67 | UPC: 748354025651
Mishimoto 1967-1969 Ford Mustang 289/302 Cooling Package

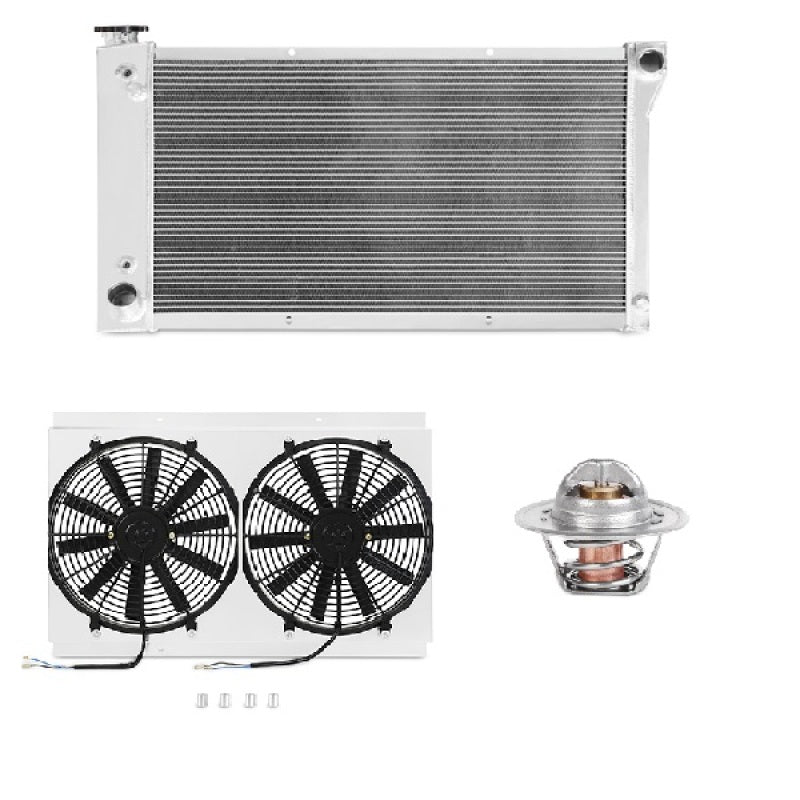

The Mishimoto 67-69 Ford Mustang 289/302 Cooling Package delivers a full cooling system upgrade for 1967-1969 Ford Mustangs and Mercury Cougars with 289 or 302 V8 engines across Base models with 4.7L/5.0L/5.8L displacements and transmissions like C4, C6, Toploader, FMX. This kit combines an all-aluminum radiator, dual electric fans, fan shroud, and thermal switch to drop coolant temperatures up to 30°F below stock during hard driving. Retain OEM fitment while gaining reliable heat management for street or track.
Key Features
- All-Aluminum Radiator MM-RAD-MUS67-67SL: 2-row core with 24.4 x 15.9 x 1.75-inch dimensions and 60% greater volume than OEM for maximum heat dissipation and corrosion resistance.
- Dual 13-Inch Electric Fans MMFAN-MUS-67: Combined 2200 CFM airflow pulls 32 amps total to force air through radiator at low vehicle speeds or idle.
- Aluminum Fan Shroud MMSHROUD-MUS67-67: Directs airflow for 8% efficiency gain and prevents fan contact with fins.
- Thermal Switch Controller MMTSC-MUS67-67: Activates fans at 185°F and deactivates at 175°F for automatic temperature control without constant power draw.
- Direct-Fit Design: Bolts into factory radiator mounts on 1967-1969 Mustang and Cougar with no cutting or modifications required.
Product Notes
- Compatible with stock or aftermarket mechanical fans if converting to electric setup.
- Flush system recommended before install to remove debris for peak performance.
- Oversized item ships via freight with liftgate service option available.
Installation Notes
- Professional installation recommended.
- Remove OEM radiator, fans, and shroud. transfer hoses and mounts directly to new components in 2-4 hours.
- Uses factory lower hose. upper hose may require trimming for perfect fit on some Cougar models.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967-1969 | Ford | Mustang | Base |
| 1967-1969 | Mercury | Cougar | Base |
Why Choose Mishimoto?
- Proven track record in motorsports cooling for classic and modern vehicles.
- Hand-welded aluminum construction withstands high pressures and temperatures.
- Engineered and dyno-tested in the USA for precise fit and real-world performance gains.
Frequently Asked Questions
-
Q: Will this fit 1967-1969 Mustang with C4 automatic or Toploader manual?
A: Yes, fits all listed 4.7L/5.0L/5.8L Base Mustangs and Cougars with C4, C6, Toploader, FMX, FX, MX, T86E, 150T, 160T, 170F transmissions. -
Q: What materials are used in the radiator and shroud?
A: Full 6061 aluminum construction with brazed core tubes and pressed end tanks for durability and lightweight design at 38 lbs total package weight. -
Q: What is the warranty and install support?
A: Lifetime warranty on radiator. includes CAD drawings and install videos for DIY or pro setup.
Shipping & Handling
- Method: Ground freight for oversized items
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed at 42 x 24 x 12 inches
- Weight: 38 lbs
