Mishimoto 83-87 Toyota Corolla Aluminum Fan Shroud Kit

Mishimoto
MISMMFS-AE86-83
748354800173
Fans & Shrouds
14 Units In Stock - Ships Next Business Day
$ 279.00 $ 253.95
$ 253.95

SKU: MMFS-AE86-83 | UPC: 748354800173

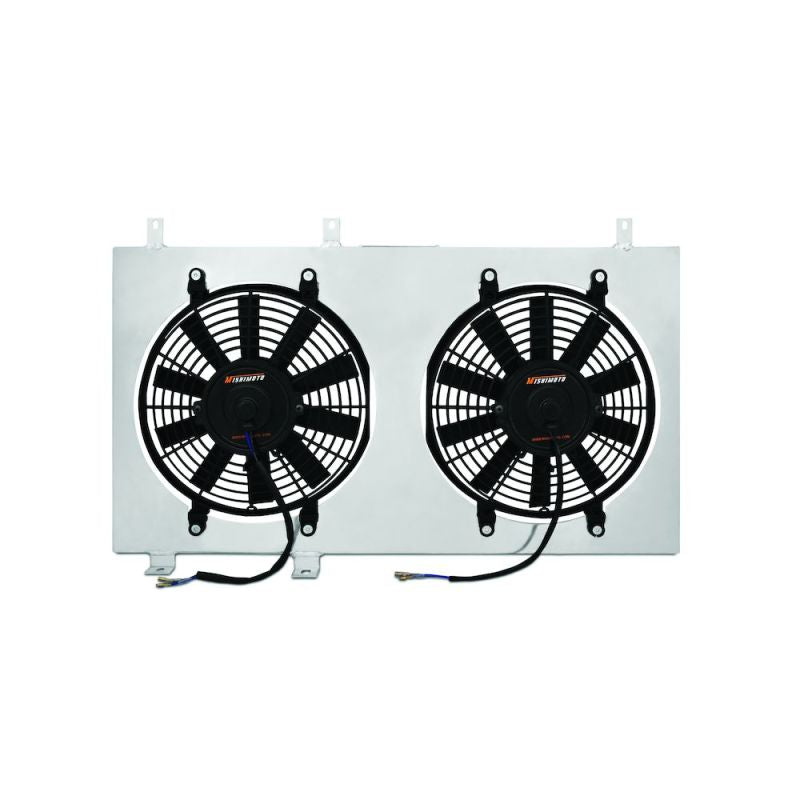

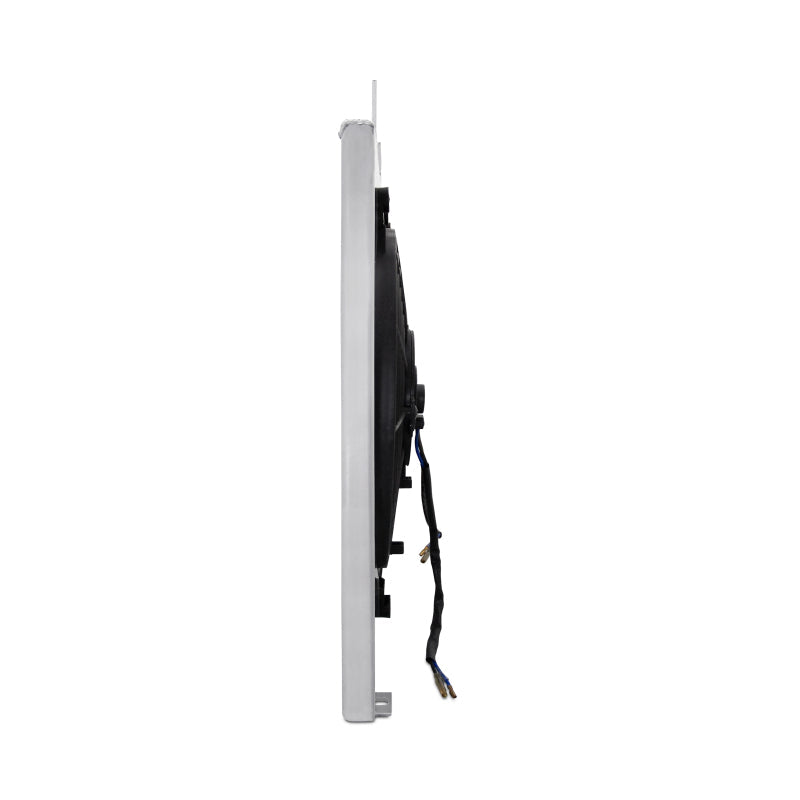

Mishimoto 1983-1987 Toyota Corolla Aluminum Fan Shroud Kit

The Mishimoto Aluminum Fan Shroud Kit fits 1983-1987 Toyota Corolla models including AE86 chassis. This direct-fit upgrade directs airflow straight to the radiator for faster heat expulsion and cooler engine temps during track days or hot weather. Lighter weight improves handling while securing fan blades to protect vital engine parts.

Key Features

  • Lightweight Aluminum Build: Weighs only 3.5 lbs to cut front-end mass versus stock plastic or steel shrouds for sharper response
  • Optimized Airflow Path: Channels air through radiator core to drop engine temperatures by up to 20 degrees under load
  • Fan Blade Lockdown: Mounts fan firmly to block contact with shrouds, pulleys or belts and avoid costly repairs
  • Exact Bolt-On Fit: Matches OEM mounting points on 1983-1987 Corolla with no cutting or fabrication needed
  • High-Heat Durability: Powder-coated aluminum resists corrosion and warping for years of daily or race use

Product Notes

  • Works with stock fans, Mishimoto radiators or most aftermarket units
  • Handles high-boost setups and spirited driving without failure
  • Ships complete with mounting hardware and instructions

Installation Notes

  • Professional installation recommended.
  • Bolts to factory radiator supports using stock hardware in under 1 hour
  • Verify fan blade diameter matches stock 14-inch size

This Part Fits

Year Make Model Submodel
1983-1984 Toyota Corolla Base
1983-1987 Toyota Corolla DLX
1987 Toyota Corolla FX
1987 Toyota Corolla FX16
1987 Toyota Corolla FX16 GTS
1984-1987 Toyota Corolla LE
1985-1986 Toyota Corolla LE Limited
1984-1987 Toyota Corolla Sport DLX
1985-1987 Toyota Corolla Sport GTS
1984-1987 Toyota Corolla Sport SR5
1983 Toyota Corolla SR5

Why Choose Mishimoto?

  • Proven in drift, track and street builds by AE86 owners worldwide
  • CNC-machined for precise tolerances and zero leaks
  • Backed by limited lifetime warranty for peace of mind

Frequently Asked Questions

  • Q: Does this shroud fit AE86 Corolla models like Sport GTS?
    A: Yes, direct fit for all 1983-1987 Toyota Corolla submodels listed including AE86 FX16 GTS, Sport SR5 and LE variants
  • Q: What material and finish does it use?
    A: Mandrel-bent aluminum tubing with black powder coat for strength, light weight and road salt resistance
  • Q: What warranty covers this part?
    A: Mishimoto provides a limited lifetime warranty against defects in materials or workmanship

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Protective Mishimoto box, 28 x 18 x 5 inches
  • Weight: 3.5 lbs product, 5 lbs shipping
