Cooling Fans & Shrouds

Cooling Fans & Shrouds

Cooling fans and fan shrouds are critical components of the engine cooling system that pull air through the radiator core when the vehicle is stopped or moving too slowly for ram airflow to maintain adequate coolant temperature, and their correct sizing and placement determines whether the cooling system can handle sustained low-speed operation, towing, drag racing staging lanes, or stop-and-go traffic in hot ambient conditions. Electric fan upgrades from Mishimoto, SPAL, and Perma-Cool replace the parasitic engine-driven mechanical fan on performance builds with high-CFM electric units that draw air only when needed, freeing horsepower previously lost to spinning the factory viscous fan clutch and reducing the temperature differential across the radiator core more precisely. Fan shrouds direct the entire swept area of the fan blade across the radiator face rather than allowing air to bypass the cooling core at the blade tips, which significantly improves thermal efficiency even when the fan itself is not upgraded. Replacement and upgraded fan assemblies are available for factory cooling system restoration on aging vehicles and for complete custom cooling system fabrication on engine swap and race builds.

Popular Upgrades

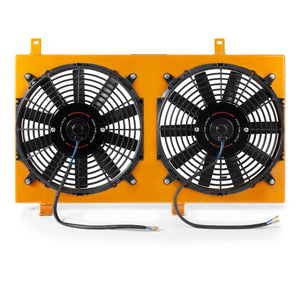

Top-selling fan and shroud products include Mishimoto dual 12-inch electric fan kits for Dodge Challenger, Charger, and Jeep Grand Cherokee that replace factory mechanical fans and provide better high-temperature cooling capacity for track day and high-output street use, SPAL brushless pusher and puller fan assemblies in 10 to 16-inch diameters for custom radiator builds and auxiliary cooling applications, Perma-Cool universal high-performance electric fans for performance engine bay upgrades, and Ron Davis and CSF aluminum radiator and shroud combo kits for Camaro, Corvette, and Mustang builds where the factory radiator is undersized for the engine upgrade. Flex-a-lite fan controllers and temperature probes allow electric fan activation temperature to be precisely calibrated rather than relying on the factory coolant temperature switch threshold.

Performance and Handling

Replacing the engine-driven mechanical fan with a high-CFM electric fan on a naturally aspirated or forced induction street performance build typically recovers 10 to 25 horsepower at the rear wheels on a dynamometer because the mechanical fan absorbs that power directly from the crankshaft even when the engine is producing heat efficiently without the fan's assistance. Properly shrouded electric fans on a full-face radiator produce 20 to 30 percent more airflow across the core compared to unshrouded fans of equivalent blade size because shrouding eliminates recirculation of hot air from behind the fan back to the face of the radiator through the tip gaps. On drag racing builds that idle or stage in high-ambient-temperature pit lanes, an electric fan that activates at 190 degrees and shuts off at 175 degrees prevents heat soak more precisely than a mechanical fan that runs continuously at idle rpm regardless of coolant temperature.

What size electric fan do I need for my radiator?

Electric fan sizing starts with measuring the radiator core's face area and matching a fan or fan pair that covers at least 70 percent of that area with overlapping blade sweep, as larger coverage reduces the uncooled radiator area that relies entirely on ram airflow at speed. A single 16-inch fan produces approximately 2000 to 3500 CFM depending on motor quality and blade design, which is adequate for most naturally aspirated 4 to 6-cylinder and mild V8 applications. Dual 12-inch or dual 14-inch fan configurations are preferred on V8 performance builds because they provide better coverage on wide radiator cores and allow each fan to be staged independently for temperature control precision.

Do I need a fan shroud if I have an electric fan?

Yes, a fan shroud dramatically improves the performance of an electric fan installation by eliminating tip bypass air that would otherwise circulate from the high-pressure zone behind the fan back to the low-pressure zone in front of the radiator through the gap between the fan blade and the radiator face. Without a shroud, an electric fan only pulls air through the section of the radiator core directly behind the swept blade area, leaving the corners and edges of the core dependent on ram airflow alone. Most performance fan and shroud combo kits include a shroud sized for the specific radiator, and building or adapting a shroud for a custom installation is strongly recommended to achieve the full benefit of the fan upgrade.

Why These Parts Fit Right

Fan and shroud products in this collection are listed with radiator face dimension compatibility, blade diameter, CFM rating, and mounting hardware specifications to confirm correct fitment before ordering. Mishimoto, SPAL, and Perma-Cool product pages include vehicle-specific fitment guides for popular applications. Fast shipping and expert support are available for any cooling fan selection or installation question.
