Route Your Fuel or Fluid Lines Around Tight Engine Bay Obstacles

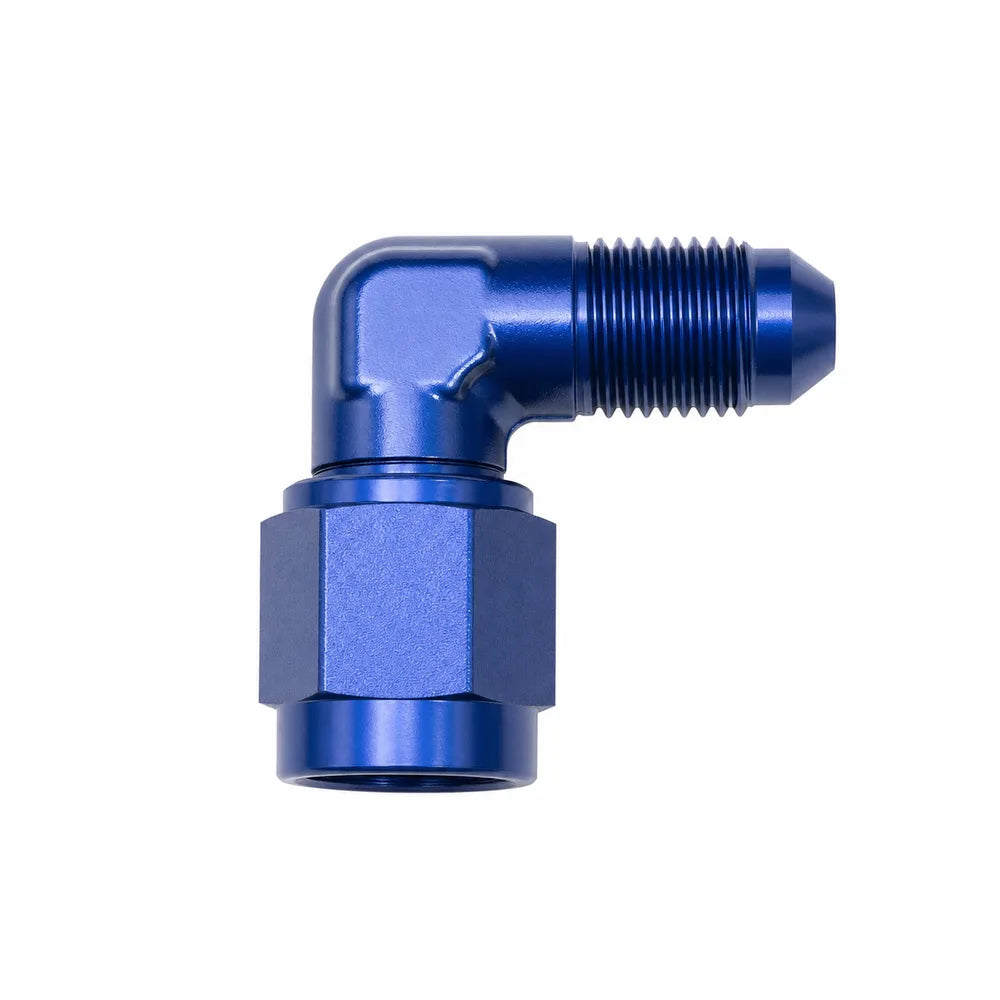

The 16196-90 is a 3AN 90 degree swivel fitting in blue anodized finish, letting you make a sharp direction change in a hose connection to clear obstructions in tight engine bay or fuel system routing.
Key Features
- 3AN size fitting
- 90 degree swivel angle for tight direction changes
- Blue anodized aluminum finish
- Swivel design allows rotation after installation for easier hose alignment
- Lightweight aluminum construction
Specifications
| Detail | Value |
|---|---|
| MPN | 16196-90 |
| UPC | 682018121465 |
| Size | 3AN |
| Angle | 90 Degree |
| Color | Blue |
What's Included
- 1x Nitrous Express 3AN 90 Degree Swivel Fitting (16196-90)
About Nitrous Express
Nitrous Express manufactures nitrous oxide systems, fuel fittings, and related hardware built for performance and racing applications, offering a range of AN fitting sizes, angles, and finishes for custom line routing.
FAQ
What is the Nitrous Express 16196-90?The 16196-90 is a 3AN 90 degree swivel fitting in blue used to make a sharp direction change in hose routing around tight obstacles.
What size line does this fitting use?This fitting is sized for 3AN lines.
Can this fitting rotate after installation?Yes, it uses a swivel design that allows rotation for easier alignment of the connected hose.
What material is this fitting made from?It is constructed from lightweight aluminum with a blue anodized finish.
What angle is this fitting?This fitting is a 90 degree angle.
Will this fit my fuel system?It is compatible with any system using standard 3AN fittings and hose ends.
Is thread sealant required for installation?Follow your hose end manufacturer's recommendation for sealant or thread tape depending on the connection type.
Do I need a wrench to install this?Yes, an appropriately sized wrench is recommended to properly tighten the fitting.
Install Instructions
- Thread the fitting onto the mating connection by hand to start.
- Tighten with an appropriately sized wrench to the recommended torque.
- Rotate the swivel portion to align the hose in the desired direction.
- Connect and tighten the hose end to the fitting.
