Tubular Front Subframe Tie Brace for 1982-1992 Camaro and Firebird F-Body

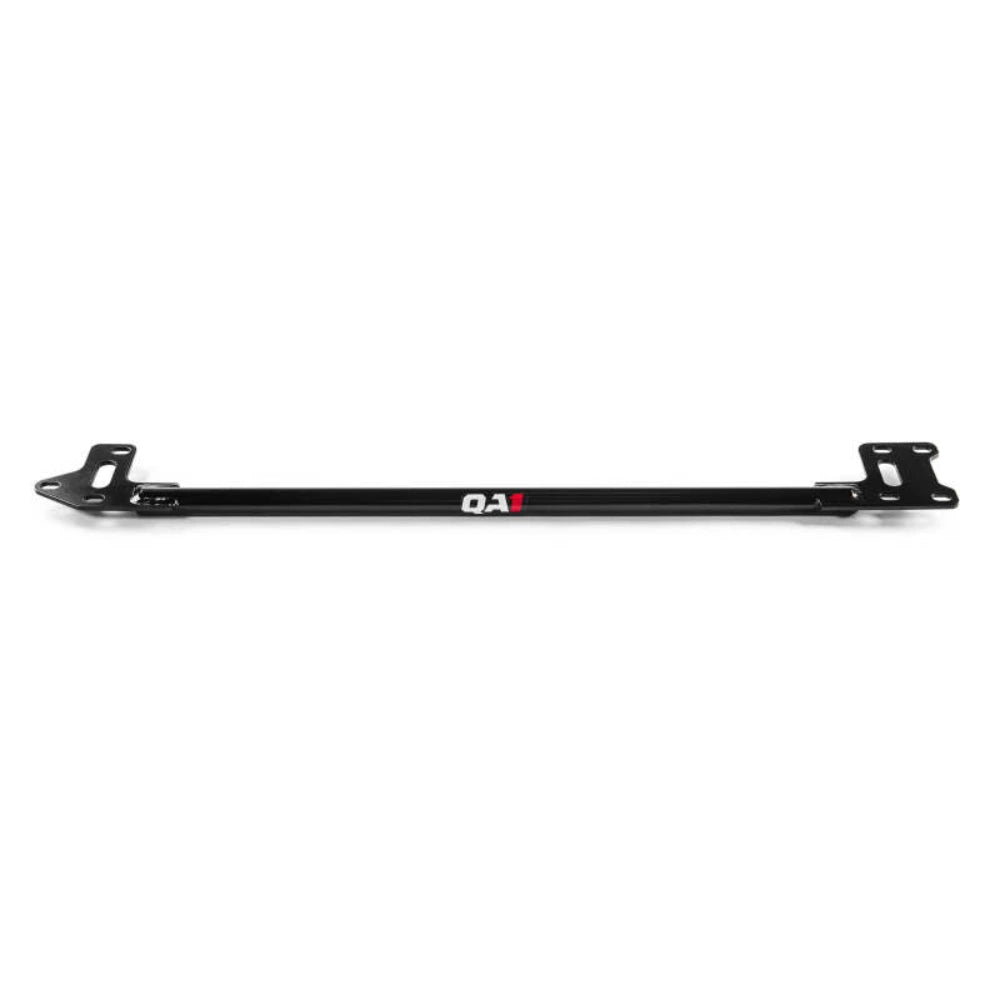

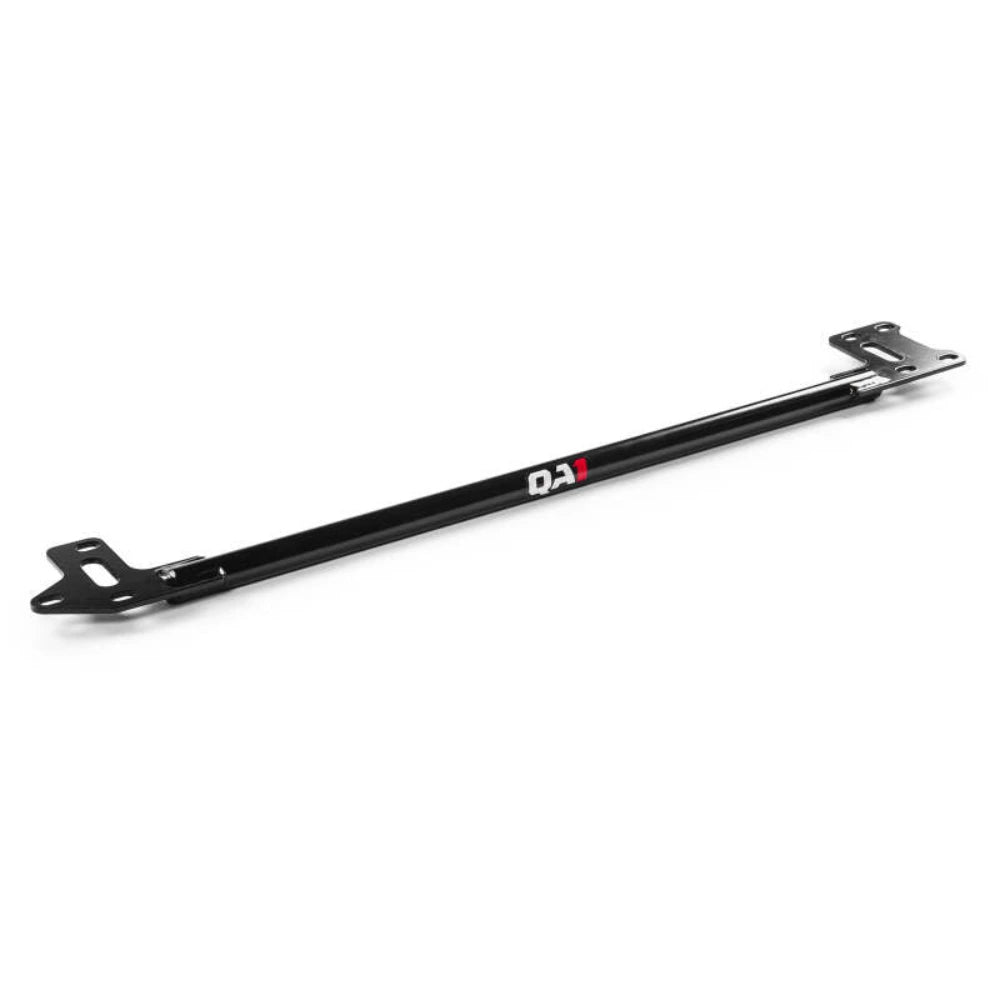

The QA1 QAP52122 Wonder Bar is a bolt-in tubular steel front subframe brace for 1982-1992 Chevrolet Camaro and Pontiac Firebird F-body vehicles. The QAP52122 ties the left and right front subframe sections together above the front sway bar mounting position, significantly reducing chassis flex during hard cornering, acceleration, and braking. The brace is fabricated from .120-inch wall square steel tubing with .250-inch CNC-machined steel mounting brackets, fully MIG welded, and finished in satin black powder coat. The QAP52122 is made in the USA by QA1 and installs using existing factory mounting holes with no drilling required on most 1985-1992 applications. On 1982-1984 F-bodies, existing mounting holes may require slotting for proper fit.
Key Features
- Bolt-in tubular front subframe brace for 1982-1992 Camaro and Firebird F-body
- Ties left and right front subframe sections to reduce chassis flex at hard cornering loads
- .120-inch wall square steel tubing for rigid, lightweight construction
- .250-inch CNC-machined steel mounting brackets for precision fit
- Fully MIG welded and finished in satin black powder coat
- Made in the USA by QA1
- Installs using factory mounting holes on 1985-1992 applications (1982-1984 may require slotting)
This Part Fits
| Year Range | Make | Model |
|---|---|---|
| 1982-1992 | Chevrolet | Camaro |
| 1982-1992 | Pontiac | Firebird |
Specifications
| Detail | Value |
|---|---|
| Part Number | QAP52122 |
| Type | Front Subframe Tie Brace |
| Material | Square Steel Tubing |
| Wall Thickness | .120 in. |
| Bracket Thickness | .250 in. CNC-machined steel |
| Welding | MIG Welded |
| Finish | Satin Black Powder Coat |
| Country of Manufacture | USA |
| Installation | Bolt-in, uses existing factory holes (1985-1992); may require slotting on 1982-1984 |
What's Included
- 1x QAP52122 Wonder Bar front subframe tie brace
- All required mounting hardware
About QA1
QA1 is an American manufacturer of suspension, driveshaft, and chassis components based in Lakeville, Minnesota. Known for precision engineering and domestic manufacturing, QA1 produces the QAP52122 Wonder Bar as part of its F-body chassis improvement lineup, designed for enthusiasts building street performance and track-capable Camaro and Firebird F-body vehicles.
FAQ
What is the QAP52122?The QAP52122 is the QA1 Wonder Bar front subframe tie brace for 1982-1992 Chevrolet Camaro and Pontiac Firebird, a bolt-in tubular steel brace that ties the left and right front subframe sections together to reduce chassis flex during performance driving.
Does QAP52122 fit both Camaro and Firebird?Yes. The QAP52122 fits both 1982-1992 Chevrolet Camaro and 1982-1992 Pontiac Firebird, as both vehicles share the same GM F-body platform and front subframe geometry during this generation.
Is QAP52122 a true bolt-in install?On 1985-1992 F-body vehicles, the QAP52122 installs using existing factory mounting holes with no drilling required. On 1982-1984 cars, existing mounting holes may require slotting for proper positioning of the brace brackets.
Where does QAP52122 mount relative to the front suspension?The QAP52122 mounts above the front sway bar, tying the left and right front subframe rails together. This location captures torsional flex from hard cornering and braking without interference with the sway bar or steering components.
What problem does QAP52122 solve on F-body cars?The F-body front subframe flexes under lateral and longitudinal loads, which can cause inconsistent handling and steering feel during track use or aggressive street driving. The QAP52122 significantly reduces this flex, improving front-end rigidity and handling precision.
What finish does QAP52122 have?The QAP52122 is powder coated in satin black, which provides corrosion resistance and a clean appearance in the engine bay or undercarriage where the brace is installed.

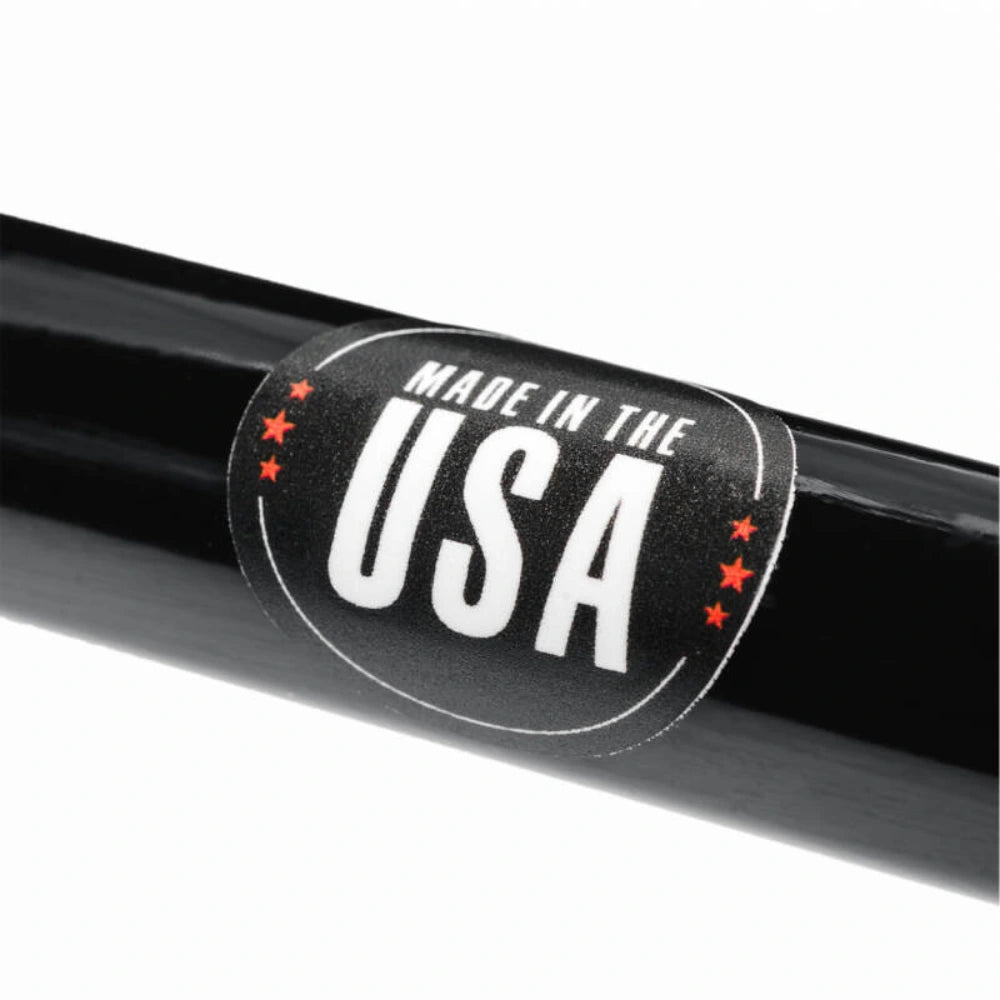

Is QAP52122 made in the USA?Yes. QA1 manufactures the QAP52122 Wonder Bar in the United States at its Lakeville, Minnesota facility.
Is QAP52122 compatible with aftermarket sway bars?The QAP52122 mounts above the sway bar position and does not replace or directly interface with the front sway bar. It is generally compatible with aftermarket front sway bars, but verify clearance with large-diameter aftermarket bars before purchase.
Installation Instructions
- Safely lift and support the front of the vehicle to gain undercarriage access
- Locate the existing factory mounting holes on the left and right front subframe sections above the sway bar
- For 1982-1984 vehicles: slot the existing holes as needed to accept the QAP52122 brackets
- Position the QAP52122 brace, aligning both brackets to the factory holes
- Install the included hardware hand-tight
- Verify the brace is level and does not contact the sway bar or steering components
- Torque all hardware to specification
- Lower the vehicle and inspect clearances with the suspension loaded
Proposition 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
