Ram 1500 TRX 2021-2023 Street Challenge Front Brake Rotors Slotted or Drilled

Track Ready Stopping Power Built for the TRX

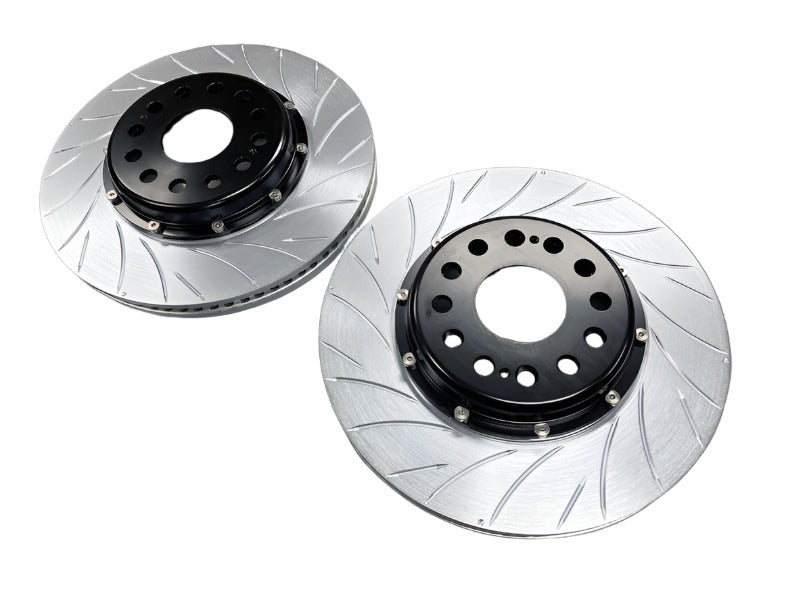

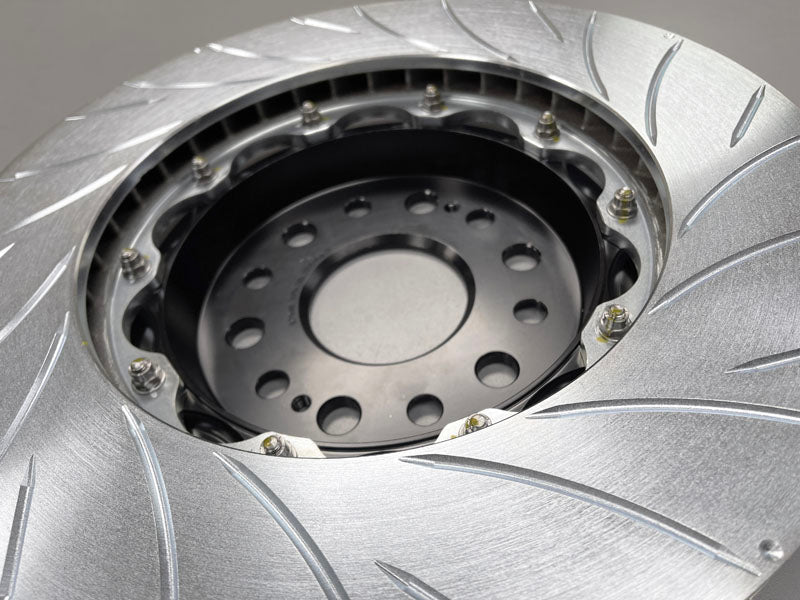

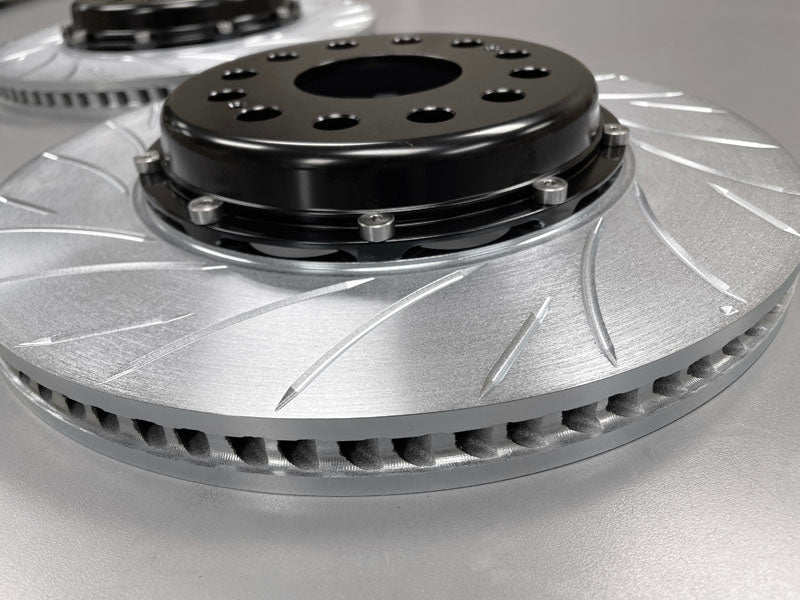

The Rotora RDK.67082.1S Street Challenge front rotor kit was engineered specifically for the 2021 to 2023 Ram 1500 TRX, giving the supercharged Hellcat powered truck a rotor upgrade that matches its performance ambitions. Each kit uses a two piece directional disc design with a forged aluminum hat to cut unsprung weight while adding thermal capacity for repeated hard stops. Available in slotted or cross drilled surface patterns, the RDK.67082.1S is a direct bolt on replacement that works with the factory master cylinder, ABS, and traction control systems.

Key Features

• RDK.67082.1S two piece directional vented disc rings engineered for the Ram 1500 TRX front axle

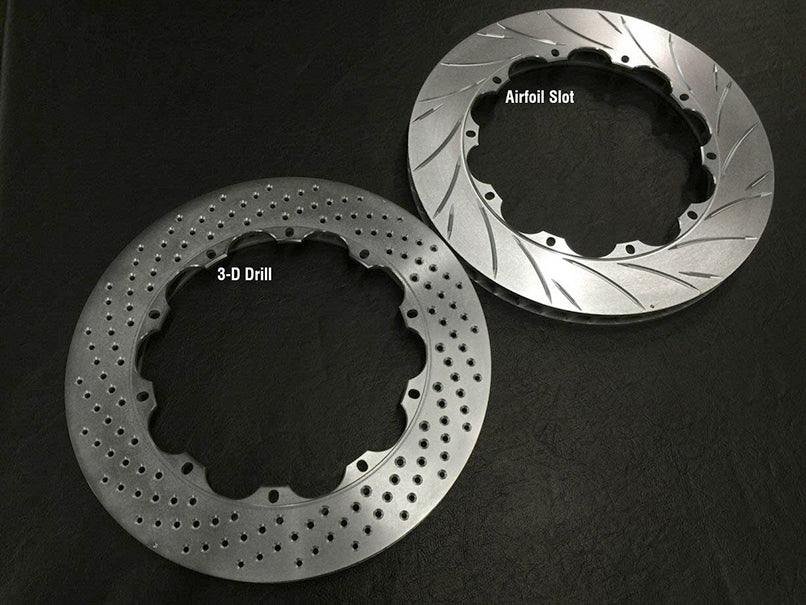

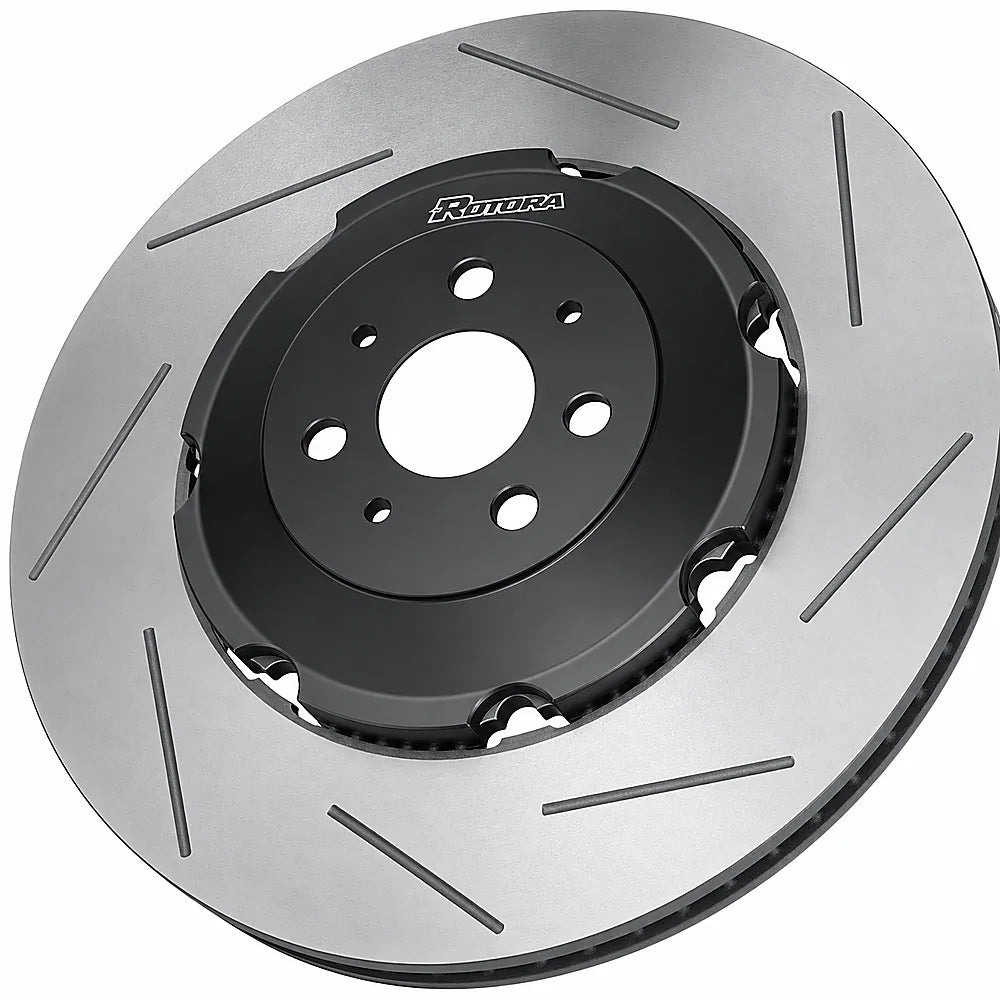

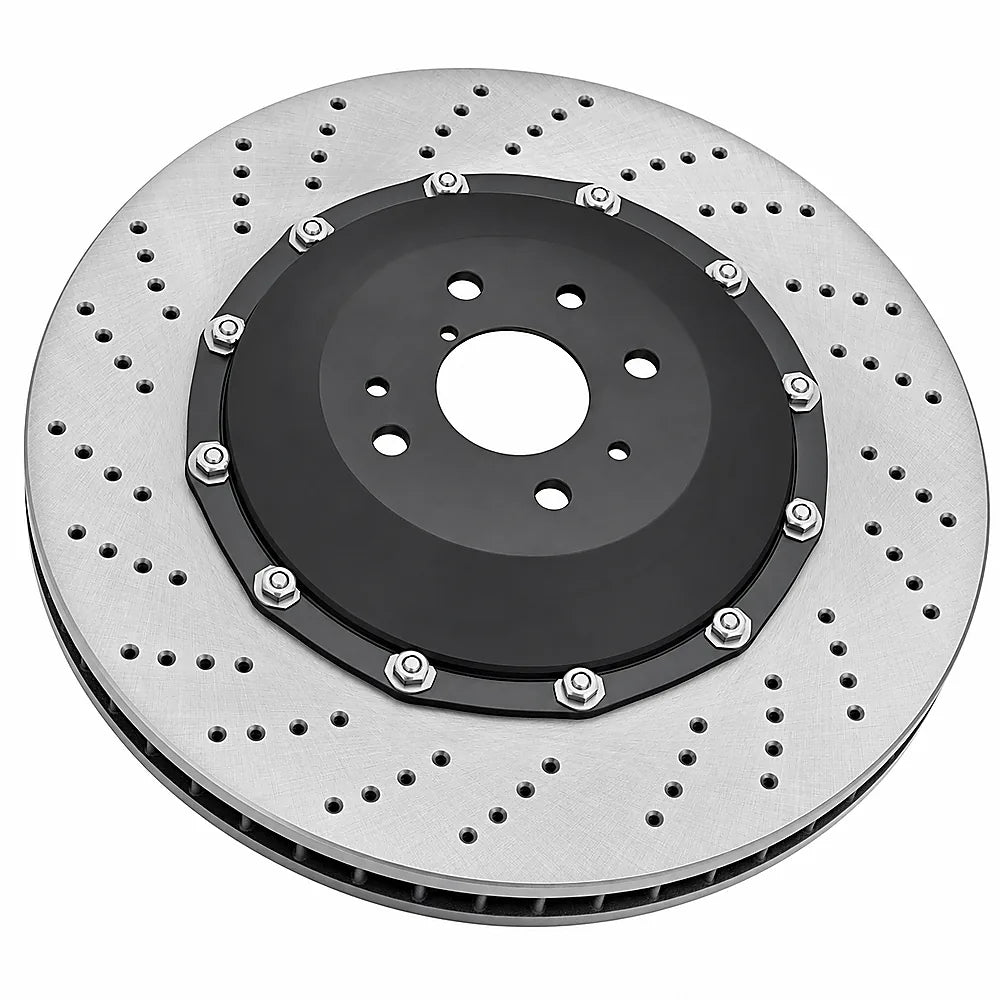

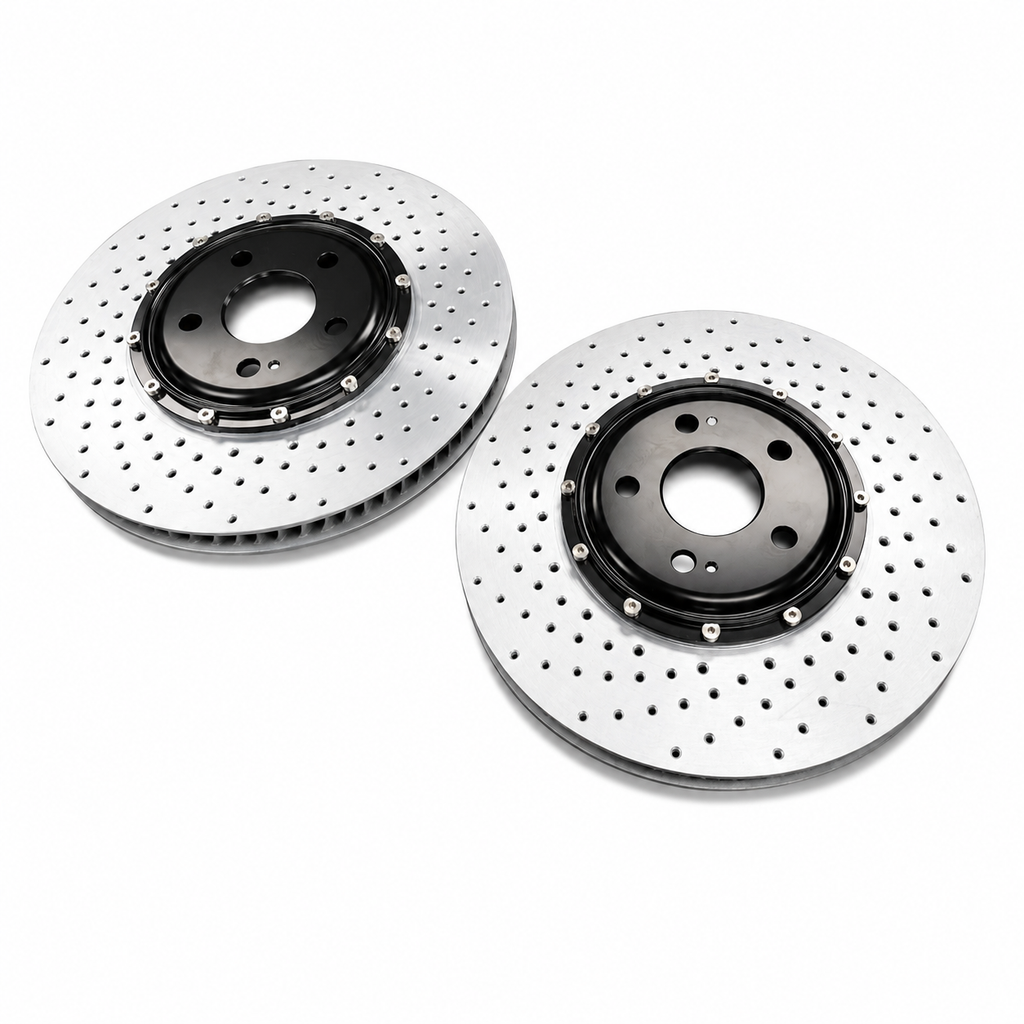

• Choice of slotted or cross drilled rotor face for cooling and debris clearing under heavy braking
• Heat treated discs with anti corrosion zinc plating to resist rust and staining

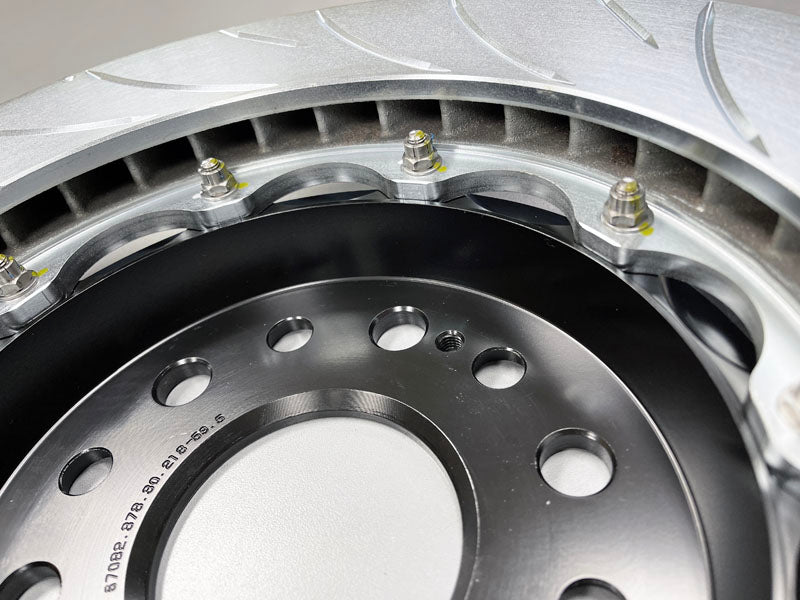

• Forged 6061-T6 aluminum hat with black anodized finish to reduce rotational mass
• Anti rattle float drive hardware allows the disc to expand and contract under extreme heat
• Fully compatible with the factory brake booster, ABS, and traction control on the TRX
• Direct bolt on installation with no cutting or permanent modification required

Fitment

Specifications

What's Included

• Two RDK.67082.1S directional vented rotors for the front axle
• Two forged aluminum 6061-T6 hats with black anodized finish
• Stainless steel anti rattle float drive mounting hardware
• All hardware needed to bolt the rotor assembly onto the factory hub

About Rotora

Rotora is a worldwide designer and manufacturer of high performance braking systems, producing forged calipers, two piece rotors, stainless brake lines, and pad compounds for street and track applications. The Street Challenge line pairs oversized directional discs with lightweight forged hats to increase thermal capacity and brake torque while remaining fully compatible with the vehicle factory brake hydraulics, so RDK.67082.1S owners get a bolt on upgrade without chasing custom master cylinder tuning.

Related Parts

• Ram 1500 TRX 2021-2023 Street Challenge Rear Brake System
• Ram 1500 TRX 2021-2023 Front Stainless Steel Brake Lines
• Ram 1500 TRX 2021-2023 Rear Stainless Steel Brake Lines
• Ram 1500 TRX 2021-2023 HD Challenge Front Brake System

Frequently Asked Questions

The RDK.67082.1S is a Rotora Street Challenge front rotor kit built specifically for the 2021 to 2023 Ram 1500 TRX. It is a two piece directional disc with a forged aluminum hat, available in slotted or cross drilled surface finishes for improved cooling and pad bite.

Yes, the RDK.67082.1S bolts directly to the factory hub and caliper mounting points, so a leveling kit or modest lift does not affect fitment as long as the factory wheel offset and caliper clearance are maintained.

New pads are not required if your current pads have plenty of life left, but Rotora recommends bedding in new rotors with pads that are in good condition to get an even transfer layer and avoid uneven wear.

Slotted rotors clear gas and debris from the pad surface and hold up well under sustained heavy use, while cross drilled rotors offer strong initial bite and cooling for street driving. Many owners choose slotted for track use and drilled for daily street performance.

Yes, the RDK.67082.1S is designed to work with the stock master cylinder, ABS, and traction control systems on the Ram 1500 TRX without any calibration changes.

A standard socket set, torque wrench, and a way to safely lift and support the truck are needed. Most installers complete the front rotor swap in under an hour per side using basic hand tools.

Professional installation is not required for anyone comfortable with basic brake work, but the truck should be properly supported and the lug torque and caliper bolt torque should be checked against factory specifications after installation.

Replacing rotors with an aftermarket part like the RDK.67082.1S does not automatically void your entire factory warranty, but it can affect coverage for brake related components specifically under the Magnuson Moss Warranty Act guidelines, so check with your dealer if you have concerns.

Rotor life depends heavily on driving style and pad compound, but the RDK.67082.1S two piece design is built to handle repeated hard stops and track sessions better than a standard OE rotor while maintaining normal street rotor life under regular driving.

Installation Instructions

1. Loosen the front wheel lug nuts slightly before raising the vehicle, then lift and support the truck on jack stands and remove the front wheels.
2. Remove the factory caliper bolts and lift the caliper off the rotor, supporting it so the brake line is not stressed.
3. Remove the caliper bracket bolts and set the bracket aside, then remove the factory rotor from the hub.
4. Clean the hub face with a wire brush to remove rust and debris before mounting the new RDK.67082.1S rotor.
5. Mount the new rotor assembly onto the hub, ensuring it is seated flush against the hub face.
6. Reinstall the caliper bracket and torque the bracket bolts to factory specification.
7. Reinstall the caliper over the new rotor and torque the caliper bolts to factory specification.
8. Reinstall the wheels, torque the lug nuts to factory specification, and repeat on the opposite side.
9. Pump the brake pedal several times before driving to reseat the pads against the new rotor surface.
10. Follow a proper bed in procedure with a series of moderate stops from highway speed, avoiding hard stops until the rotors have cycled through a full bed in.
