Tune Your JL's Rear Ride Quality on the Trail and the Highway

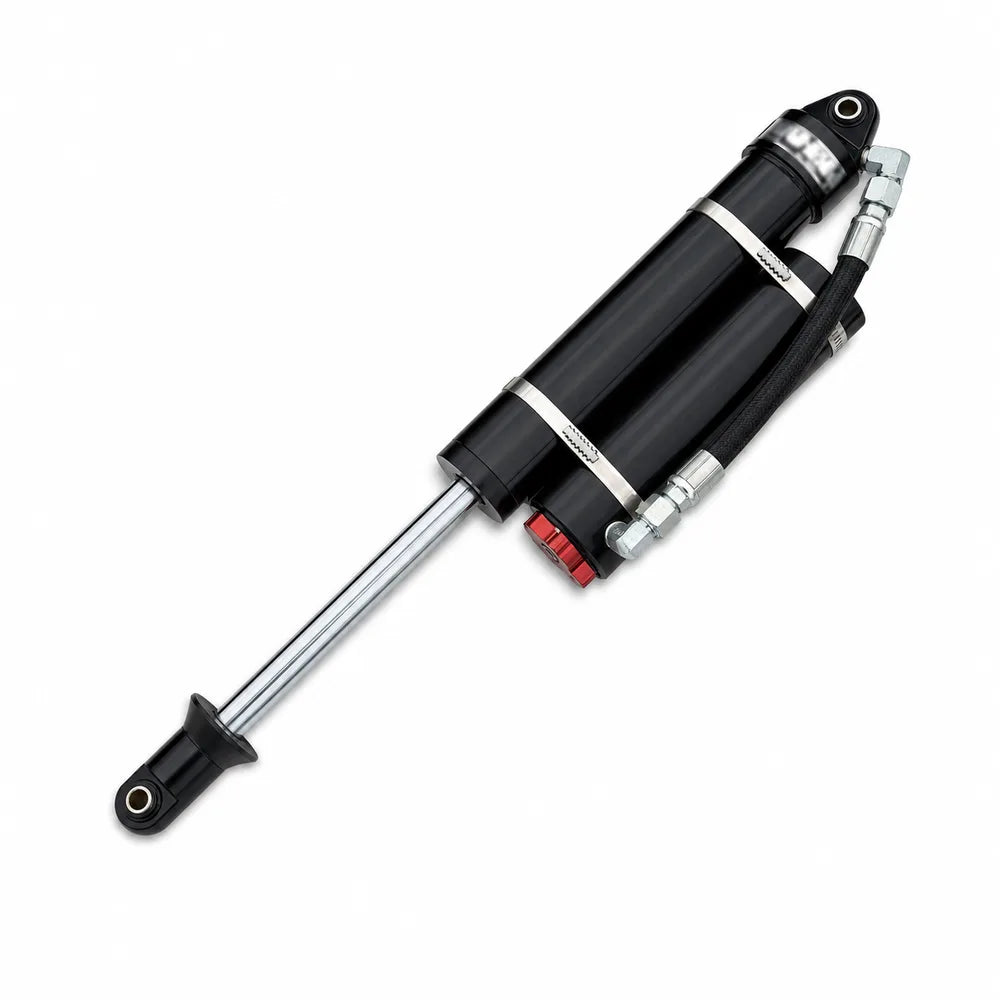

When your Jeep Wrangler JL or JLU needs a rear shock that adapts to changing terrain without a full teardown, the RKRRRD09083FCD delivers. This 2.625 inch remote reservoir shock with Fast CD adjustment lets you dial in compression damping in seconds, whether you are crawling over ledges or cruising home on the interstate.
Key Features
- RKRRRD09083FCD Fast CD external compression adjuster for on the fly tuning, up to 30 percent more compression dampening
- 2.625 inch O.D. military grade hard anodized fluted aluminum shock body
- 3.25 inch O.D. remote reservoir with internal floating piston charged with argon
- 1 inch 17 4 PH stainless steel shaft, hard chrome plated and polished
- Dual DU shaft bearings with double redundant sealing to keep contaminants out
- Serviceable, rebuildable, and revalveable design for long term ownership
- Cooling surface area equivalent to a 3.0 inch shock body despite the lighter 2.625 inch package
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2018-2026 | Jeep | Wrangler JL/JLU |
Specifications
| Detail | Value |
|---|---|
| MPN | RD09083FCD |
| Shock Type | 2.625 inch Remote Reservoir with Fast CD Adjuster |
| Travel | 2.5 inch lift application |
| Shaft Material | 1 inch 17 4 PH stainless steel, hard chrome plated |
| Body Finish | Military grade hard anodized fluted aluminum |
| Warranty | 6 month warranty against defects in materials and workmanship |
| Brand | Rock Krawler |
What's Included
- (1) Pair Rock Krawler RD09083FCD rear shocks with Fast CD adjuster
- Mounting hardware and brackets
- Installation instructions
About Rock Krawler
Rock Krawler Suspension has spent decades engineering long arm and mid arm suspension systems, control arms, and shocks purpose built for Jeep Wrangler and Gladiator platforms. Based in New York, the company is known among off road enthusiasts for service free joints, abuse proof warranties, and components tested on real trails before they reach the shelf.
Related Parts on Our Site
- Rock Krawler 2018+ JL/JLU X Series Rear Lower Control Arms
- Rock Krawler 2018+ JL/JLU Front Upper Control Arms
- Rock Krawler 2018+ JL/JLU Front & Rear Bump Stop Kit
FAQ
What is the RD09083FCD?The RD09083FCD is a Rock Krawler 2.625 inch remote reservoir rear shock built for 2018 and newer Jeep Wrangler JL and JLU models, featuring a Fast CD external compression adjuster for quick on the fly damping changes.
Does it fit a two door Wrangler JL?Yes, this shock fits both the two door JL and four door JLU since the rear shock mounting points are shared across the platform.
What does Fast CD adjustment mean?Fast CD stands for Fast Compression Damping, an external adjuster that lets you increase compression dampening by up to 30 percent without removing the shock or opening the body.
Can this shock be rebuilt or revalved?Yes, the shock uses a serviceable design so it can be rebuilt, resealed, or revalved by a qualified suspension shop as needed over its service life.
Is this shock compatible with a 2.5 inch lift?Yes, the RD09083FCD is specifically sized for 2.5 inch lift applications on the JL and JLU rear suspension.
Do I need a specific bracket to install it?Mounting hardware and brackets are included with the shock, so no separate bracket kit purchase is necessary for a standard installation.
What warranty comes with this shock?Rock Krawler backs this shock with a 6 month warranty against defects in materials and workmanship from the date of purchase.
Will this shock work with factory Jeep JL springs?It is designed as part of a lift application and is best paired with matching Rock Krawler springs or a compatible lift kit rather than factory springs.
How does the reservoir stay pressurized?The 3.25 inch remote reservoir uses an internal floating piston charged with argon gas to maintain consistent pressure and prevent oil aeration during hard use.
Install Instructions
- Raise and safely support the rear of the Jeep, then remove the wheels for clearance.
- Support the rear axle with a jack to control droop while removing the factory shock.
- Disconnect the upper and lower shock mounting hardware and remove the factory shock and reservoir.
- Position the new shock body at the lower axle mount and install the supplied hardware finger tight.
- Mount the upper shock eye to the frame bracket and secure with the provided hardware.
- Mount the remote reservoir bracket in a location with adequate clearance and secure the reservoir hose.
- Torque all mounting hardware to the vehicle manufacturer's specifications.
- Cycle the suspension by hand to confirm clearance, then reinstall the wheels and lower the Jeep.
- Adjust the Fast CD compression setting to your desired damping level and test drive before hitting the trail.
