SPL Parts 06-13 BMW 3 Series/1 Series (E9X/E8X) Adjustable Front Caster Rod Monoball Bushings

Precision Caster Control for BMW E9X and E8X Chassis

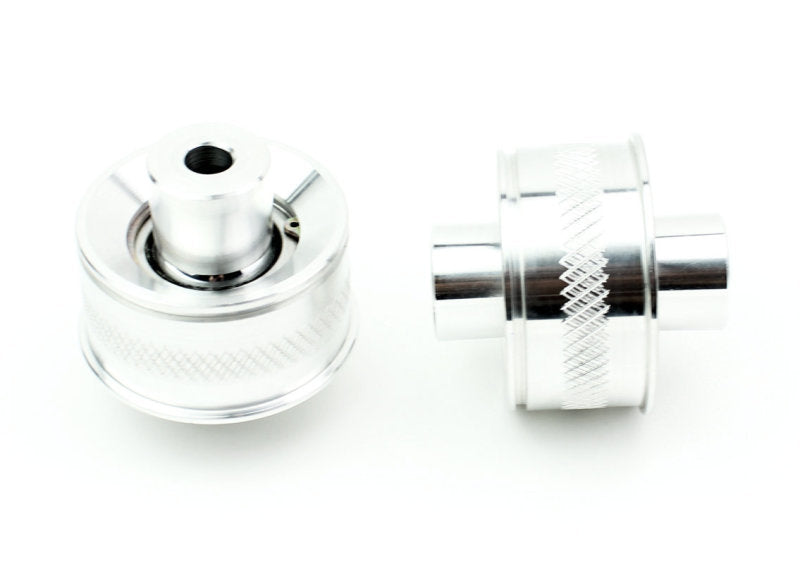

The SPL CRB E9X Adjustable Front Caster Rod Monoball Bushings transform the handling characteristics of the 2006-2013 BMW 3 Series and 1 Series by replacing the factory rubber caster rod bushings with massive 1-inch FK Racing spherical bearings in a precisely machined 6061-T6 aluminum housing. Rubber bushings deflect under braking and cornering loads, allowing the front suspension geometry to shift and reducing steering feedback. The SPL CRB E9X eliminates that deflection entirely. Innovative offset bearing spacers provide plus or minus 4 degrees of caster adjustment, enabling alignment technicians to dial in more positive caster for improved straight-line stability and steering return-to-center feel, particularly valuable on lowered vehicles or track-focused builds.

Features and Benefits

• Massive 1-inch FK Racing spherical bearings deliver zero bushing deflection under heavy braking and cornering loads
• Self-lubricating Teflon liner provides quiet operation, low friction, and long service life
• 6061-T6 Aluminum bearing housing with external knurl for secure press-fit retention
• CNC-machined offset bearing spacers provide +/- 4 degrees of caster adjustment
• Eliminates the soft rubber bushing that allows front geometry to shift under load
• Improves braking feedback and handling sharpness immediately
• Sold as a pair; OEM tension rods are retained and not replaced
• Made in the USA

Fitment

Specifications

What's Included

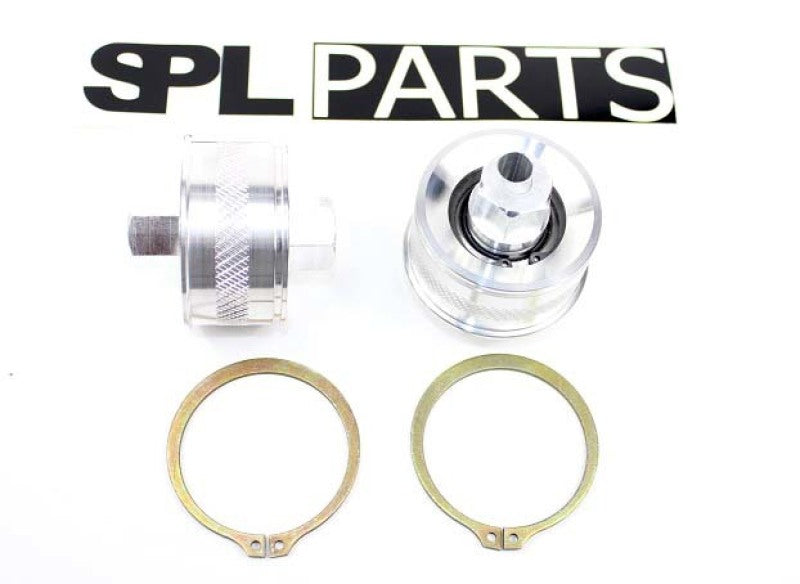

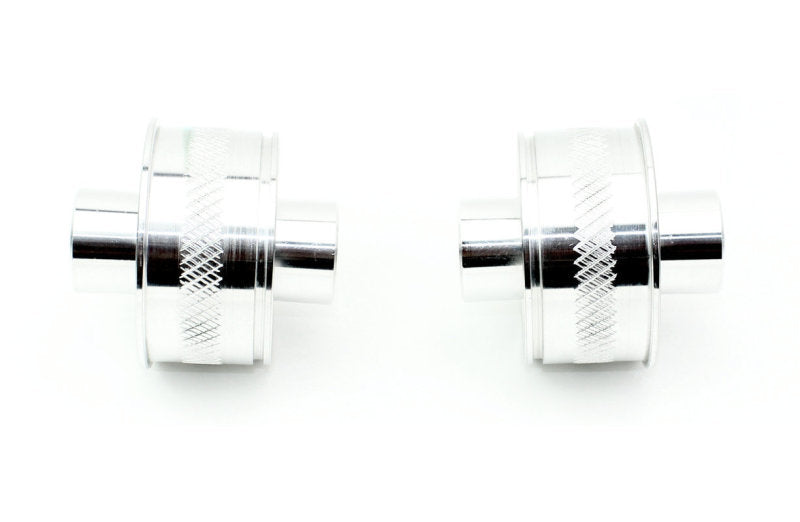

• 2 x SPL CRB E9X bearing housings (6061-T6 aluminum)
• 1-inch FK Racing spherical bearings with Teflon liners (pre-installed)
• CNC-machined offset bearing spacers for caster adjustment
• Installation instructions

Frequently Asked Questions

What does the SPL CRB E9X actually replace on my BMW?

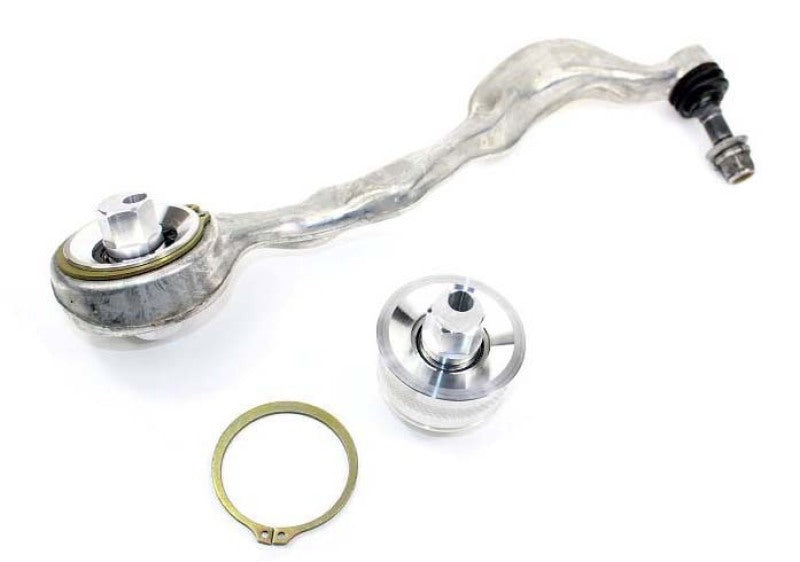

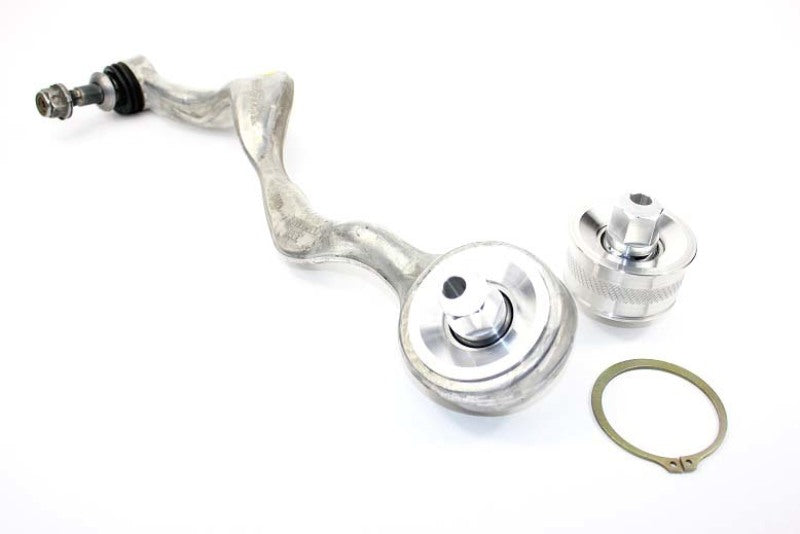

The SPL CRB E9X replaces the rubber bushings at the chassis attachment point of the front tension/caster rod. The OEM caster rod itself is retained. Only the bushing and associated hardware at the chassis end are replaced.

How much caster adjustment does the SPL CRB E9X provide?
The offset bearing spacers provide plus or minus 4 degrees of caster adjustment. For most street and track applications this is more than enough range to optimize front end geometry, especially on lowered vehicles where OEM caster values shift outside the desired range.

Do these bushings generate more noise than the OEM rubber units?
The FK bearings feature a Teflon liner that provides quiet, low-friction operation. NVH is comparable to OEM rubber for street use. Some users may notice a slight increase in road feel, which is generally considered a desirable characteristic on performance-oriented vehicles.

Is professional installation required for the SPL CRB E9X?
Installation requires pressing the bearing housing into the OEM caster rod. A hydraulic press or suitable shop press is strongly recommended. An alignment must be performed after installation. SPL recommends installation by a qualified shop familiar with BMW suspension systems.

What alignment settings are achievable with the SPL CRB E9X?
With the offset spacers, a qualified alignment technician can set additional positive caster, which improves steering return-to-center and high-speed stability. The exact achievable caster values depend on starting geometry and vehicle-specific subframe position.

Are these compatible with aftermarket coilovers and lowered ride heights?
Yes. The SPL CRB E9X is particularly beneficial on lowered vehicles because dropping ride height typically reduces caster. The adjustable offset spacers allow restoring or increasing caster to offset the geometry change from lowering.

Will installing these bushings affect my BMW factory warranty?
Under the Magnuson-Moss Warranty Act, a manufacturer or dealer cannot void your entire vehicle warranty solely because you installed an aftermarket part. They must prove the aftermarket component caused the specific failure being claimed. Consult your dealer for your specific situation.

What torque values are used during installation?
Tighten the bushing nut at the chassis to 74 ft-lbs plus an additional 90-degree turn. Torque the ball joint nut to 110 ft-lbs. Always use a calibrated torque wrench and refer to the included installation instructions.

Installation Instructions

1. Safely lift and support the vehicle on jack stands; remove the front wheels for better access.
2. Unbolt the caster rod from the chassis attachment point. Note the orientation of the existing bushing hardware before removal.
3. Press the OEM rubber bushing out of the caster rod end using a hydraulic press or suitable bushing removal tool.
4. Press the SPL CRB E9X aluminum bearing housing into the caster rod end until fully seated. Ensure it is flush and properly oriented.
5. Install the offset spacer in the desired caster position (toward more positive or more negative caster as needed) and thread the bearing onto the chassis mount stud.
6. Install the bushing nut and torque to 74 ft-lbs, then apply an additional 90-degree turn (angle torque).
7. Torque the ball joint nut to 110 ft-lbs if disturbed during the process.
8. Reinstall the front wheels and lower the vehicle.
9. Have a complete four-wheel alignment performed by a qualified alignment technician to set caster to the desired specification.
