SPL Parts SPL RTA CAM6 Adjustable Rear Toe Links - 2016-2024 Chevrolet Camaro and 2013-2019 Cadillac - SPL Parts SPL RTA CAM6
SPL Parts SPL RTA CAM6 Adjustable Rear Toe Links - 2016-2024 Chevrolet Camaro and 2013-2019 Cadillac - SPL Parts SPL RTA CAM6
Click to zoom in

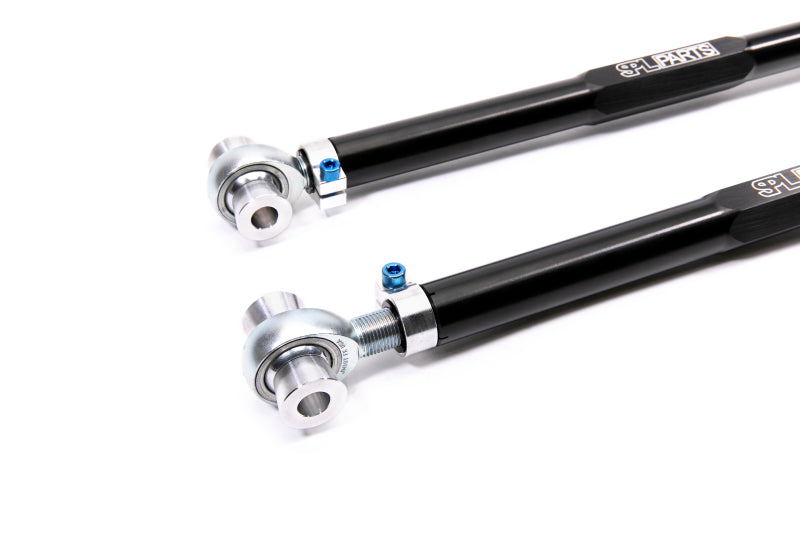

SPL Parts SPL RTA CAM6 Adjustable Rear Toe Links - 2016-2024 Chevrolet Camaro and 2013-2019 Cadillac ATS

SPL Parts
SPPSPL RTA CAM6
SPL RTA CAM6
Control Arms
1 Units In Stock
$ 449.00 $ 403.10
$ 403.10

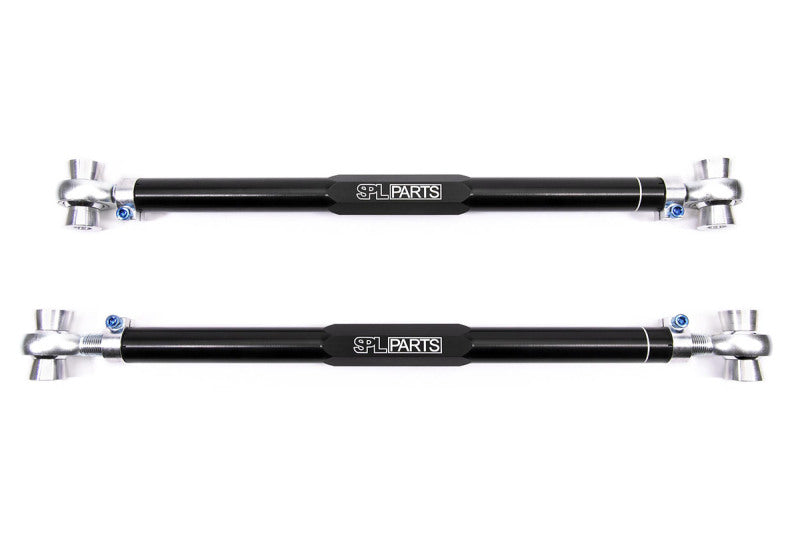

SPL Parts SPL RTA CAM6 is an adjustable rear toe-link pair for supported Chevrolet Camaro and Cadillac ATS applications. The links eliminate factory bushing deflection and expand rear toe adjustment for lowered vehicles and performance alignments.

Key Features

  • Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment.
  • FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load.
  • Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car.
  • Camaro and ATS/ATS-V Rear Toe Arms (RTA) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments.
  • The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer.

Fitment

Years Make Model
2016-2024 Chevrolet Camaro
2013-2019 Cadillac ATS

Fits the listed Chevrolet Camaro and Cadillac ATS model years. CAM6 and generation labels are platform references and are intentionally excluded from Convermax model tags. A professional alignment is required after installation.

Specifications

Brand SPL Parts
Manufacturer Part Number SPL RTA CAM6
Product Type Adjustable rear toe links
Position Rear toe
Link Material Gun-drilled 2024 aluminum
Clamp Material 6061-T6 aluminum
Bearing PTFE-lined FK spherical
Quantity Pair

What's Included

A pair of adjustable rear toe links with rotating clamps, FK spherical bearings and rod ends, titanium clamp hardware, and the exact installation hardware supplied by SPL Parts.

About SPL Parts

SPL Parts designs and manufactures precision suspension components for street, track, and motorsport alignment applications. Product selection must follow the current manufacturer application and installation information.

Related SPL Parts Products

Frequently Asked Questions

Are SPL RTA CAM6 rear toe links sold as a pair?
Yes. SPL Parts supplies the rear toe links as a pair.

Do these links replace the factory toe eccentric?
They provide toe adjustment at the link. Use the compatible eccentric lockout kit when the factory eccentric also needs to be eliminated.

Is an alignment required after installation?
Yes. Set rear toe and verify all clearances with a professional alignment before driving.

Installation

Follow the current SPL Parts instructions for this exact manufacturer part number. Confirm component orientation, adjustment range, clearances, fastener condition, torque specifications, and final alignment settings before driving.
