SPL Parts SPL ELT CAM6 is a rear toe eccentric lockout kit for supported Chevrolet Camaro, Cadillac ATS, and Cadillac CTS applications. It replaces the factory rear toe eccentric hardware to hold the alignment setting under high cornering loads.
Key Features
- You must have adjustable control arms in order to adjust toe after eliminating the stock eccentric bolts.
- Our lockout plates are CNC machined from 6061-T6 Aluminum and supplied with zinc plated grade 10.9 bolts and lock nuts for absolutely zero-slip.
- This kit includes washers and bolts for both toe arms.
- Sold as a complete kit for one car.Made in the USA.
Fitment
| Years | Make | Model |
|---|---|---|
| 2016-2024 | Chevrolet | Camaro |
| 2013-2019 | Cadillac | ATS |
| 2014-2019 | Cadillac | CTS |
Fits the listed Chevrolet Camaro, Cadillac ATS, and Cadillac CTS model years. CAM6 and generation labels are platform references and are intentionally excluded from Convermax model tags. Adjustable toe arms are required to retain toe adjustment.
Specifications
| Brand | SPL Parts |
|---|---|
| Manufacturer Part Number | SPL ELT CAM6 |
| Product Type | Eccentric lockout kit |
| Plate Material | 6061-T6 aluminum |
| Hardware Grade | 10.9 metric |
| Quantity | Complete kit for one vehicle |
| Position | Rear toe |
What's Included

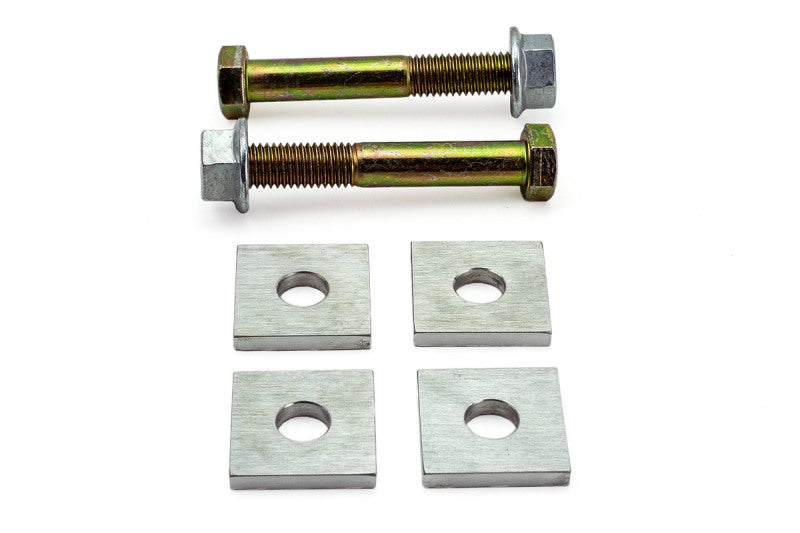

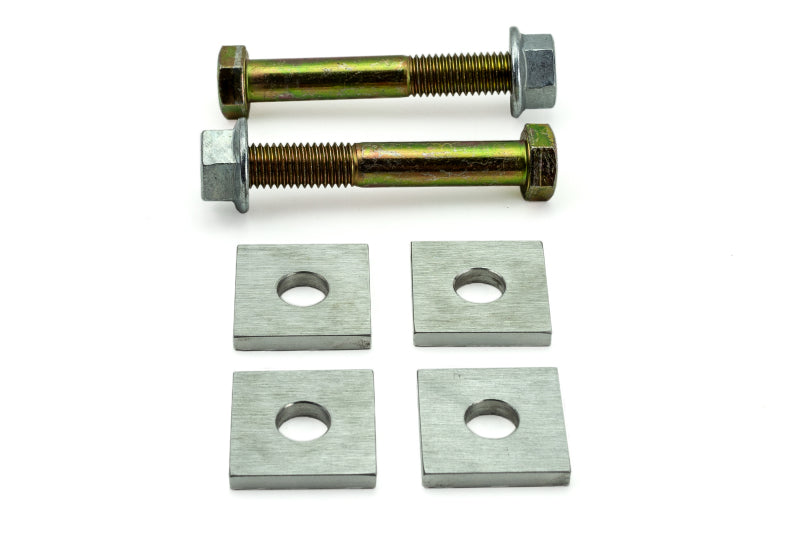

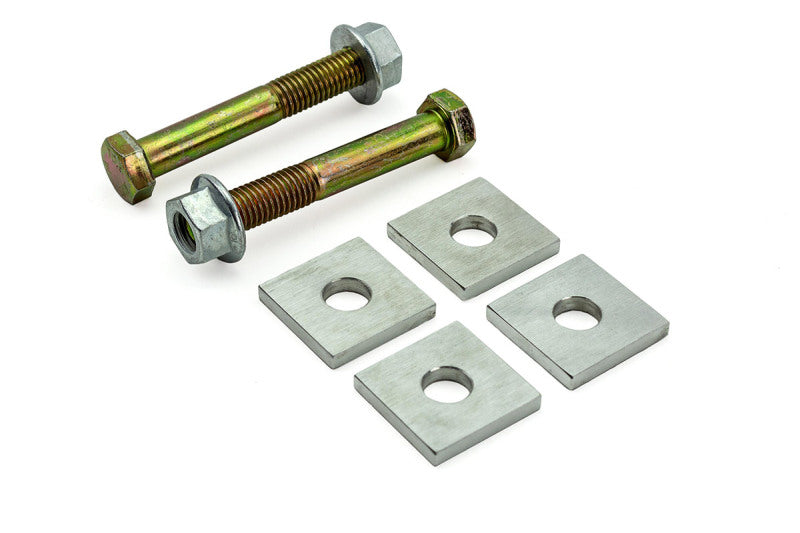

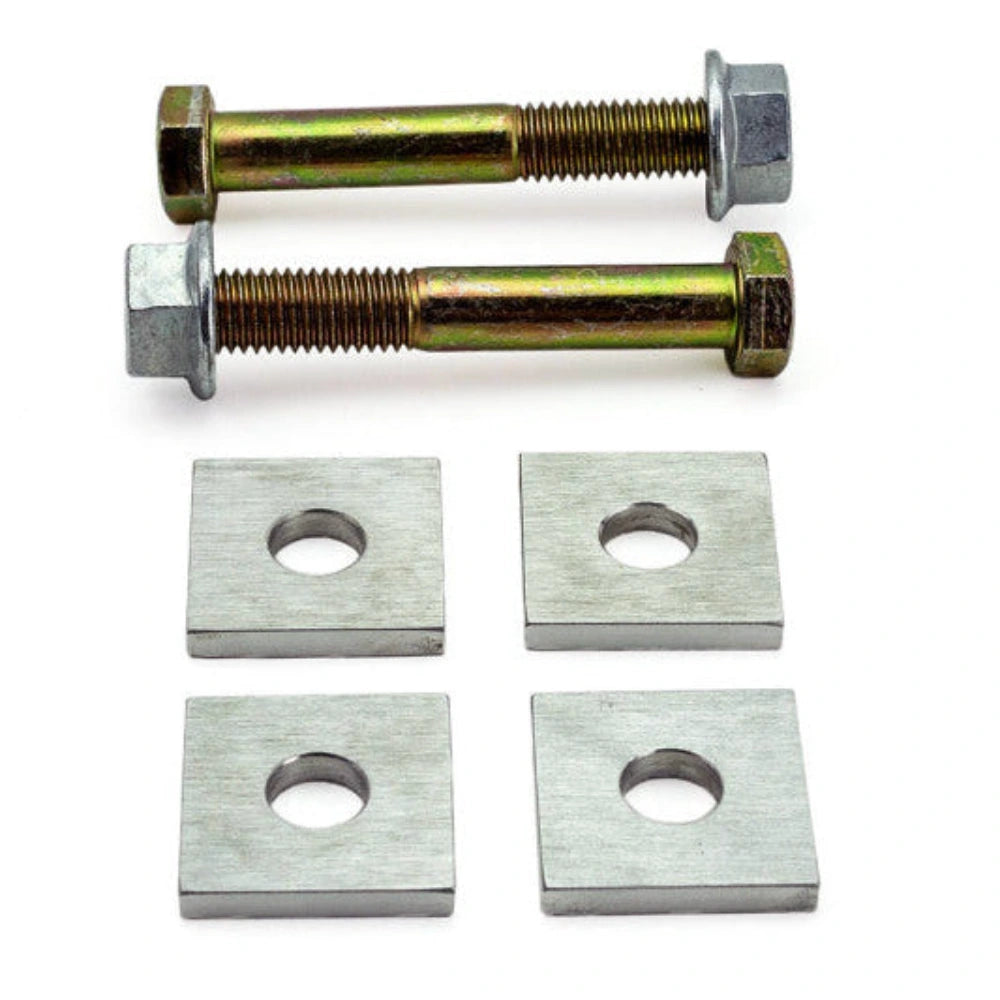

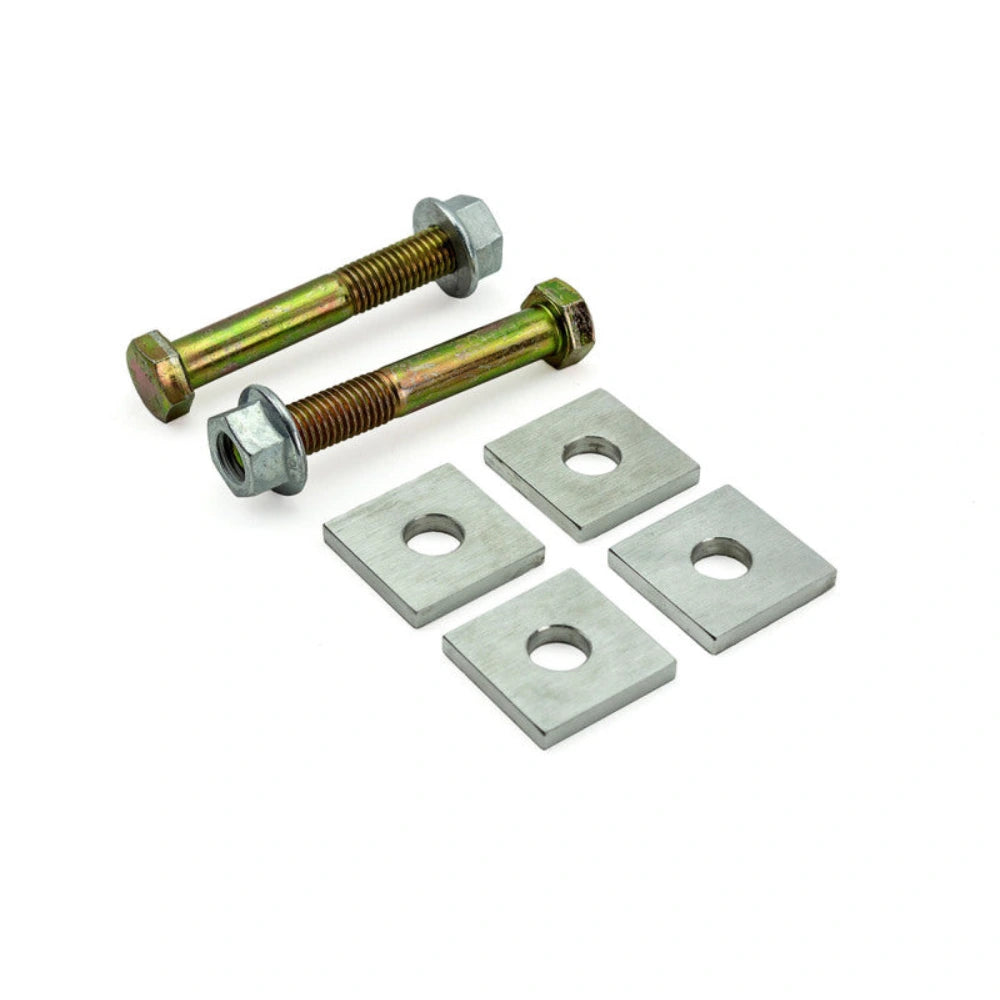

CNC-machined lockout plates with zinc-plated grade 10.9 bolts and lock nuts for both rear toe arms on one vehicle.
About SPL Parts
SPL Parts designs and manufactures precision suspension components for street, track, and motorsport alignment applications. Product selection must follow the current manufacturer application and installation information.
Related SPL Parts Products
- Shop all SPL Parts products
- SPL Camaro rear toe links with lockout
- SPL Nissan 370Z eccentric lockout kit
- SPL Ford Mustang toe eccentric lockout kit
Frequently Asked Questions
Does SPL ELT CAM6 preserve factory eccentric adjustment?
No. It replaces the specified factory eccentric adjustment point, so compatible adjustable suspension arms are required for subsequent alignment changes.
Is this kit sold for one vehicle?
Yes. SPL Parts identifies it as a complete lockout kit for one vehicle.
Is a professional alignment required?
Yes. Install the compatible adjustable components first, then complete a professional alignment and clearance check.
Installation
Follow the current SPL Parts instructions for this exact manufacturer part number. Confirm component orientation, adjustment range, clearances, fastener condition, torque specifications, and final alignment settings before driving.
