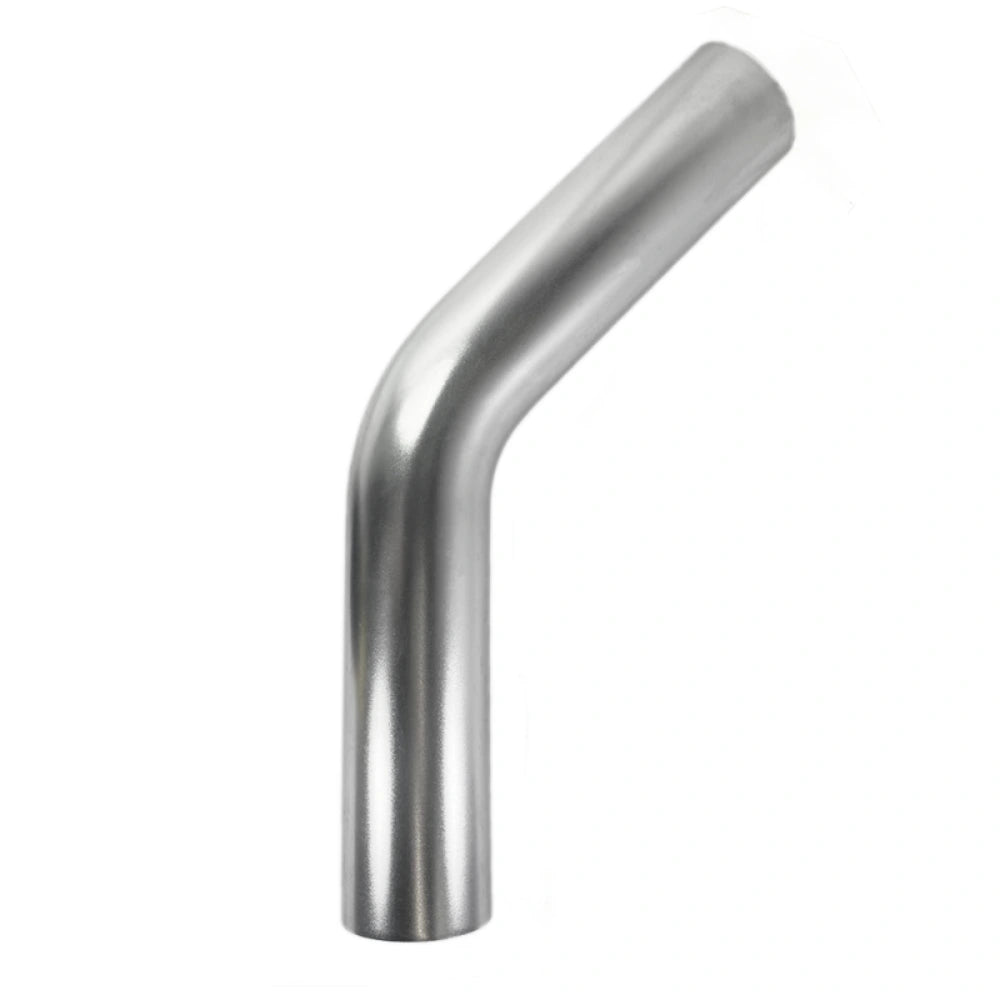

Ticon 4in Aluminum 6061 45 Deg Mandrel Bend - 1.5D Radius is the exact new Ticon Industries 6061 aluminum fabrication tubing shown in this listing. Manufacturer part number 301-10228-8150 matches Ticon Industries' current catalog. Confirm every listed specification before ordering.
Key Features
- Precision Aluminum Tubing for Custom Fabrication The Ticon 301-10228-8150 4in Aluminum 6061 45 degree mandrel bend delivers a smooth, constant-diameter bend for custom intake, intercooler, and charge pipe fabrication.
- This 4in mandrel bend has a 2mm /.079in wall thickness.
- This part is a Ticon 4in aluminum 45 degree mandrel bend commonly used to fabricate custom intercooler piping, intake tubes, and charge pipes where a smooth direction change is needed without restricting airflow.
- 1.5D radius means the bend radius is 1.5 times the tube diameter, which is a common industry standard for balancing smooth flow with a compact bend.
- Ticon aluminum mandrel bends are precision formed to maintain a consistent inner diameter throughout the bend for clean welding to adjoining sections.
- Yes, the bare 6061 aluminum finish is ready for TIG welding to other aluminum components in a custom piping build.
Fitment
This component is universal by fabrication specification and has no year, make, and model assignment. Confirm the exact material, dimensions, wall specification, bend geometry, flange or thread interface, mating components, heat range, and installation space.
Specifications
| Brand | Ticon Industries |
|---|---|
| Manufacturer Part Number | 301-10228-8150 |
| Product Type | Aluminum Tubing |
| Application Type | Universal by exact fabrication specifications |
| Diameter | 4 inches |
| Bend Angle | 45 degrees |
| Material | 6061 aluminum |
| Condition | New |
What's Included
One new Ticon Industries 6061 aluminum fabrication tubing identified by manufacturer part number 301-10228-8150. Clamps, gaskets, filler material, tubing, flanges, hangers, sensors, adapters, and other components are included only when expressly stated for this exact part number.
About Ticon Industries
Ticon Industries develops titanium, aluminum, stainless-steel, silicone, and specialty fabrication components for motorsport exhaust, intake, charge-pipe, and custom vehicle systems.
Related Ticon Products
- Shop all Ticon products
- Ticon 1.75in Aluminum 6061 45 Degree Mandrel Bend - 1.5D Radius
- Ticon 2.5in Aluminum 6061 180 Degree Mandrel Bend - 1.5D Radius
- Ticon 3.5in Aluminum 6061 45 Deg Mandrel Bend - 1.5D Radius
Frequently Asked Questions
How do I confirm Ticon 301-10228-8150 is correct for my project?
Match the complete manufacturer part number, material, diameter, wall thickness, bend or flange geometry, mating interface, clearance, and package quantity. Similar-looking fabrication components are not automatically interchangeable.
Is Ticon 301-10228-8150 vehicle specific?
No year, make, and model assignment is published for this component. Compatibility depends on the exact specifications and layout of the custom exhaust, intake, charge-pipe, or fabrication assembly.
What should be checked before installing Ticon 301-10228-8150?
Test-fit the component, verify alignment and clearance, clean every mating surface, use a compatible joining process and filler material, protect nearby systems from heat, and leak-test the completed assembly.
Installation
Professional fabrication is recommended. Follow current Ticon Industries guidance for part 301-10228-8150, test-fit before final welding or assembly, use compatible tooling and consumables, support the system without preload, maintain safe clearance from heat-sensitive components, and verify leak-free operation before use.
