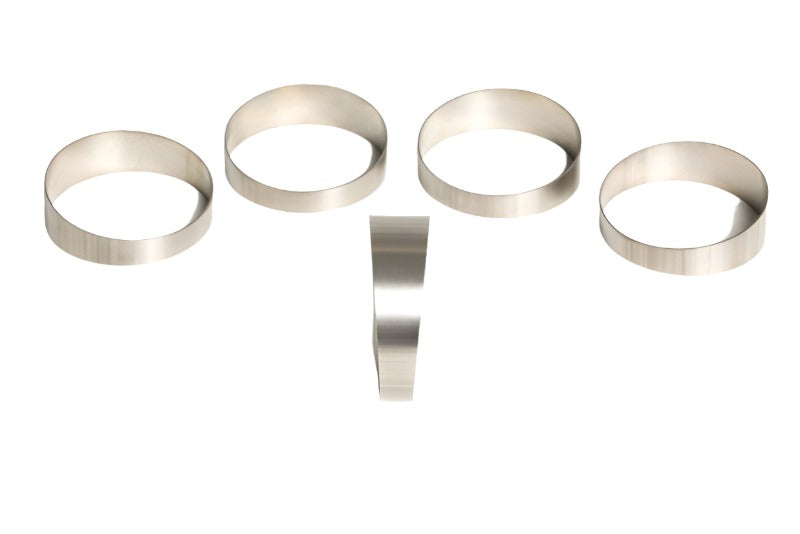

Ticon Industries 3.0in 45 Degree 1.14D/3.42in CLR TR 1.2mm/.047in Wall Titanium Pie Cuts - 5pk is the exact new Ticon Industries titanium fabrication tubing shown in this listing. Manufacturer part number 109-07601-0014 matches Ticon Industries' current catalog. Confirm every listed specification before ordering.
Key Features
- Ticon Industries 3.0in 45 Degree 1.14D/3.42in CLR TR 1.2mm/.047in Wall Titanium Pie Cuts - 5pk.
Fitment
This component is universal by fabrication specification and has no year, make, and model assignment. Confirm the exact material, dimensions, wall specification, bend geometry, flange or thread interface, mating components, heat range, and installation space.
Specifications
| Brand | Ticon Industries |
|---|---|
| Manufacturer Part Number | 109-07601-0014 |
| Product Type | Titanium Tubing |
| Application Type | Universal by exact fabrication specifications |
| Diameter | 3.0 inches |
| Bend Angle | 45 degrees |
| Centerline Radius | 3.42 inches |
| Wall Thickness | 1.2 mm / .047 inch |
| Pack Quantity | 5 |
| Material | Titanium |
| Condition | New |
What's Included
One new Ticon Industries titanium fabrication tubing identified by manufacturer part number 109-07601-0014. Clamps, gaskets, filler material, tubing, flanges, hangers, sensors, adapters, and other components are included only when expressly stated for this exact part number.
About Ticon Industries
Ticon Industries develops titanium, aluminum, stainless-steel, silicone, and specialty fabrication components for motorsport exhaust, intake, charge-pipe, and custom vehicle systems.
Related Ticon Products
- Shop all Ticon products
- Ticon Industries 1-3/16in OAL 2.0in to 2.5in Titanium Transition Reducer Cone
- Ticon Industries 1-3/16in OAL 3.0in to 3.5in Titanium Transition Reducer Cone
- Ticon Industries 1-3/16in OAL 3.0in to 3.5in Titanium Transition Reducer Cone
Frequently Asked Questions
How do I confirm Ticon 109-07601-0014 is correct for my project?
Match the complete manufacturer part number, material, diameter, wall thickness, bend or flange geometry, mating interface, clearance, and package quantity. Similar-looking fabrication components are not automatically interchangeable.
Is Ticon 109-07601-0014 vehicle specific?
No year, make, and model assignment is published for this component. Compatibility depends on the exact specifications and layout of the custom exhaust, intake, charge-pipe, or fabrication assembly.
What should be checked before installing Ticon 109-07601-0014?
Test-fit the component, verify alignment and clearance, clean every mating surface, use a compatible joining process and filler material, protect nearby systems from heat, and leak-test the completed assembly.
Installation
Professional fabrication is recommended. Follow current Ticon Industries guidance for part 109-07601-0014, test-fit before final welding or assembly, use compatible tooling and consumables, support the system without preload, maintain safe clearance from heat-sensitive components, and verify leak-free operation before use.
