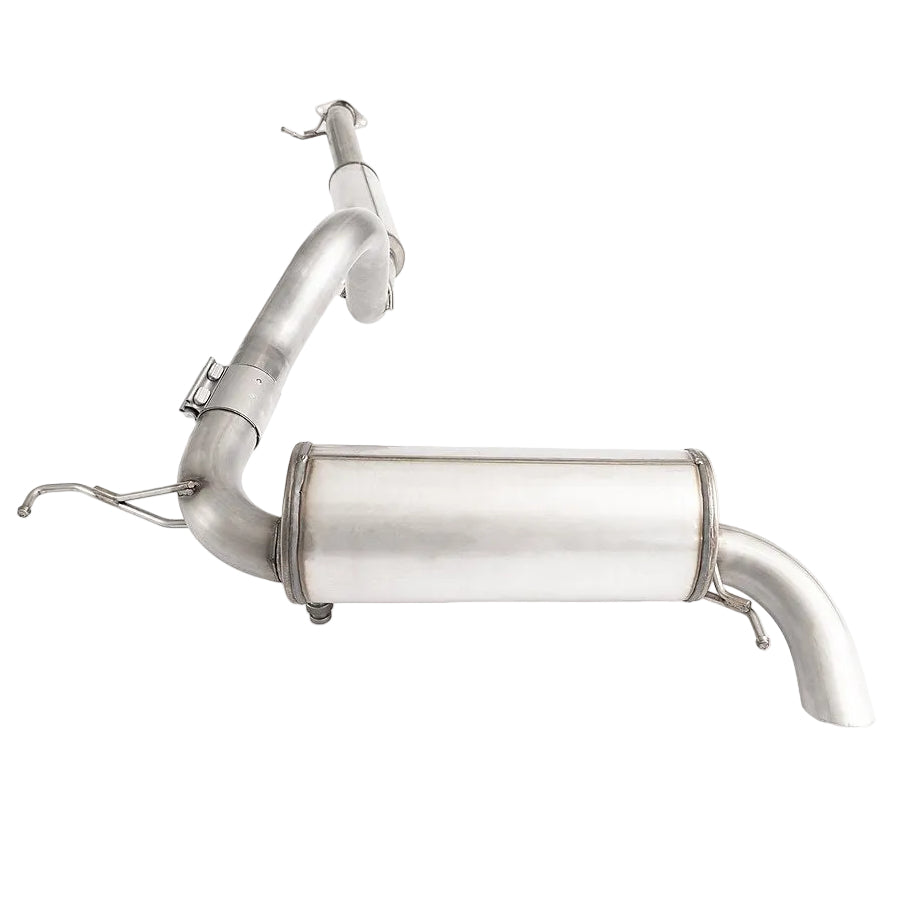

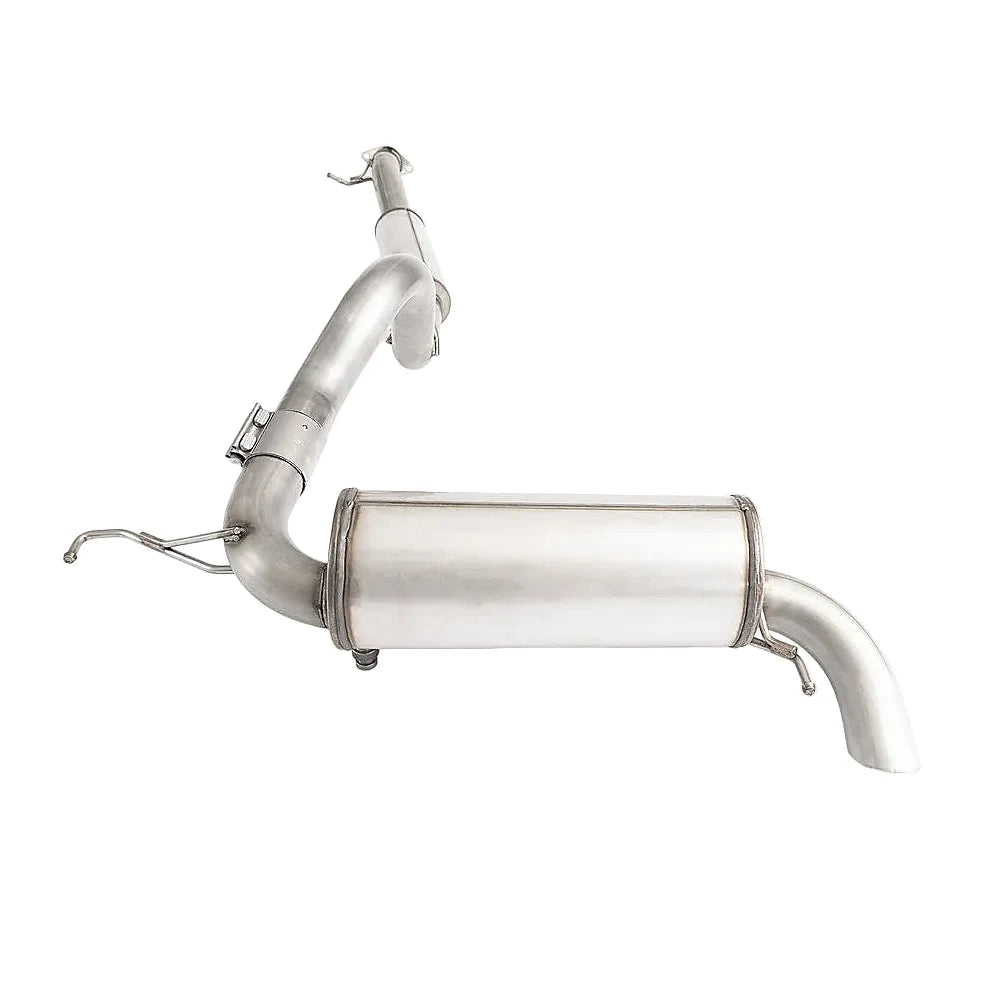

Thermal R&D B912-C911 Catback Exhaust - 2021-2025 Ford Bronco 2 Door 2.7L

Built For The Trail, Tuned For The Road

Your Bronco was made to leave the pavement behind, and the factory exhaust was never designed for that mission. The B912-C911 catback from Thermal R&D hugs the frame for real ground clearance while giving your 2.7L EcoBoost the deep, refined tone it deserves. This is the exhaust upgrade that finally matches the truck's off-road personality.

Key Features

• 3 inch T304 mandrel bent stainless steel tubing from the B912-C911 system
• Frame hugging, high clearance design preserves factory approach and departure angles
• True Helmholtz Technology cancels drone without muting the exhaust note
• Direct bolt on installation using factory hangers, no cutting or welding
• Retains factory catalytic converters and emissions equipment
• Mill finish stainless tubing with a slant cut exit
• Includes a polished stainless tip finish on the B912-C911
• Manufactured in the USA and backed by a lifetime warranty

This Part Fits

Specifications

What's Included

• Thermal R&D B912-C911 catback exhaust system
• Polished exhaust tip
• Mounting clamps and hardware
• Installation instructions

About Thermal R&D

Thermal Research and Development started in 1983 in a small muffler shop in Canoga Park, California. Decades later the team still hand builds every exhaust system in the USA, combining old school craftsmanship with modern Helmholtz acoustic tuning to give drivers an aggressive tone without cabin drone.

Frequently Asked Questions

The B912-C911 is a 3 inch T304 stainless steel catback exhaust system built by Thermal R&D for the 2021-2025 Ford Bronco 2 door with the 2.7L EcoBoost engine, finished with a polished slant cut tip.

This specific listing is set up for the 2 door Bronco. Thermal R&D also offers a 4 door version of this catback, so double check the door count before ordering.

No. The system connects behind the factory catalytic converters and does not alter emissions equipment, so it will not trigger a check engine light on a properly functioning Bronco.

Basic hand tools are all you need. The kit bolts to the factory hangers and downpipe using the included clamps, with no cutting or welding required.

Most owners complete the swap in about an hour in a home garage, longer if the factory clamps are rusted and need penetrating oil first.

No. The system is designed to tuck high against the frame, matching the factory routing so your approach, departure, and breakover angles are not compromised.

Some drone and rasp can mellow slightly over the first few hundred miles as the stainless settles in, but the core tone is set from installation.

Thermal R&D covers manufacturing defects in materials and welds for the lifetime of the system. Normal wear, road damage, and improper installation are not covered.

Yes. The B912-C911 is engineered to reuse every factory hanger location, so no aftermarket brackets are needed.

Install Instructions

1. Raise the Bronco safely and allow the factory exhaust to cool completely.
2. Apply penetrating fluid to the factory clamps and rubber isolators.
3. Remove the factory exhaust starting at the rear, working forward to the downpipe connection.
4. Reuse the factory gasket and mount the new midpipe to the downpipe.
5. Slide the axle pipe into place and secure with the included clamp.
6. Install the Helmholtz muffler section into the factory hangers.
7. Attach the polished tip and align it evenly in the rear valance.
8. Check all clearances, then fully tighten every clamp in sequence.
