-10%
Sold out
Click to zoom in
SKU: TS-0615-2242 | UPC: 9329677013788

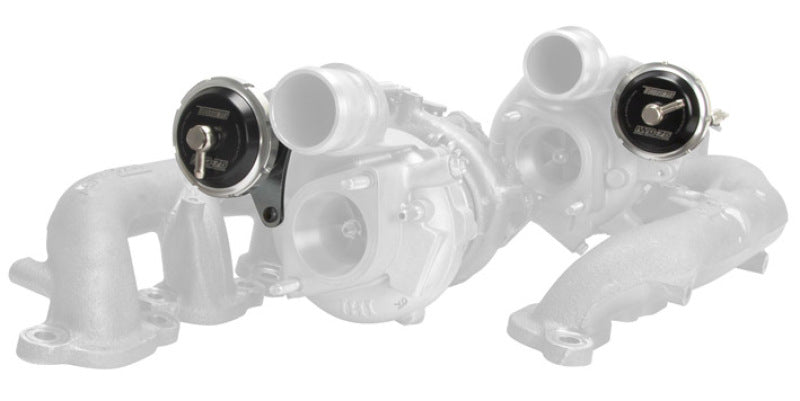

Turbosmart 2008+ Nissan R35 GT-R 24 PSI Internal Wastegate Kit
This Turbosmart Internal Wastegate Actuator kit upgrades the factory unit on 2008+ Nissan R35 GT-R models including Base, Premium, Nismo, Black Edition, Track Edition, Pure, and 50th Anniversary Edition. It supports up to 24 PSI boost with direct bolt-on installation for seamless boost management. Engineered in Australia for consistent performance and extended durability under high heat.
Key Features
- 24 PSI Spring: Factory-equipped spring holds boost steady up to 24 PSI with optional upgrades available for higher levels
- Reinforced Nomex Diaphragm: High-temperature material resists thermal cycling and extends service life in demanding GT-R applications
- Extended Piston Travel: Provides greater boost range and quicker response for sharper throttle feel and power delivery
- Nitronic 60 Valve Seat: Wear-resistant material ensures reliable sealing and minimal boost creep over time
- 1/8 NPT Boost Port: Allows easy integration with aftermarket gauges or controllers for real-time monitoring
Product Notes
- Direct replacement for OEM actuator on both turbochargers. replace both sides for balanced performance
- Spring kits available separately for custom boost tuning from 3 PSI to 26 PSI
- Special order item. confirm stock before ordering
Installation Notes
- Professional installation recommended.
- Bolt-on fit requires no modifications. uses factory mounting hardware
- Adjust preload during install to match target boost. test on dyno after setup
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2020 | Nissan | GT-R | 50th Anniversary Edition |
| 2009-2010 | Nissan | GT-R | Base |
| 2012-2016 | Nissan | GT-R | Black Edition |
| 2015-2021 | Nissan | GT-R | Nismo |
| 2009-2021 | Nissan | GT-R | Premium |
| 2018-2019 | Nissan | GT-R | Pure |
| 2014-2015,2018-2020 | Nissan | GT-R | Track Edition |
| 2008-2024 | Nissan | GT-R | All R35 Models |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia with strict quality control since 1997
- Rigorous testing ensures reliability in extreme performance conditions
- Innovative design backed by dedicated research and staff expertise
Frequently Asked Questions
-
Q: Does this fit all R35 GT-R turbochargers?
A: Yes, direct bolt-on for both left and right OEM turbos on 2008+ Nissan R35 GT-R across all submodels -
Q: What material is the diaphragm made from?
A: High-temperature Nomex reinforced silicone for superior heat resistance and longevity -
Q: Is warranty coverage included?
A: Turbosmart offers a limited lifetime warranty on manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed at 7 x 7 x 5 inches
- Weight: 1.80 lbs
