SKU: TS-0505-2008 | UPC: 9329677010688

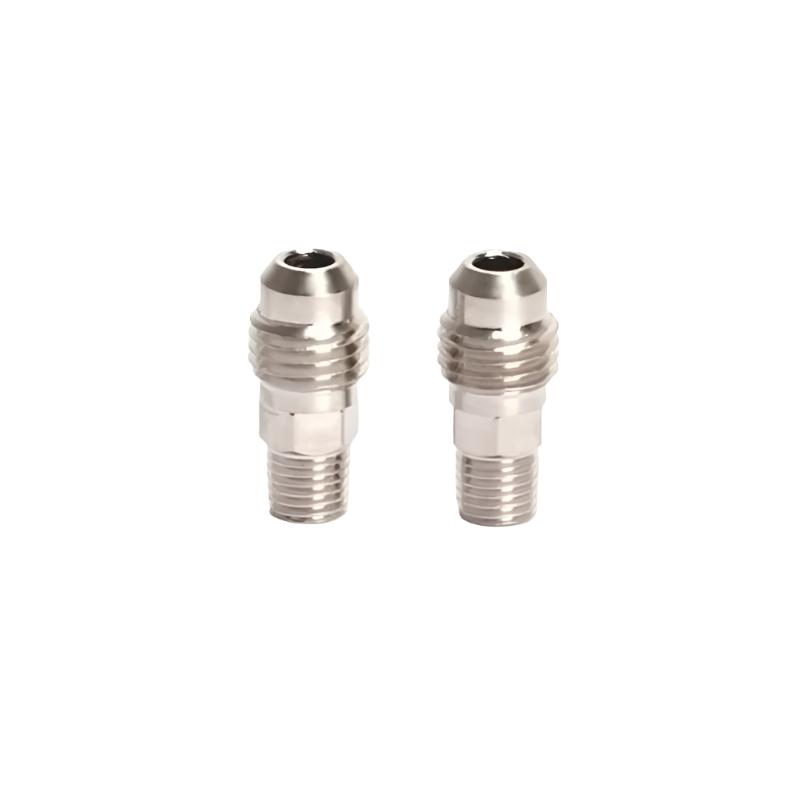

Turbosmart 1/16in NPT Male AN-3 Flare Fitting Adapter
This Turbosmart straight adapter fitting connects 1/16in NPT male ports to AN-3 male flare lines for reliable plumbing in turbochargers fuel systems and sensors. Designed for universal use across performance vehicles it handles high pressures without leaks. Manufactured in Sydney Australia it sets a benchmark in fitting reliability for custom fabrication.
Key Features
- Material: CNC machined from billet 6061-T6 aluminum for strength lightweight construction and corrosion resistance
- Thread Specs: 1/16in NPT male to -3AN male 37-degree flare for secure leak-proof connections under boost or fuel pressure
- Finish: Black anodized coating protects against wear fuel and oils while maintaining a professional look
- Design: Straight adapter ensures clean inline flow ideal for tight spaces in engine bays
- Versatility: Works with EFI fuel oil coolant vacuum and boost reference lines in racing or street applications
Product Notes
- Inspect flare seat and threads before installation to ensure proper sealing
- Compatible with ethanol-blended fuels and synthetic oils
- Packaged securely to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Apply PTFE tape or anaerobic sealant to NPT male threads only do not use on flare side
- Torque to 10-15 ft-lbs using 1/2in and 3/8in flare wrenches for AN-3
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | Fuel Oil Boost Plumbing |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with focus on quality and reliability
- Innovative design strict quality control and rigorous testing in dedicated facility
- Extraordinary service and support for performance enthusiasts worldwide
Frequently Asked Questions
-
Q: What types of lines does this fitting support?
A: Handles fuel oil coolant vacuum and air pressure lines rated for motorsport conditions up to 1000psi -
Q: What is the construction material and finish?
A: Billet 6061-T6 aluminum body with durable black anodized finish for longevity in harsh environments -
Q: What tools are needed for installation?
A: Standard AN flare wrenches 3/8in and 1/2in plus thread sealant for NPT side no special tools required
Shipping & Handling
- Method: UPS USPS or FedEx ground
- Availability: In stock - ships same or next business day
- Packaging: Protective plastic bag in 3in x 2in x 1in box
- Weight: 0.05 lbs
