SKU: TS-0505-2009 | UPC: 9329677010695

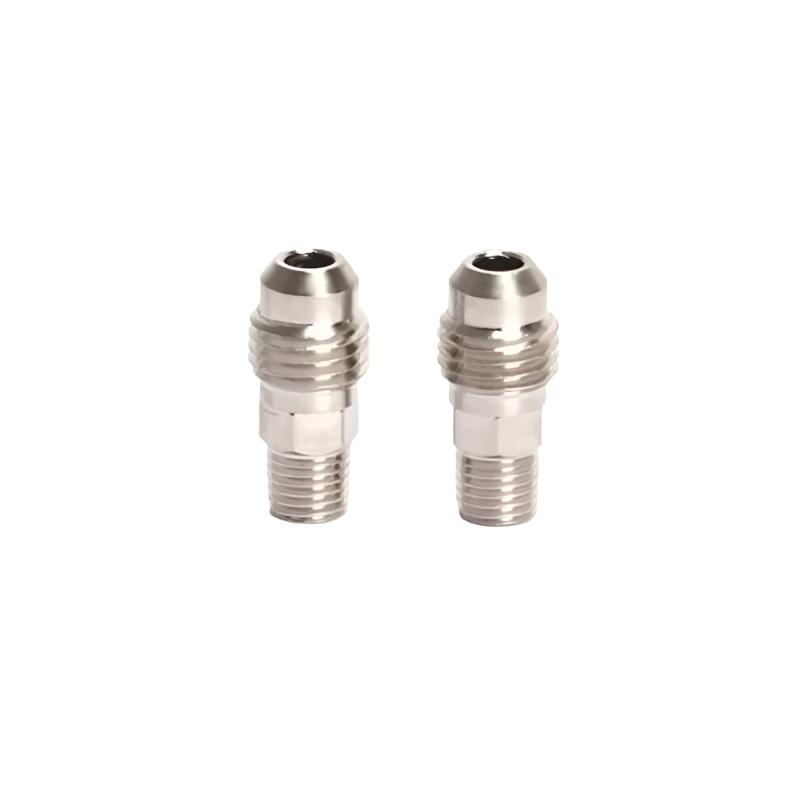

Turbosmart 1/16in NPT Male AN-4 Flare Fitting
This straight adapter fitting joins 1/16in NPT male threads to AN-4 female flare for secure sensor installations like boost gauges and MAP sensors. Designed for universal use in turbocharged performance cars trucks and race builds. Delivers leak-free performance under high boost pressures with direct compatibility to standard AN plumbing.
Key Features
- Precision CNC Machining: Crafted from 6061-T6 billet aluminum for exact tolerances and enduring strength in demanding conditions
- AN-4 Female Flare: Matches -4 AN hose ends with 37-degree flare seal to prevent leaks in fuel oil or air lines
- 1/16in NPT Male Thread: Standard size for common automotive sensors ensuring straightforward plug-and-play setup
- Black Anodized Finish: Provides corrosion resistance and smooth mating surfaces for repeated assembly
- High-Pressure Rating: Handles up to 1000 PSI safely supporting boosted applications without failure
Product Notes
- Use PTFE tape or sealant on NPT threads for optimal sealing during installation
- Suitable for vacuum boost fuel and oil sensor connections in performance setups
- Inspect fittings regularly for wear in high-vibration environments
Installation Notes
- Professional installation recommended.
- Apply thread sealant to NPT male end and torque to 10-15 ft-lbs
- Compatible with all standard AN-4 hose ends and aluminum fittings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Turbocharged Builds |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in racing
- Innovative design strict quality control and rigorous testing in dedicated facility
- Extraordinary service and after-sales support for performance community needs
Frequently Asked Questions
-
Q: What sensors does this fitting connect to?
A: Fits 1/16in NPT sensors including MAP boost gauges fuel pressure senders and wideband O2 sensors in turbo setups -
Q: What material construction and finish?
A: CNC machined from 6061-T6 aluminum with durable black anodized coating for corrosion resistance and heat tolerance -
Q: What warranty coverage?
A: Backed by Turbosmart limited lifetime warranty against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact poly bag inside 3 x 2 x 1 inch box
- Weight: 0.05 lbs
