SKU: TS-0615-3142 | UPC: 9329677014808
Turbosmart 11-14 Nissan Juke 1.6L / 15 Nismo Juke RS Turbo 14 PSI Internal Wastegate Kit
This Turbosmart TS-1 50mm turbocharger kit delivers 14 PSI of boost via an internal wastegate for 2011-2017 Nissan Juke 1.6L models including Nismo and Nismo RS. It replaces the factory turbo with a direct bolt-on design featuring dual ceramic ball bearing CHRA for faster spool and durability. Hand-crafted in Sydney Australia since 1997 with strict quality control and testing.
Key Features
- Dual Ceramic Ball Bearing CHRA: Reduces friction for quicker spool-up and supports higher shaft speeds up to 200,000 RPM
- 50mm Inducer / 60mm Exducer Turbine: Efficient airflow matches stock manifold and downpipe for seamless power gains

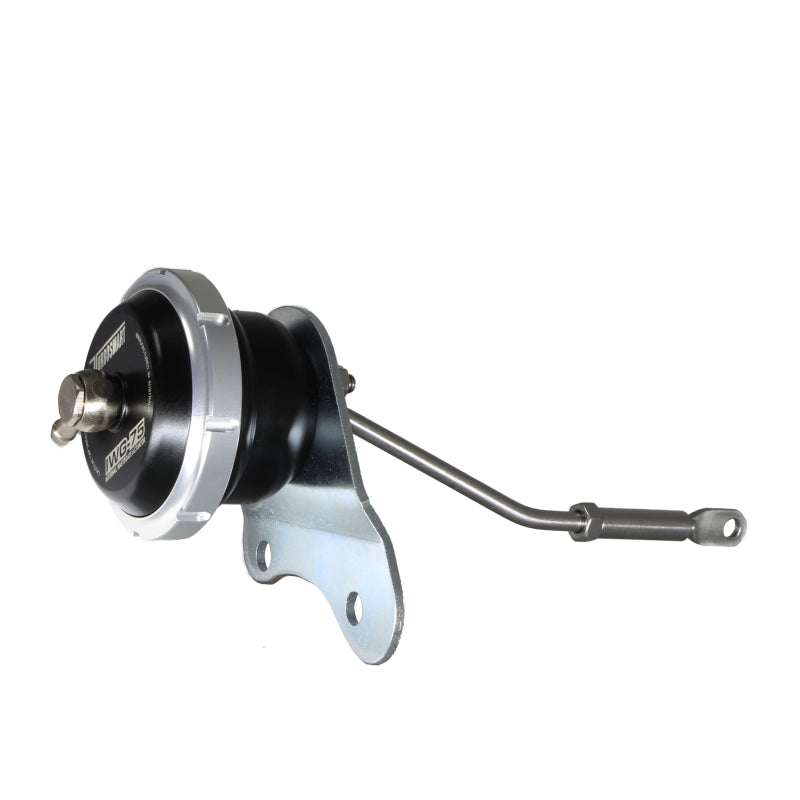

- 14 PSI IWG75 Actuator: Factory preset spring maintains consistent boost control across RPM range
- 347SS Investment Cast Housing: High-temperature resistant turbine housing endures extreme exhaust gas temperatures
- Liquid Cooled Center Housing: Protects bearings during prolonged high-boost operation
Product Notes
- Direct bolt-on replacement no modifications required to engine or exhaust
- Includes turbocharger assembly oil feed line and mounting hardware
- Securely packaged to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Drain engine oil before install and prime turbo with oil prior to startup
- Compatible with factory downpipe and manifold hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2017 | Nissan | Juke | Nismo |
| 2014-2017 | Nissan | Juke | Nismo RS |
| 2011-2017 | Nissan | Juke | S |
| 2011-2017 | Nissan | Juke | SL |
| 2011-2017 | Nissan | Juke | SV |
Why Choose Turbosmart?
- Designed and manufactured in Sydney Australia with innovative engineering
- Hand-crafted quality and rigorous testing for reliability in performance applications
- Proven track record since 1997 with strong after-sales support
Frequently Asked Questions
-
Q: Will this fit my 2011 Nissan Juke S 1.6L?
A: Yes it bolts directly to 2011-2017 Juke 1.6L models including S SL SV Nismo and Nismo RS with MR16DDT engine -
Q: What materials are used in construction?
A: 347 stainless steel turbine housing billet aluminum compressor cover and Nitronic 60 valve seat for extreme durability -
Q: What warranty coverage is provided?
A: Turbosmart offers a limited lifetime warranty on the turbocharger for manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Foam protected box 24 x 18 x 16 inches
- Weight: 25 lbs
