-10%

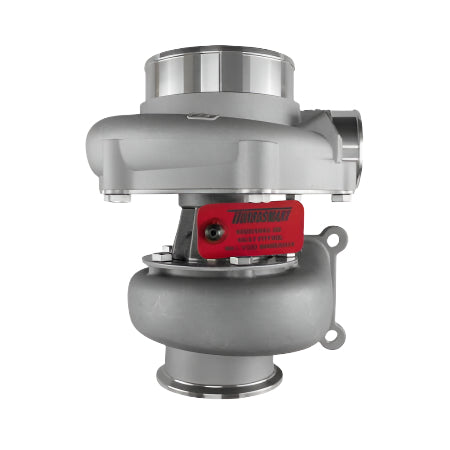

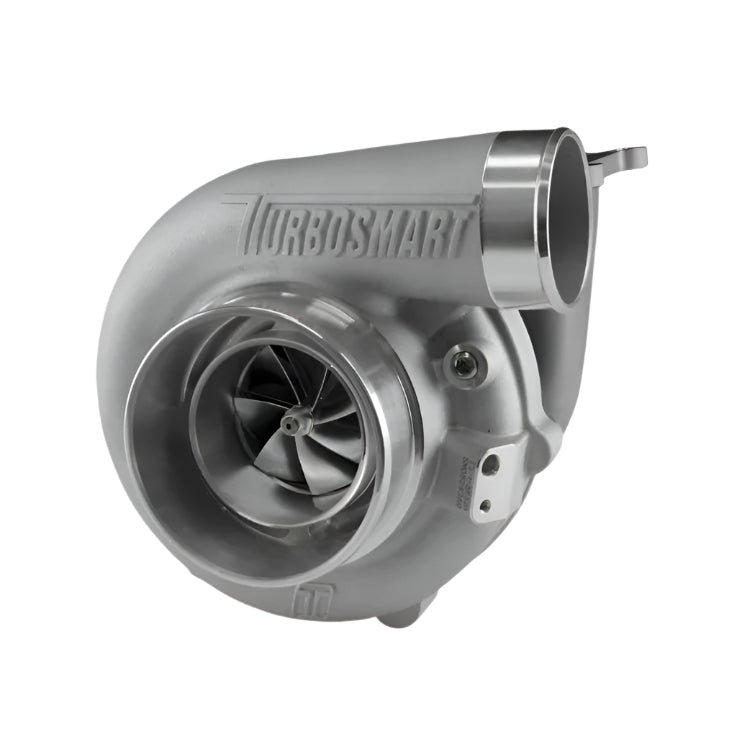

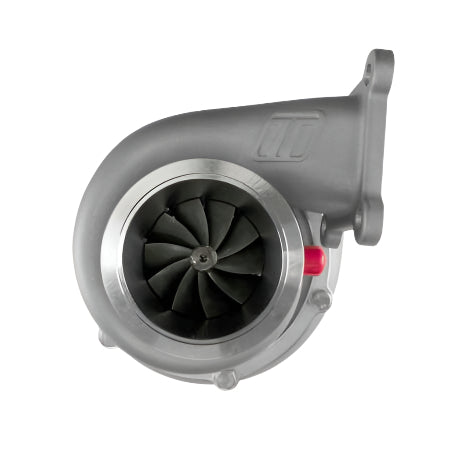

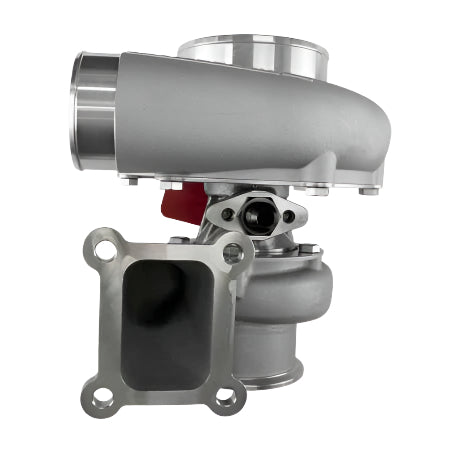

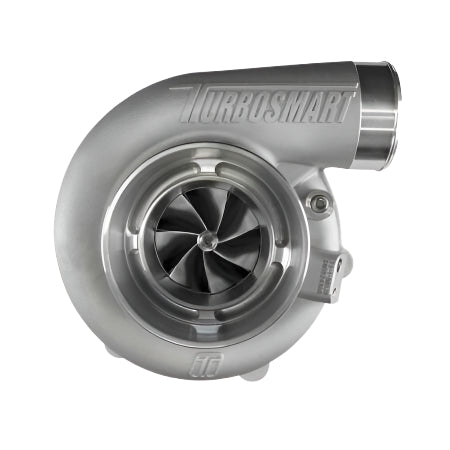

TS-1 Performance Turbocharger 5862 T4 0.82AR Externally Wastegated
TS-1 Performance Turbocharger 5862 T4 0.82AR Externally Wastegated
TS-1 Performance Turbocharger 5862 T4 0.82AR Externally Wastegated
TS-1 Performance Turbocharger 5862 T4 0.82AR Externally Wastegated
User 1
Click to zoom in

Turbosmart 5862 T4 0.82AR Externally Wastegated TS-1 Turbocharger

Turbosmart
TURTS-1-5862B-T4082E
9329677030198
Turbochargers
5 Units In Stock - Ships Next Business Day
$ 2,323.99 $ 2,091.59
$ 2,091.59

SKU: TS-1-5862B-T4082E | UPC: 9329677030198

Turbosmart 5862 T4 0.82AR Externally Wastegated TS-1 Turbocharger

The Turbosmart TS-1 5862 T4 0.82AR externally wastegated turbocharger supports 600-750HP in performance applications on engines like Toyota 2JZ-GTE Nissan RB26DETT Subaru EJ255 EJ257 and Mitsubishi 4G63. This oil-cooled unit features a compact lightweight design for quick spool and high flow. It includes all fittings flanges clamps and gaskets for straightforward setup in custom turbo builds.

Key Features

  • Transient Response: Proprietary dual ceramic bearing system and low-mass shaft deliver instant boost buildup for track or street driving.
  • Aerodynamics: 7+7 splitter compressor wheel with aggressive design provides high efficiency at low and high RPM.
  • Turbine Housing: Lightweight 310s stainless steel investment casting handles extreme temperatures while reducing weight.
  • Compressor Cover: Aluminium construction cuts rotational inertia for faster spool times.
  • Turbine Wheel: T14 Inconel material withstands high EGTs paired with 62mm exducer and 0.82AR for strong top-end power.

Product Notes

  • Complete kit includes V-band clamps oil feed drain fittings weld flanges and gaskets.
  • External wastegate port requires compatible wastegate for full control.
  • Weight 6.06kg 13.3lbs keeps engine bay balanced.

Installation Notes

  • Professional installation recommended.
  • T4 divided inlet flange bolts to most aftermarket manifolds.
  • 3.00in V-band turbine outlet uses standard clamps.

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-2002 Nissan Skyline GT-R RB26DETT
2002-2021 Subaru Impreza WRX STI EJ255 EJ257
1989-1999 Mitsubishi Eclipse Talon 4G63T DSM
Universal Various Performance Builds 600-750HP

Why Choose Turbosmart?

  • Engineered for motorsport with real-world testing.
  • Investment cast housings and Inconel wheels ensure durability.
  • VSR balanced for reliability at high speeds.

Frequently Asked Questions

  • Q: What engines is this turbo suited for?
    A: Ideal for 2.0L-3.0L engines like 2JZ-GTE RB26DETT EJ257 4G63 targeting 600-750HP in custom setups.
  • Q: Is this turbo oil or water cooled?
    A: TS-1 series uses oil cooling only with integrated iron backplate on center housing.
  • Q: What is included for installation?
    A: Oil feed drain fittings V-band clamps weld flanges and gaskets come standard.

Shipping & Handling

  • Method: Ground shipping
  • Availability: In stock - ships same or next business day
  • Packaging: Original Turbosmart box 16x16x16in
  • Weight: 13.3lbs

Request For Information

Have questions about Turbosmart 5862 T4 0.82AR Externally Wastegated TS-1 Turbocharger? Fill out the form below and we'll get back to you by the next business day.
