TURTS-1-6466B-T3110E-Turbosmart 6466 T3 01.10AR Externally Wastegated TS-1 Turbocharger-Turbochargers-Turbosmart
Click to zoom in

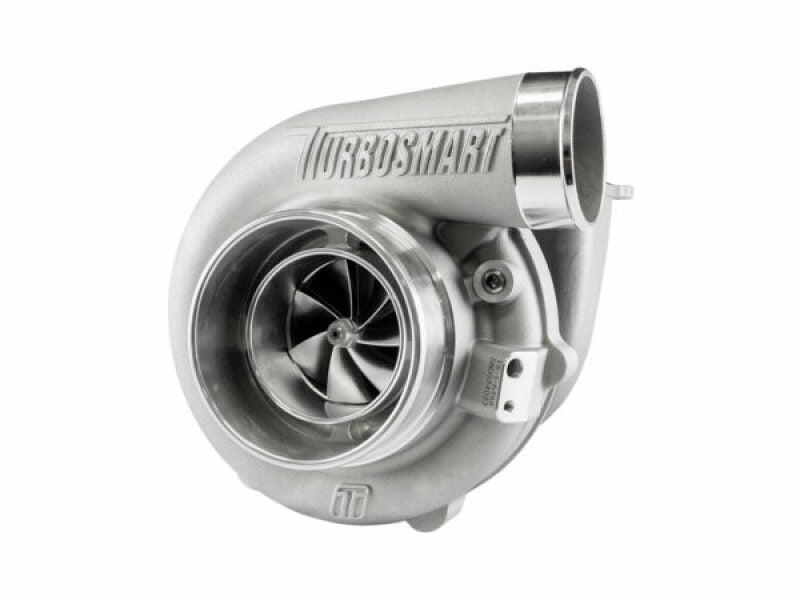

Turbosmart 6466 T3 01.10AR Externally Wastegated TS-1 Turbocharger

Turbosmart
TURTS-1-6466B-T3110E
9329677030228
Turbochargers
Out of stock
$ 2,547.99 $ 2,293.19

SKU: TS-1-6466B-T3110E | UPC: 9329677030228

Turbosmart 6466 T3 01.10AR Externally Wastegated TS-1 Turbocharger

This Turbosmart TS-1 turbocharger features a 64mm billet compressor and 66mm Inconel turbine in a T3 divided housing with 1.10 A/R for external wastegate setups. It suits performance builds on 2.0-2.5L inline-four engines like Subaru EJ20/EJ25 or Nissan SR20DET. Expect spool by 3500-4000 RPM and power from 500-800HP with proper tuning and fueling.

Key Features

  • Dual Ceramic Ball Bearings: Reduces friction for quicker spool times and supports 150,000+ RPM operation with oil and water cooling.
  • Billet Compressor Wheel: 64.77mm inducer x 86.48mm exducer with 9+2 blades delivers high airflow efficiency up to 70+ lbs/min.
  • Inconel Turbine Wheel: 66.55mm exducer withstands extreme EGTs over 1050C for reliable high-boost performance.
  • T3 Divided Housing 1.10 A/R: V-band outlet and external wastegate port allow precise boost control and easy integration with T3 manifolds.
  • 360 Degree Thrust Bearing: Handles high boost levels with minimal wear for consistent power delivery across RPM range.

Product Notes

  • Requires compatible T3 divided inlet manifold and external wastegate like Turbosmart IWG75 or Comp-Gate.
  • Professional ECU tuning essential after installation to match boost and fueling.
  • Securely packaged for safe transit with foam inserts in original box.

Installation Notes

  • Professional installation recommended.
  • Verify manifold flange matches T3 divided inlet and V-band turbine outlet.
  • Uses standard oil and water lines from factory turbo setups or aftermarket kits.

This Part Fits

Year Make Model Submodel
2002-2007 Subaru Impreza WRX
2004-2009 Subaru Impreza STI
2008-2014 Subaru Impreza WRX STI
1995-1999 Mitsubishi Eclipse GSX
1991-2002 Nissan 240SX S13/S14 SR20DET
1989-1998 Nissan Skyline R32/R33 RB25DET

Why Choose Turbosmart?

  • Engineered in Australia with motorsport heritage from World Rally and Top Fuel Drag racing.
  • Investment cast housings and precision CNC wheels ensure consistent performance.
  • Advanced dual ball bearing CHRA design proven in high-stress competition environments.

Frequently Asked Questions

  • Q: What power range does this turbo support?
    A: Rated for 500-800HP on 2.0-2.5L engines with supporting mods like injectors, pump, and intercooler.
  • Q: Is the center housing oil and water cooled?
    A: Yes, features water and oil cooled CHRA for extended life in street and track use.
  • Q: What warranty is provided?
    A: Turbosmart offers a 24-month warranty on the CHRA with registration. contact support for full terms.

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: Special order - typically ships within 5-7 business days
  • Packaging: Original Turbosmart box with protective foam, 20 x 18 x 18 inches
  • Weight: 24.2 lbs
