TURTS-1-6466B-D4084E-Turbosmart 6466 T4 Divided 0.84AR Externally Wastegated TS-1 Turbocharger-Turbochargers-Turbosmart
Click to zoom in

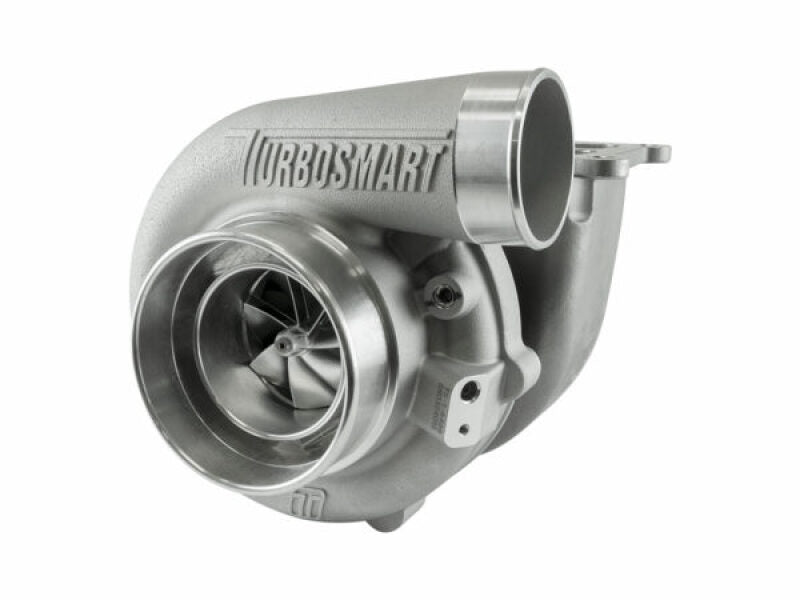

Turbosmart 6466 T4 Divided 0.84AR Externally Wastegated TS-1 Turbocharger

Turbosmart
TURTS-1-6466B-D4084E
9329677030679
Turbochargers
1 Units In Stock - Ships Next Business Day
$ 2,631.99 $ 2,368.79
$ 2,368.79

SKU: TS-1-6466B-D4084E | UPC: 9329677030679

Turbosmart 6466 T4 Divided 0.84AR Externally Wastegated TS-1 Turbocharger for 2003-2007 Dodge Ram 5.9L Cummins

The Turbosmart 6466 T4 Divided 0.84AR Externally Wastegated TS-1 Turbocharger delivers high power output and fast spool for 2003-2007 Dodge Ram 2500 and 3500 trucks equipped with 5.9L Cummins diesel engines. This ball-bearing turbocharger bolts directly onto stock T4 divided manifolds and supports 450-750 rear wheel horsepower with precise boost control. Built for diesel performance enthusiasts it combines hybrid wheel technology with robust construction for daily driving or racing.

Key Features

  • Ball Bearing CHRA: Reduces friction for spool-up at 2200 RPM and supports 150000 RPM shaft speeds on 5.9L Cummins
  • Divided T4 Inlet Housing: Captures exhaust pulses from divided manifolds for improved turbine drive and low-end torque
  • 0.84 A/R Turbine Housing: V-band outlet with external wastegate port balances mid-range response and top-end flow
  • Billet Compressor Wheel: 64mm inducer 82mm exducer design flows 110 lbs/min for efficient air delivery
  • Inconel Turbine Wheel: 66mm inducer handles extreme EGTs over 1600F with investment cast 347SS housing

Product Notes

  • External wastegate required sold separately for full boost control
  • Oil and water cooled center housing includes fittings for easy plumbing
  • Special order item allow 3-5 business days for processing

Installation Notes

  • Professional installation recommended.
  • Bolts directly to stock 5.9L Cummins T4 manifold no adapter needed
  • Supplied with dual V-band inlet clamps and hardware for secure mounting

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 5.9L Cummins Diesel
2004.5-2007 Dodge Ram 2500 5.9L 24V Cummins
2004.5-2007 Dodge Ram 3500 5.9L 24V Cummins

Why Choose Turbosmart?

  • Proven in Australian motorsport and global diesel racing
  • Hand-assembled with aerospace-grade materials for durability
  • Engineered for bolt-on fitment and real-world power gains

Frequently Asked Questions

  • Q: Will this turbo fit my 2003-2007 Dodge Ram 5.9L Cummins?
    A: Yes it is a direct bolt-on replacement using the factory T4 divided manifold and exhaust outlet position
  • Q: What materials are used in construction?
    A: Billet aluminum compressor cover Inconel turbine wheel and 347 stainless steel housing resist heat and corrosion
  • Q: What warranty coverage is provided?
    A: Turbosmart provides a limited lifetime warranty on the CHRA with registration contact support for details

Shipping & Handling

  • Method: Ground shipping via UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Securely boxed 24 x 18 x 16 inches
  • Weight: 26 lbs
