SKU: TS-1-6870B-VR096E | UPC: 9329677031065

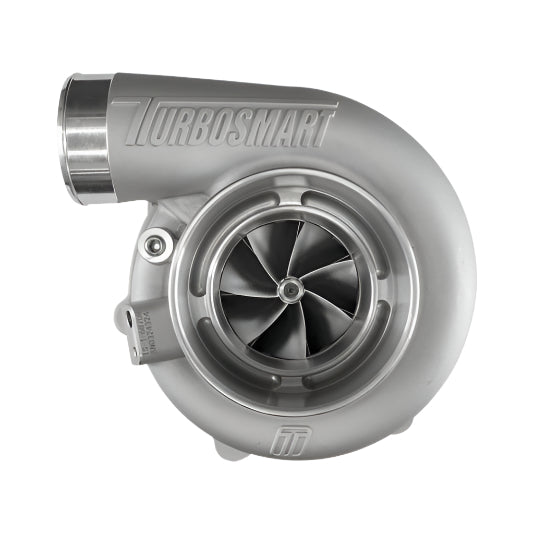

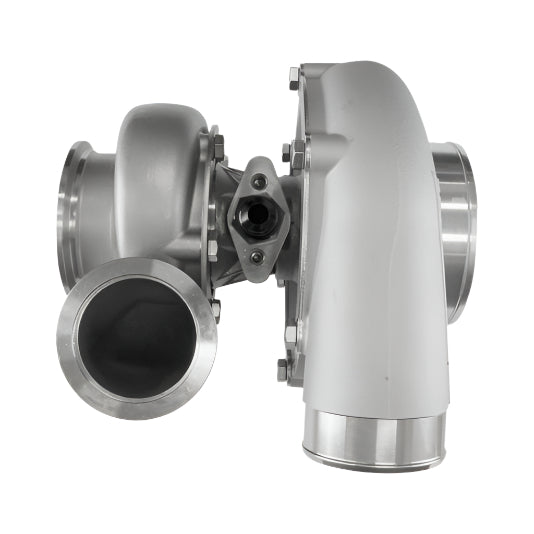

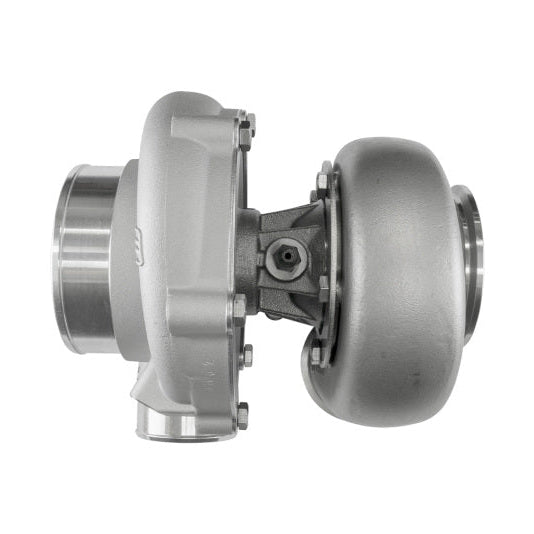

Turbosmart 6870B V-Band Reverse Rotation 0.96AR Externally Wastegated TS-1 Turbocharger
This Turbosmart TS-1 turbocharger features a 68mm compressor inducer and 70mm turbine exducer in a compact reverse rotation design with V-band housings and 0.96AR turbine for high-flow performance up to 850-990HP. It suits custom high-performance engine builds on 2.0L-3.5L inline-four, inline-six, or rotary engines requiring passenger-side packaging. Oil-cooled construction with included fittings ensures quick installation and rapid transient response for track or street use.
Key Features
- Proprietary dual ceramic bearing system: Reduces rotating mass for immediate spool-up and sustained high-RPM performance
- 7+7 splitter wheel aerodynamics: Provides aggressive compressor maps with high efficiency at lower shaft speeds
- T14 Inconel turbine wheel: Handles extreme exhaust gas temperatures while maintaining flow at high loads
- Lightweight 310s stainless investment cast turbine housing: Cuts weight to 6.43kg while optimizing A/R and backpressure
- Aluminium compressor cover with CFD design: Ensures precise airflow and compact fitment with 4-inch inlet
Product Notes
- Includes weld flanges, V-band clamps, gaskets, oil feed and drain fittings for complete installation
- Oil-cooled only. external wastegate port requires compatible wastegate (sold separately)
- VSR speed balanced assembly with integrated iron backplate on center housing
Installation Notes
- Professional installation recommended.
- Requires custom V-band turbine manifold (3-inch inlet/outlet) and oil supply/drain lines
- Reverse rotation suits right-side engine bay packaging. verify boost piping routing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Custom Builds | Performance Engines | 2.0L-3.5L I4/I6/Rotary 850-990HP |
| - | Nissan | RB25/RB26/SR20 | All (Custom Manifold) |
| - | Toyota | 2JZ-GTE | All (Custom Manifold) |
| - | Subaru | EJ20/EJ25 | All (Custom Manifold) |
Why Choose Turbosmart?
- Proven in motorsport with direct-to-consumer support
- Investment cast housings and modern materials reduce size and weight
- End-to-end engineering focuses on low backpressure and high flow
Frequently Asked Questions
-
Q: What engines does this turbo fit?
A: Universal for custom manifolds on 2.0L-3.5L performance engines like Nissan RB/SR, Toyota 2JZ, Subaru EJ series up to 850-990HP -
Q: What materials are used in construction?
A: T14 Inconel turbine wheel, 310s stainless turbine housing, aluminium compressor cover, dual ceramic bearings -
Q: What is included and warranty details?
A: Includes all fittings and clamps. backed by Turbosmart limited lifetime warranty on defects with registration
Shipping & Handling
- Method: Ground shipping via LTL for heavy items
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed turbo assembly
- Weight: 6.43kg / 14.17lbs
