SKU: TS-1-7675C-VR096E | UPC: 9329677030075

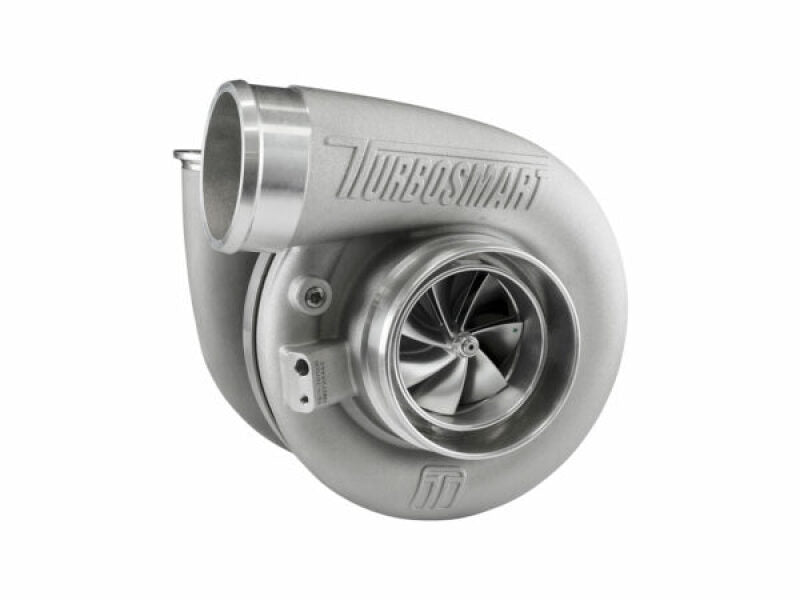

Turbosmart 7675 V-Band Reverse Rotation 0.96AR Externally Wastegated TS-1 Turbocharger
The Turbosmart 7675 V-Band Reverse Rotation 0.96AR Externally Wastegated TS-1 Turbocharger sets a new standard for high-output custom applications. Designed for reverse rotation setups on passenger-side manifolds or right-hand drive vehicles it fits custom builds on Toyota 2JZ Chevrolet LS Nissan RB26 and Subaru EJ platforms. Expect rapid spool-up low-end response and airflow for 600-850HP with precise external wastegate control.
Key Features
- Reverse Rotation Design: Enables seamless fitment on the right side of engine bays or RHD vehicles maintaining full flow efficiency and boost response.
- Dual Ceramic Ball Bearing CHRA: Minimizes friction for quicker spool times under 3500RPM and withstands extreme heat cycles for long-term durability.
- V-Band Connections: Compressor inlet outlet and turbine outlet use secure V-band clamps for leak-free assembly and effortless servicing.
- 0.96 A/R T4 Divided Turbine Housing: Balances mid-range torque and top-end power with external wastegate port for adjustable boost without internal restrictions.
- High-Flow Forged Wheels: 67mm inducer 75mm exducer compressor wheel in 2618 aluminum pairs with 75mm inducer 67mm exducer Inconel turbine for massive airflow.
Product Notes
- Oil and water cooled CHRA requires dedicated feed and drain lines during installation.
- Pair with Turbosmart external wastegate and matching V-band dump pipe for complete setup.
- Custom intake and exhaust piping fabrication typically required based on engine bay layout.
Installation Notes
- Professional installation recommended.
- Manifold must match T4 divided inlet flange with V-band turbine outlet compatibility.
- Secure oil restrictor and water fittings to CHRA ports using AN-4 lines minimum.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-2005 | Toyota | Supra | 2JZ-GTE Custom |
| 1995-2002 | Nissan | GT-R R33/R34 | RB26DETT Custom |
| 1997-2013 | Chevrolet | Corvette C5/C6 | LS1/LS6/LS2 Custom |
| 2004-2021 | Subaru | WRX STI | EJ25 Custom |
| Universal | Various | High HP Builds | LS/2JZ/RB/EJ |
Why Choose Turbosmart?
- Motorsport heritage with wins in Australian drag racing and global events.
- Investment cast housings and forged billet components built for 40psi+ boost.
- Hand-assembled in Australia with strict quality controls for consistent performance.
Frequently Asked Questions
-
Q: What engines does the reverse rotation suit best?
A: Ideal for passenger-side LS V8s Toyota 2JZ inline-six Nissan RB26 and Subaru EJ/FB fours in custom turbo manifolds. -
Q: What materials are used in construction?
A: Compressor wheel in lightweight 2618 forged aluminum turbine wheel in high-temp Inconel housings in nickel-chromium investment casting. -
Q: What warranty coverage applies?
A: Backed by Turbosmart 2-year unlimited kilometer warranty when installed and maintained per guidelines.
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: Special order - typically ships within 3-7 business days
- Packaging: Securely boxed with foam inserts dimensions approximately 16 x 16 x 16 inches
- Weight: 17.60 lbs
