SKU: TS-1-7880C-T4124E | UPC: 9329677030266

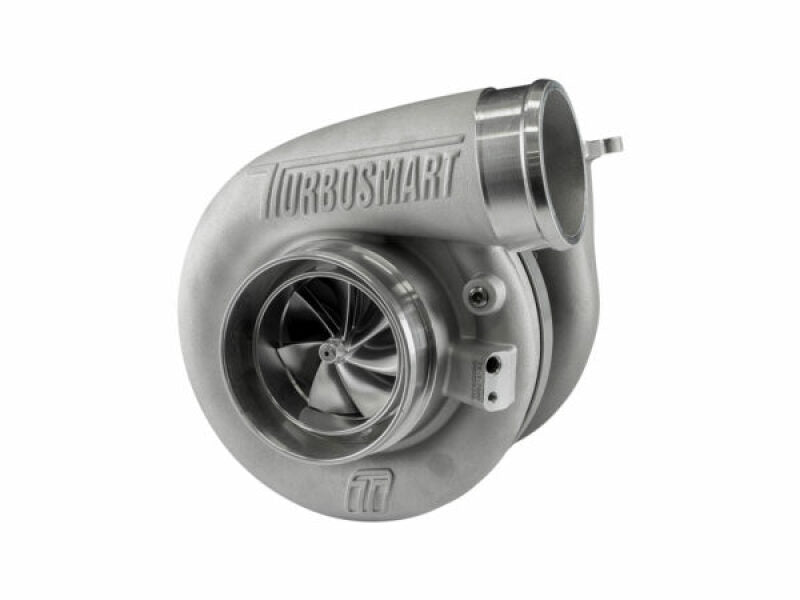

Turbosmart 7880 T4 1.24AR Externally Wastegated TS-1 Turbocharger Universal High HP Fitment
The Turbosmart 7880 T4 1.24AR Externally Wastegated TS-1 Turbocharger pushes engines to 1100hp with its high flow design for drag racing and track builds. This universal turbo fits custom manifolds on inline 4 6 cylinder and V8 engines requiring massive boost. Ball bearing center housing ensures quick spool while external wastegate port delivers exact boost levels.
Key Features
- Billet Compressor Wheel 78mm/80mm: Extended tip design handles 1100hp airflow with peak efficiency across RPM range for strong top end power
- Dual Ceramic Ball Bearing CHRA: Oil and water cooled setup cuts friction for 25 percent faster spool and withstands 150000 miles of abuse
- External Wastegate T4 Divided Housing 1.24 A/R: V-band outlet integrates with Turbosmart Racegate for dead accurate boost control without turbine restriction
- Inconel 80mm Turbine Wheel: Forged for 1050 degree C exhaust temps with 99mm inducer for smooth exhaust flow in divided housing
- 4 Inch Compressor Inlet A/R 0.82: Anti surge ported housing feeds 78mm inducer with 360 degree aerodynamics for lag free response
Product Notes
- Requires custom T4 divided exhaust manifold and external wastegate sold separately
- Oil feed M12x1.25 and drain M8x1.25 restrictor included water ports M14x1.5
- Clears most setups box dimensions 18 x 16 x 16 inches
Installation Notes
- Professional installation recommended.
- Prime oil system before startup use 5w40 synthetic oil minimum
- Hardware kit includes V-band clamps turbine outlet 3 inch V-band
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE |
| 1989-1998 | Nissan | Skyline | GT-R R32/R33/R34 RB26DETT |
| 1986-2002 | Toyota | Supra | 2JZ-GTE MKIV JZA80 |
| Universal | Various | Inline4/6 V8 | Custom Drag/Track Builds |
Why Choose Turbosmart?
- Motorsport proven in World Street Drag Racing Championship wins
- CNC machined housings from billet aluminum and investment cast turbine
- Every turbo dyno tested and balanced before shipping
Frequently Asked Questions
-
Q: What horsepower range does this turbo support
A: Rated for 900-1100hp on gasoline supports E85 with proper fueling on 2.0L to 5.0L engines -
Q: What materials are used in construction
A: Billet 2618 compressor wheel Inconel 713 turbine high nickel CHRA housing 347SS investment cast -
Q: Does it include installation hardware or wastegate
A: Includes V-band clamps bolts gaskets oil fittings external wastegate separate purchase required
Shipping & Handling
- Method: Ground UPS/FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective double wall box 18 x 16 x 16 inches
- Weight: 24 lbs
