SKU: TS-0223-1091 | UPC: 9329677020700

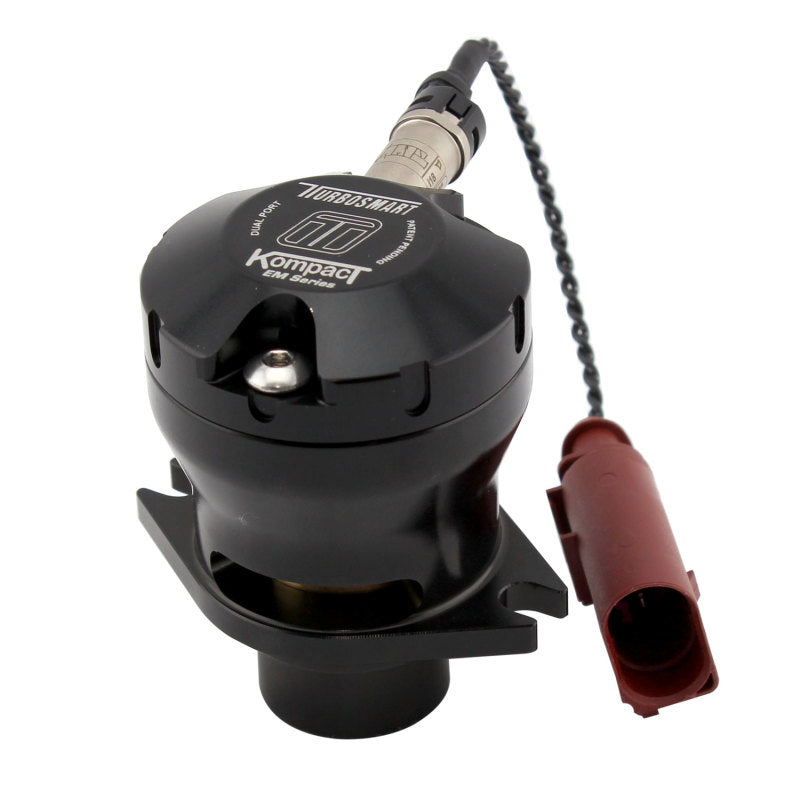

Turbosmart BOV Kompact EM Dual Port VR4 Volkswagen 1.4L TSI 2008-2017
The Turbosmart BOV Kompact EM Dual Port VR4 is an electronically controlled blow-off valve for Volkswagen 1.4L TSI engines with CHPA and CTHD codes. It provides direct bolt-on fitment for Polo 6R Golf VI and Scirocco III models. This valve manages boost pressure with dual ports for smooth operation across low and high boost levels while protecting the turbo from surge.
Key Features
- Dual Port System: Switches between recirculating and atmospheric venting for matched performance at varying boost pressures up to 200 psi.
- Integrated Solenoid Actuator: ECU-synced control with boost sensor for fast accurate response and reduced lag.
- Direct OEM Replacement: Uses factory mounting locations and hose fittings for simple installation without fabrication.
- Adjustable Spring Preload: Manual adjustment collar allows tuning to specific boost levels and engine setups.
- Billet Aluminum Construction: CNC-machined body with reinforced piston ring and seals for durability under racing conditions.
Product Notes
- Compatible with factory ECU and wiring harness plug-and-play connection.
- Retains all OEM emissions recirculation functions when needed.
- Ships pre-assembled and calibrated for immediate use.
Installation Notes
- Professional installation recommended.
- Remove OEM valve and bolt in using existing studs no cutting required.
- Compatible with stock intake piping and solenoid connector.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008-2013 | Volkswagen | Golf | VI 1.4 TSI CTHD |
| 2009-2017 | Volkswagen | Polo | 6R 1.4 TSI CHPA/CTHD |
| 2008-2017 | Volkswagen | Scirocco | III 1.4 TSI CTHD |
Why Choose Turbosmart?
- Designed and manufactured in Sydney Australia with racing heritage.
- Hand-crafted quality control and track-tested reliability.
- Innovative engineering for street and motorsport demands.
Frequently Asked Questions
-
Q: Will this fit my 2009 VW Polo 6R 1.4 TSI?
A: Yes it fits CHPA and CTHD engine codes directly with no modifications using OEM mounts and hoses. -
Q: What materials are used in construction?
A: Billet 6061 aluminum housing anodized black piston with HDIK piston seal and stainless steel springs. -
Q: What warranty coverage is provided?
A: Turbosmart offers a limited lifetime warranty against manufacturing defects when installed and used correctly.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 9 x 7 x 5 inches
- Weight: 1.1 lbs
