SKU: TS-0600-2001 | UPC: 9329677013108

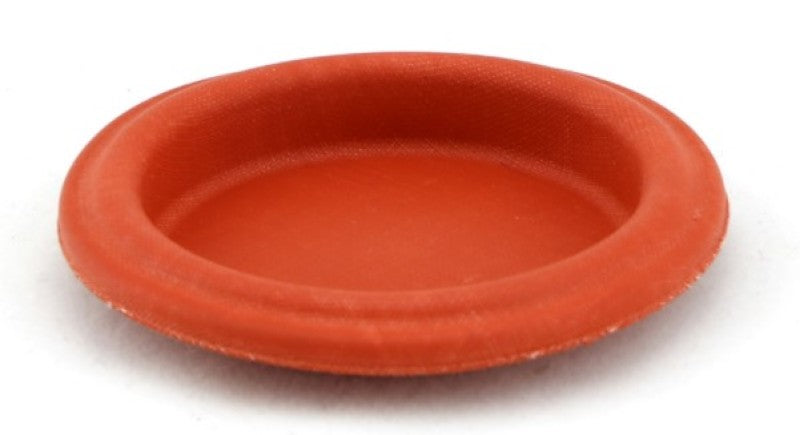

Turbosmart Diaphragm Used On IG75 Wastegates TS-0600-2001
This genuine Turbosmart replacement diaphragm fits all IG75 series internal wastegates used in performance turbocharged vehicles. It restores accurate boost response and actuator function for consistent power delivery. Built to handle extreme heat and pressure in demanding motorsport applications.
Key Features
- Silicone Construction: High-temperature reinforced silicone resists fatigue and maintains flexibility under boost pressures up to 30 psi
- Direct Fit Design: Precision molded to match original specifications for seamless replacement in IG75 wastegates
- Boost Accuracy: Delivers responsive diaphragm action to hold set boost levels without creep or flutter
- Durability: Outlasts stock diaphragms with superior tear resistance and thermal stability
- Australian Manufacturing: Hand-assembled in Sydney with rigorous testing for every unit
Product Notes
- Direct replacement for worn or damaged IG75 diaphragms to restore wastegate performance
- Inspect actuator housing for cracks before installation
- Small lightweight part ships quickly with minimal handling requirements
Installation Notes
- Professional installation recommended.
- Depressurize system and remove wastegate top cap to access old diaphragm
- Uses existing hardware no additional parts needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Turbosmart | IG75 Series Wastegate | All Variants |
| 2002-2007 | Subaru | Impreza WRX | All |
| 2004-2021 | Subaru | Impreza STI | All |
| 2008-2014 | Mitsubishi | Lancer Evolution | X |
| 2017-2021 | Subaru | WRX STI | All |
Why Choose Turbosmart?
- Products hand-crafted in Sydney Australia since 1997 for performance community trust
- Innovative design strict quality control and real-world testing in research facility
- Extraordinary after-sales support with no compromises on reliability
Frequently Asked Questions
-
Q: Will this diaphragm fit my Turbosmart IG75 wastegate?
A: Yes it is the direct OEM diaphragm used across all IG75 series wastegates including Gen1 and Gen2 models -
Q: What material is the diaphragm made from?
A: Reinforced high-temperature silicone rated for continuous use above 300C with excellent flex and pressure retention -
Q: What warranty applies to this part?
A: Covered under Turbosmart standard warranty contact support with proof of purchase for claims
Shipping & Handling
- Method: UPS Ground or USPS Priority Mail
- Availability: In stock - ships same or next business day
- Packaging: Secure padded envelope dimensions 6 x 4 x 1 inches
- Weight: 0.2 lbs
