Take full control of boost with the Turbosmart eBoost3, part number TS-0311-1000.

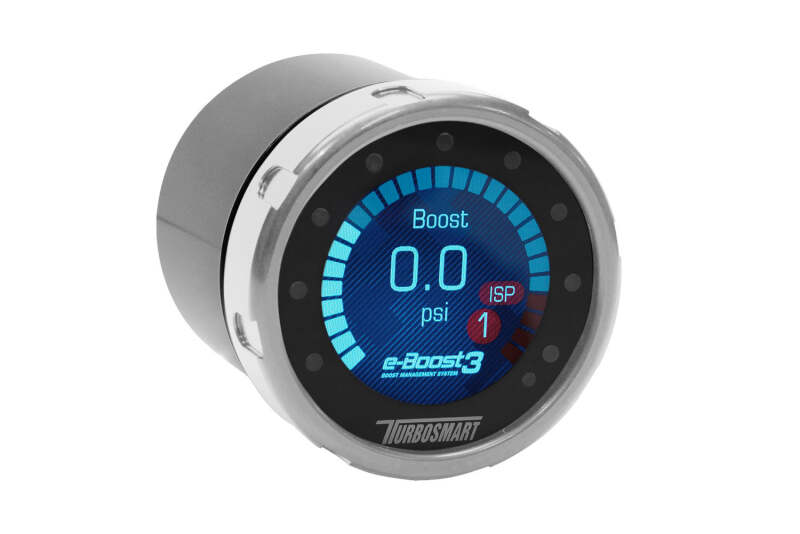

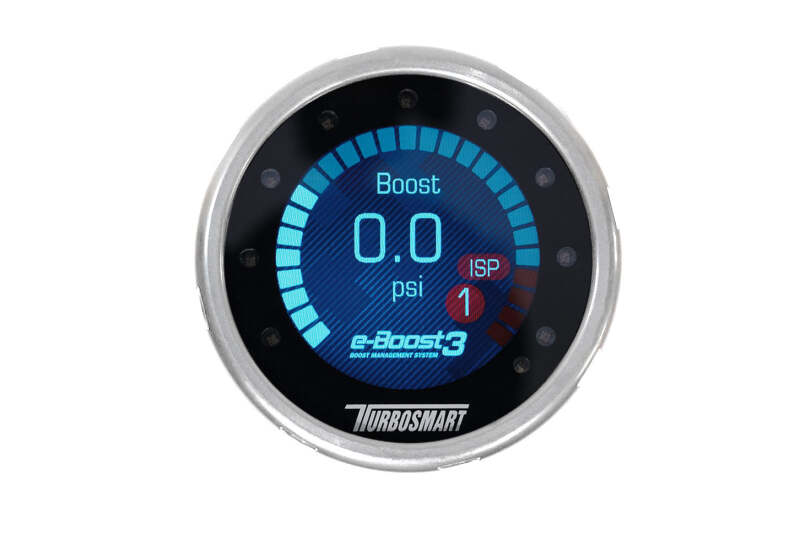

The Turbosmart eBoost3 (Silver, 60mm) is a complete electronic boost management system housed in a billet aluminum gauge body. Part number TS-0311-1000 gives you up to six programmable boost stages with a high-resolution color display and a rotating bezel for quick on-the-fly changes.
Key Features
- Billet aluminum 60mm gauge body with a full-color LCD display
- Rotating click bezel for instant on-the-fly boost adjustment
- Onboard 3 bar (higher w/ optional MAP sensor)
- Up to six programmable stages of boost by gear, RPM, time, or custom input
- Auxiliary outputs for water/methanol injection, shift lights, and warning lights
- Customizable over-boost shutdown and peak boost recall
Fitment
Universal application. Fits any turbocharged or supercharged application using a single or twin solenoid electronic boost control setup. Ports: Standard (2-port compatible, single or twin solenoid).
Specifications
| Detail | Value |
|---|---|
| color | Silver |
| size | 60mm |
| boost_range | Onboard 3 bar (higher w/ optional MAP sensor) |
| ports | Standard (2-port compatible, single or twin solenoid) |
| included | ['eBoost3 Controller', 'eBoost3-Port Solenoid Kit', 'eBoost Wiring Loom', 'Hose and Fitting Kit', 'Fitting Instructions'] |
What's Included
- eBoost3 Controller
- eBoost3-Port Solenoid Kit
- eBoost Wiring Loom
- Hose and Fitting Kit
- Fitting Instructions
About Turbosmart
Turbosmart has engineered turbo and boost management hardware since 1997, supplying wastegates, blow-off valves, and electronic boost controllers to street and motorsport builds worldwide.
FAQ
Is this a universal boost controllerYes, it fits any turbocharged or supercharged setup using a single or twin solenoid electronic boost control configuration.
What is included in the boxThe kit includes the eBoost3 controller, a boost solenoid, a wiring loom, a hose and fitting kit, and printed fitting instructions.
Do I need any special tools to install thisBasic hand tools are enough for a standard installation, along with common vacuum hose and fitting tools for the boost lines.
How many boost stages can I programYou can program up to six boost stages by gear, RPM, time, or a custom input source.
Can I monitor boost pressure without an extra gaugeYes, the onboard color display shows live boost pressure so a separate mechanical gauge is optional, though checking against one during setup is recommended.
Does this work with a single or twin solenoidIt supports both single and twin solenoid configurations through its standard two port compatible design.
Can I add water methanol injection or shift light triggersYes, the auxiliary outputs support water or methanol injection, shift lights, and warning light triggers.
Does this come with a warrantyYes, it is covered by Turbosmart's standard manufacturer warranty against defects in materials and workmanship.
Installation Instructions
- Mount the eBoost3 gauge body in a visible location using the supplied mounting bracket
- Route the supplied wiring loom to a switched 12V power source, ground, and RPM signal
- Connect the boost solenoid using the supplied hose and fitting kit between the wastegate and intake plumbing
- Power on the controller and complete the onboard setup wizard to configure boost stages
- Verify boost readings against a mechanical gauge before full-throttle use
- Adjust boost stages using the rotating bezel as needed for your setup
