Turbosmart eBG50 Electronic BoostGate - Black-Wastegates-Turbosmart-
Click to zoom in

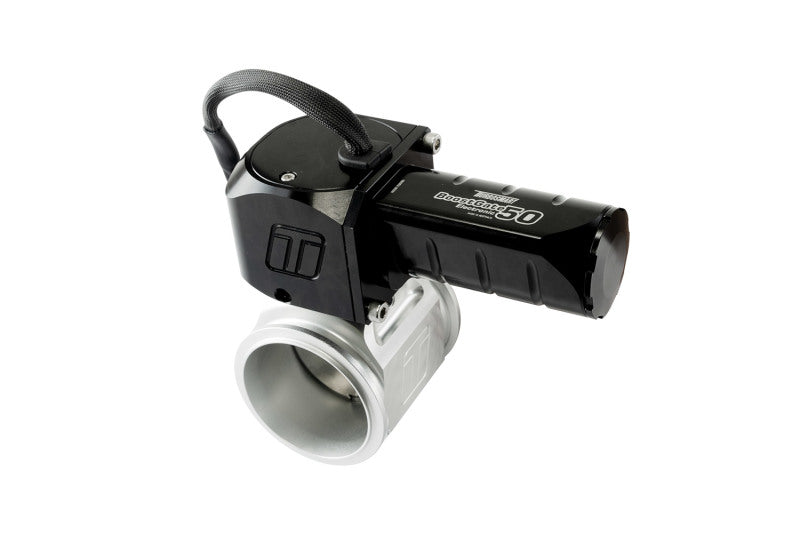

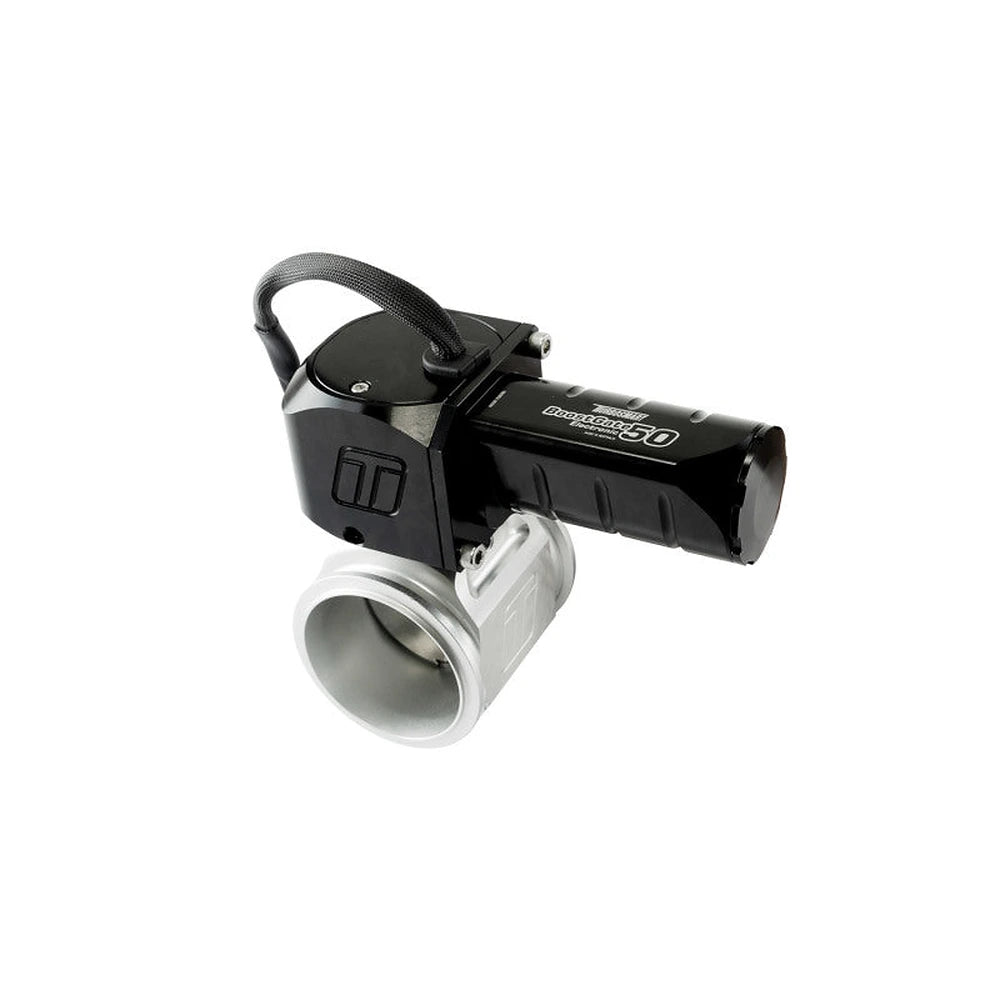

Turbosmart eBG50 Electronic BoostGate - Black

Turbosmart
TURTS-0265-1042
Wastegates
4 Units In Stock - Ships Next Business Day
$ 1,591.99 $ 1,432.79
$ 1,432.79

SKU: TS-0265-1042

Turbosmart eBG50 Electronic BoostGate - Black for 2002-2021 Subaru WRX STI Evo

The Turbosmart eBG50 Electronic BoostGate Black is a 50mm external wastegate with integrated electronic boost controller for accurate boost regulation in high-performance turbo systems. It fits Subaru WRX STI 2002-2021 Mitsubishi Lancer Evolution 2003-2016 and similar vehicles with V-band wastegate flanges on aftermarket manifolds. This setup provides fast valve response and stable boost across 5-50 psi range for consistent power delivery.

Key Features

  • 50mm Valve Size: High-flow capacity handles up to 1000+hp supports extreme boost levels with minimal restriction
  • Integrated Dual Solenoid Actuator: Electronic control enables precise boost adjustment via PWM signal from ECU or standalone controller
  • 347 Stainless Steel Body: Investment cast construction with high-temperature Silicone Nomex diaphragm for durability under heat and pressure
  • Nitronic 60 Valve Stem: Wear-resistant material ensures long-term sealing and smooth operation over thousands of cycles
  • Included Springs and Clamps: 3 5 7 10 14 psi springs plus V-band inlet outlet clamps for quick setup and tuning flexibility

Product Notes

  • Requires 12V power supply and ground connection for electronic actuator operation
  • Pair with Turbosmart ECU harness for plug-and-play boost control integration
  • Secure mounting to turbo manifold with provided V-band hardware

Installation Notes

  • Professional installation recommended.
  • Bolt-on design uses standard V-band flanges no welding required
  • Compatible with most aftermarket turbo manifolds featuring 50mm wastegate ports

This Part Fits

Year Make Model Submodel
2002-2007 Subaru Impreza WRX
2004-2021 Subaru Impreza WRX STI
2008-2014 Subaru Impreza WRX STI Hatchback
2015-2021 Subaru WRX Base STI
2003-2005 Mitsubishi Lancer Evolution VIII
2006-2007 Mitsubishi Lancer Evolution IX
2008-2015 Mitsubishi Lancer Evolution X
2009-2020 Nissan GT-R Base Premium

Why Choose Turbosmart?

  • Motorsport-proven design used in World Rally Championship and drag racing
  • Manufactured in Australia with aerospace-grade materials for reliability
  • Engineered for quick spool and hold across low to high RPM ranges

Frequently Asked Questions

  • Q: Will this fit my 2008 STI with Precision turbo manifold?
    A: Yes it mounts directly to V-band 50mm wastegate flange on Precision Full Race or similar manifolds used on STI setups
  • Q: What finish and materials are used?
    A: Black high-temp coated 347 stainless steel body Nitronic 60 stem and reinforced silicone diaphragm for heat resistance up to 800C
  • Q: What warranty coverage applies?
    A: Turbosmart provides limited lifetime warranty on manufacturing defects when installed and used per instructions

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original Turbosmart box 12 x 10 x 8 inches
  • Weight: 4.85 lbs
