SKU: TS-0223-1279 | UPC: 9329677023404

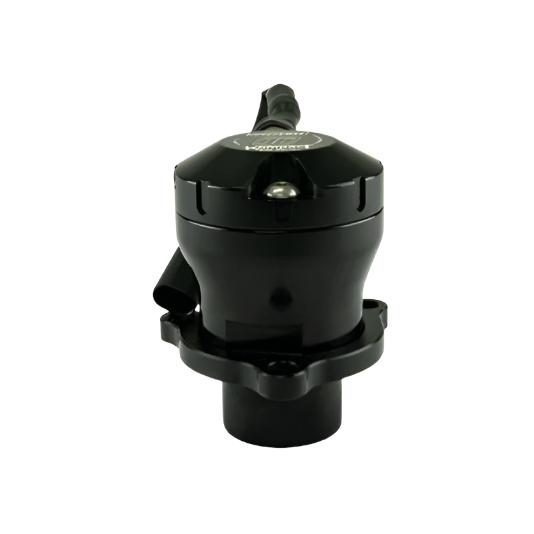

Turbosmart EM Kompact BOV Plumb Back VR18
The Turbosmart EM Kompact BOV Plumb Back VR18 is an electronically actuated blow off valve that recirculates excess boost pressure back into the intake system for quiet operation. It bolts directly onto the compressor outlet of select Garrett G-Series and BorgWarner EFR turbos found on performance vehicles. This design provides rapid response to prevent compressor surge and maintains consistent boost delivery.
Key Features
- Direct Bolt-On Fitment: Matches VR18 compressor flange on Garrett G25-550/G25-660/G30-660/G30-760/G30-900/G30-1050/G42-1450 and BorgWarner EFR 7163/9180/9280 turbos for seamless installation.
- Electronic Solenoid Actuator: PWM-controlled solenoid enables precise boost release timing and faster actuation than mechanical valves.
- Plumb Back Recirculation: Routes air back to intake pipe via 12.5mm hose tail to eliminate noise and comply with track rules.
- Tunable Spring Kit: Includes springs rated 5psi/8psi/12psi/14psi for adjustment up to 30+ psi with optional stiffer springs.
- Durable Construction: CNC-machined billet 6061 aluminum body hard anodized black with corrosion-resistant stainless steel spring.
Product Notes
- Verify turbo compressor housing uses VR18 flange before purchase.
- Wire solenoid to 12V switched ignition source and ECU PWM output for full function.
- Securely packaged in protective foam insert to prevent damage during transit.
Installation Notes
- Professional installation recommended.
- Bolts directly to turbo compressor outlet using factory-style mounting holes.
- Connect plumb back hose to pre-turbo intake pipe with compatible clamps. test for boost leaks post-install.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Garrett | G25-550 | VR18 Compressor |
| Universal | Garrett | G25-660 | VR18 Compressor |
| Universal | Garrett | G30-660 | VR18 Compressor |
| Universal | Garrett | G30-760 | VR18 Compressor |
| Universal | Garrett | G30-900 | VR18 Compressor |
| Universal | Garrett | G30-1050 | VR18 Compressor |
| Universal | Garrett | G42-1450 | VR18 Compressor |
| Universal | BorgWarner | EFR 7163 | VR18 Compressor |
| Universal | BorgWarner | EFR 9180 | VR18 Compressor |
| Universal | BorgWarner | EFR 9280 | VR18 Compressor |
Why Choose Turbosmart?
- Engineered in Australia with 25+ years in turbo management technology.
- Proven reliability in professional motorsport applications worldwide.
- Precision CNC machining ensures consistent performance under high boost.
Frequently Asked Questions
-
Q: Will this fit my Garrett G30-660 turbo?
A: Yes it fits all G30-660 turbos with the VR18 compressor inlet flange. check your housing markings to confirm. -
Q: What material and finish does it have?
A: Constructed from billet 6061-T6 aluminum with black hard anodizing for heat and corrosion resistance plus a stainless steel diaphragm spring. -
Q: What wiring is needed and is there a warranty?
A: Requires 12V switched power and PWM signal from standalone ECU. Turbosmart provides a 24-month warranty against manufacturing defects.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box 7in x 5in x 4in with foam protection
- Weight: 0.65 lbs (295g)
