TURTS-0567-1002-Turbosmart eSG76 Electronic StraightGate - Black-Wastegates-Turbosmart
Click to zoom in

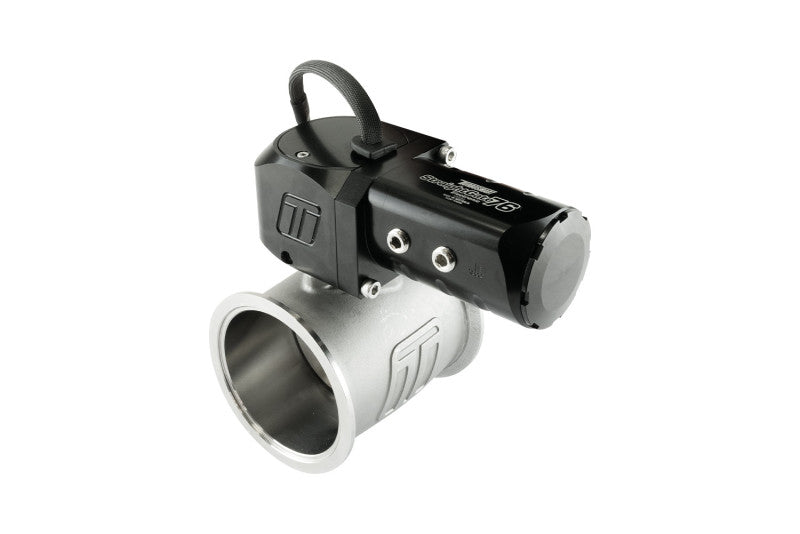

Turbosmart eSG76 Electronic StraightGate - Black

Turbosmart
TURTS-0567-1002
Wastegates
4 Units In Stock - Ships Next Business Day
$ 2,032.99 $ 1,829.69
$ 1,829.69

SKU: TS-0567-1002

Turbosmart eSG76 Electronic StraightGate - Black Universal Fit

The Turbosmart eSG76 Electronic StraightGate - Black is a 76mm external wastegate with electronic actuator for turbocharged performance engines. It installs on any vehicle with matching V-band exhaust manifold flanges and provides boost-by-gear control via ECU signals. Drivers gain fast response and consistent pressure management across RPM ranges.

Key Features

  • Electronic Servo Actuator: Delivers 0-5V or PWM control with position sensor feedback for exact valve positioning and boost accuracy
  • StraightGate Design: Straight-through internal layout boosts exhaust flow and cuts turbo lag for quicker spool-up
  • 347 Stainless Steel Body: Investment cast housing resists corrosion and handles 1000+ degree C temperatures in harsh conditions
  • Inconel Valve and Seat: High-strength X750 Inconel construction ensures durability under high boost and repeated cycles
  • Integrated Cooling Ports: Liquid cooling option maintains actuator performance during prolonged high-heat operation

Product Notes

  • Requires ECU setup with PWM or analog output for operation and tuning
  • Inspect V-band flanges on manifold for compatibility before install
  • Handle actuator carefully to avoid damaging position sensor during shipping unpack

Installation Notes

  • Professional installation recommended.
  • Mount with included V-band clamps and gaskets for secure seal
  • Wire actuator to ECU and verify signal calibration on dyno

This Part Fits

Year Make Model Submodel
Universal All Turbocharged Vehicles 76mm V-Band External Wastegate

Why Choose Turbosmart?

  • Motorsport heritage from World Rally and Drag Racing wins
  • Patented valve and actuator technology for reliable boost holding
  • Precision CNC machined components built in Australia

Frequently Asked Questions

  • Q: Is this wastegate vehicle-specific?
    A: No, it fits universally on setups with 76mm V-band inlet/outlet flanges on exhaust manifolds for external wastegate plumbing
  • Q: What materials are used in construction?
    A: 347 stainless steel body, Inconel X750 valve and seat, with hardened steel spring elements for extreme heat resistance
  • Q: What warranty coverage applies?
    A: Turbosmart provides 12-month manufacturer defect warranty, covering actuator and valve assembly with proper installation

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective box 13 x 13 x 9 inches
  • Weight: 11.90 lbs
