SKU: TS-0223-1078 | UPC: 9329677023282

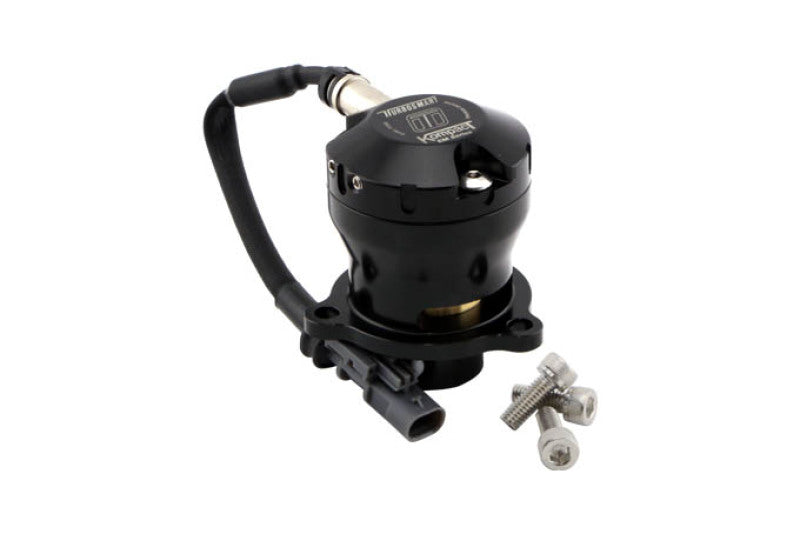

Turbosmart Ford Fiesta ST Mk7 1.6T BOV Kompact EM Dual Port VR22 2013-2019
The Turbosmart Kompact EM Dual Port VR22 is an electronically actuated blow-off valve designed as a direct replacement for the factory diverter valve on Ford Fiesta ST Mk7 models with 1.6T EcoBoost engines. It fits 2013-2019 Fiesta ST vehicles and delivers fast response times with adjustable venting options to handle high boost levels without compressor surge. Drivers experience sharper throttle response and reliable pressure release during shifts for track or street performance.
Key Features
- Electronic Solenoid Actuator: Provides rapid opening and closing synchronized with ECU signals for seamless integration and zero lag in boost management
- Dual Port Venting: Configurable for full recirculation, full atmospheric dump, or hybrid setup using included plugs to match driving conditions and sound preferences
- VR22 Piston Ring Design: Supersonic sealing technology handles over 22 psi of boost pressure with minimal leakage and extended durability under extreme conditions
- Billet 6061 Aluminum Body: Hard anodized finish resists corrosion and wear while maintaining lightweight strength for long-term reliability
- Direct OEM Fitment: Bolts directly to factory mounting points with included O-rings and hardware, no modifications required for Fiesta ST 1.6T
Product Notes
- Requires no ECU tuning for basic operation but tuning recommended for full vent-to-atmosphere use
- Adjust solenoid duty cycle via ECU for custom boost thresholds if desired
- Securely packaged in foam inserts to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Disconnect battery before install and depressurize system by removing fuel pump fuse
- Uses factory mounting bracket and vacuum lines, torque solenoid bolts to 5Nm
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2019 | Ford | Fiesta | ST 1.6T EcoBoost |
Why Choose Turbosmart?
- Engineered in Australia with motorsport heritage from World Rally and Time Attack wins
- Every unit tested for boost holding and actuator response before shipping
- Precision CNC machined components ensure consistent performance across boost ranges
Frequently Asked Questions
-
Q: Will this BOV fit my 2015 Ford Fiesta ST 1.6T?
A: Yes, it provides direct bolt-on fitment for all 2013-2019 Fiesta ST Mk7 models equipped with the 1.6L EcoBoost turbo engine, replacing the OEM diverter valve TS-0223-1078. -
Q: What materials are used in construction?
A: Features billet 6061-T6 aluminum housing with hard anodizing, stainless steel spring, and reinforced piston rings for corrosion resistance and high-pressure sealing. -
Q: Does installation require custom tuning?
A: No tuning needed for recirculation mode, but for vent-to-atmosphere, adjust ECU boost control parameters or solenoid PWM for optimal operation and sound.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Compact retail box 8in x 6in x 4in with protective foam
- Weight: 0.77 lbs product weight, 1.1 lbs shipping weight
