SKU: TS-0554-1502 | UPC: 9329677022384

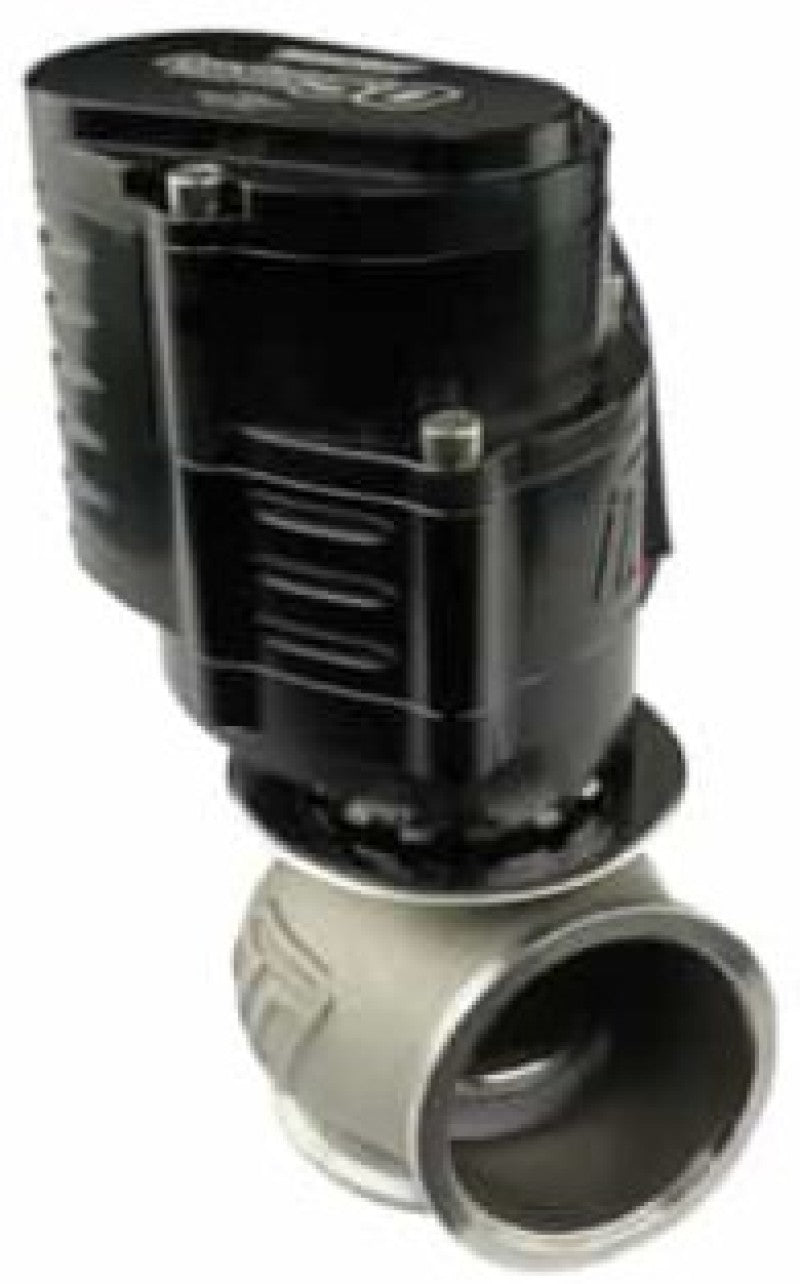

Turbosmart GenV Electronic ProGate50 Electronic External Wastegate
The Turbosmart GenV Electronic ProGate50 is a 50mm external wastegate with full electronic control for precise boost management in turbocharged applications. It fits universal turbo manifolds on engines from 1.4L to 4.0L delivering fast spool-up consistent pressure and high-flow capacity. Eliminate springs for infinite adjustment through software-based tuning.
Key Features
- Electronic Actuator: 10mm linear stroke with position sensor enables exact boost control from 0-10mm travel adjustable via Turbosmart software
- Integrated Controller: CAN bus enabled actuator controller included with plug-and-play wiring harness for seamless ECU integration
- Water-Cooled Housing: Dual ball bearing cartridge with -6AN ports keeps temperatures low during extended high-boost runs
- 347 Stainless Construction: Investment cast body with Nitronic 60 valve seat resists corrosion and handles 1500+HP setups
- V-Band Clamps: 82mm inlet 63mm outlet flanges plus silencer ensure quick install and leak-free seals
Product Notes
- Requires 12V power boost pressure sensor and tuning software for operation
- Use genuine Turbosmart fittings for water cooling lines to prevent leaks
- Store in dry conditions to protect actuator electronics
Installation Notes
- Professional installation recommended.
- Mount in any orientation with actuator protected from exhaust heat
- Compatible with V-band turbo housings includes all necessary gaskets hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | 1.4L-4.0L Engines |
Why Choose Turbosmart?
- Engineered in Australia for global motorsport dominance
- High-flow designs proven in drag rally and circuit racing
- CNC-machined components ensure reliability under extreme boost
Frequently Asked Questions
-
Q: Does this wastegate fit my turbo manifold?
A: Yes it mounts to any V-band compatible external wastegate port on 1.4-4.0L turbo engines with proper manifold design -
Q: What materials are used in construction?
A: 347 stainless steel housing Nitronic 60 valve seat and high-temp seals for durability in harsh environments -
Q: Is tuning software included?
A: Controller pairs with free Turbosmart Gate Commander software for custom actuator curves boost maps and logging
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 14in x 12in x 10in
- Weight: 11 lbs
