SKU: TS-0551-1312 | UPC: 9329677022957

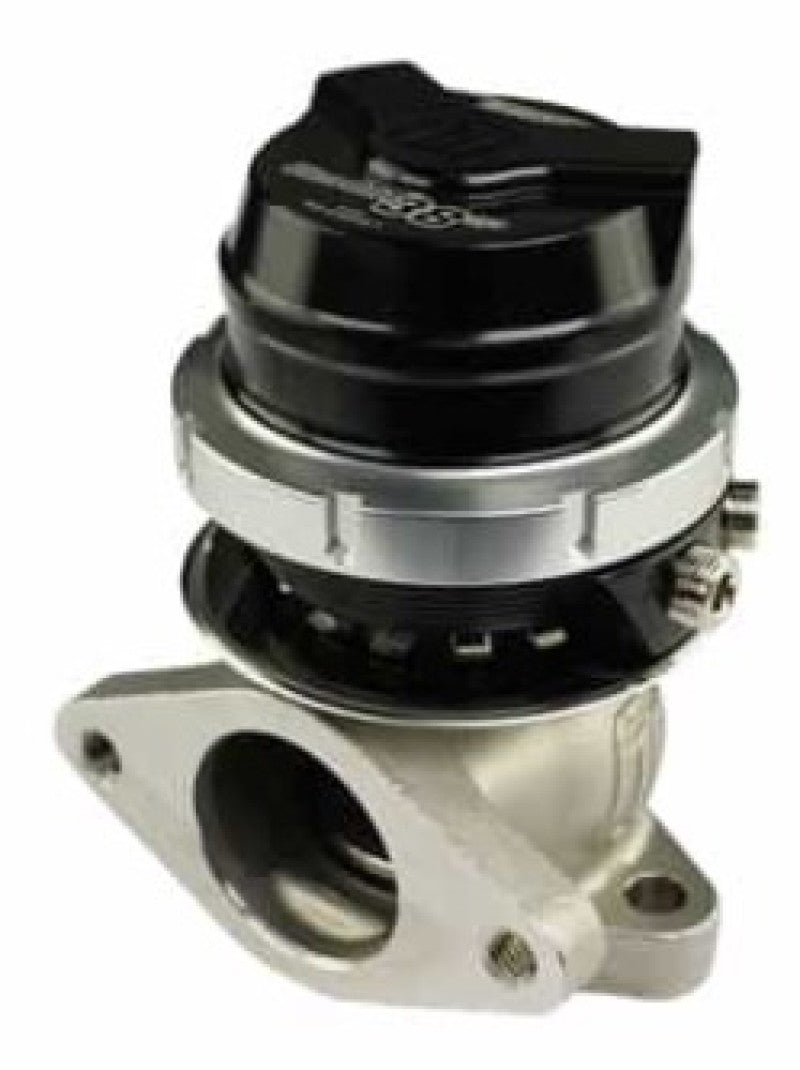

Turbosmart GenV UltraGate 38HP High Pressure 35psi External Wastegate - Black
The Turbosmart GenV UltraGate 38HP sets the standard for external wastegates in high-boost turbo applications. This 38mm valve design delivers unmatched flow for turbochargers sized 55-100mm while handling pressures up to 35psi. Universal fit makes it ideal for custom performance builds seeking reliable boost control.
Key Features
- Liquid Actuator Design: Dual water ports cool the actuator to extend diaphragm life and prevent heat soak during extended runs
- 347 Stainless Steel Body: Investment cast construction endures extreme exhaust gas temperatures over 1000C
- Nitronic 60 Valve Seat: Provides secure sealing and wear resistance for consistent performance at high pressures
- 38mm Valve Capacity: Delivers class-leading exhaust flow rates to support large turbochargers without restriction
- Modular Spring System: Includes 10psi spring with options from 3psi to 35psi for precise boost tuning
Product Notes
- Select matching spring for target boost level, additional springs available separately
- Water cooling lines required for maximum actuator longevity in high-heat environments
- Clearance item, limited stock available
Installation Notes
- Professional installation recommended.
- V-band clamps included for secure manifold and dump pipe connections
- Mount in vertical orientation with actuator facing up for optimal spring function
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | For 55-100mm | Turbocharged Vehicles |
Why Choose Turbosmart?
- Proven in World Time Attack and top drag racing teams worldwide
- Hand-assembled in Australia with motorsport-grade materials
- Every component precision machined for consistent boost response
Frequently Asked Questions
-
Q: Does this wastegate fit specific turbo setups?
A: Universal design suits any 55-100mm compressor turbocharger in custom exhaust manifolds -
Q: What materials are used in construction?
A: 347 stainless steel body, Nitronic 60 seat, 17-7PH diaphragm and Nomex reinforced seals -
Q: What warranty coverage is provided?
A: 3-year unlimited kilometer warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: Ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 12in x 10in x 8in
- Weight: 6.1 lbs
