SKU: TS-0620-4012 | UPC: 9329677022490

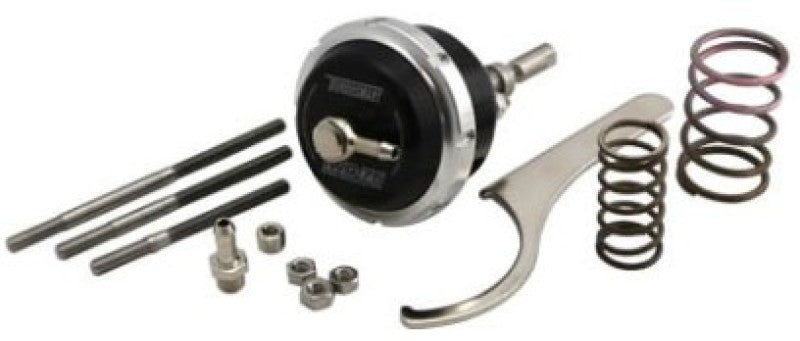

Turbosmart IWG Gen-V Borg Warner EFR Twin Port 14psi Black Wastegates
The Turbosmart IWG Gen-V Borg Warner EFR Twin Port 14psi Black Wastegate serves as a direct replacement actuator for BorgWarner EFR series turbochargers with twin port setups. It provides accurate boost management at 14psi base pressure for street and track applications. Built in Australia with premium materials this wastegate ensures consistent performance under demanding conditions.
Key Features
- Twin Port Configuration: Separate upper and lower ports enable balanced exhaust flow and sharper boost response across the RPM range
- Gen-V Actuator Design: Forged 6061 aluminum housing with extended adjustment collar allows easy spring swaps and precise tuning
- 14psi Factory Spring: 347 stainless steel spring preset to 14psi (0.97 bar) supports up to 30psi with optional springs for broad boost range
- Reinforced Diaphragm: Silicone over Nomex construction withstands extreme heat and pressure for long-term reliability
- Valve and Seat Materials: 7mm diameter valve stem paired with Nitronic 60 seat resists wear and maintains tight seal for minimal boost creep
Product Notes
- Confirm your EFR turbo model has twin port wastegate provision before purchase
- Optional springs available separately for boost adjustment beyond 14psi
- Packaged securely to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Direct bolt-on replacement using factory V-band clamps and mounting points
- Clockable housing rotates 360 degrees for custom exhaust routing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| - | BorgWarner | EFR7163 | Twin Port |
| - | BorgWarner | EFR7670 | Twin Port |
| - | BorgWarner | EFR9180 | Twin Port |
| - | BorgWarner | EFR9280 | Twin Port |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability trusted by performance enthusiasts worldwide
- Rigorous in-house testing exceeds industry standards for durability
Frequently Asked Questions
-
Q: Which BorgWarner EFR turbos is this compatible with?
A: Fits EFR7163 EFR7670 EFR9180 and EFR9280 models equipped with twin port wastegate actuators -
Q: What materials are used in construction?
A: Forged aluminum housing black anodized finish Nitronic 60 valve seat and silicone Nomex diaphragm -
Q: Can boost pressure be adjusted?
A: Yes adjust via the collar or replace with higher rated springs from Turbosmart for pressures up to 30psi
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 9.06 x 6.5 x 3.74 inches (230 x 165 x 95 mm)
- Weight: 3.09 lbs (1.4 kg)
