SKU: TS-0629-1102 | UPC: 9329677021301

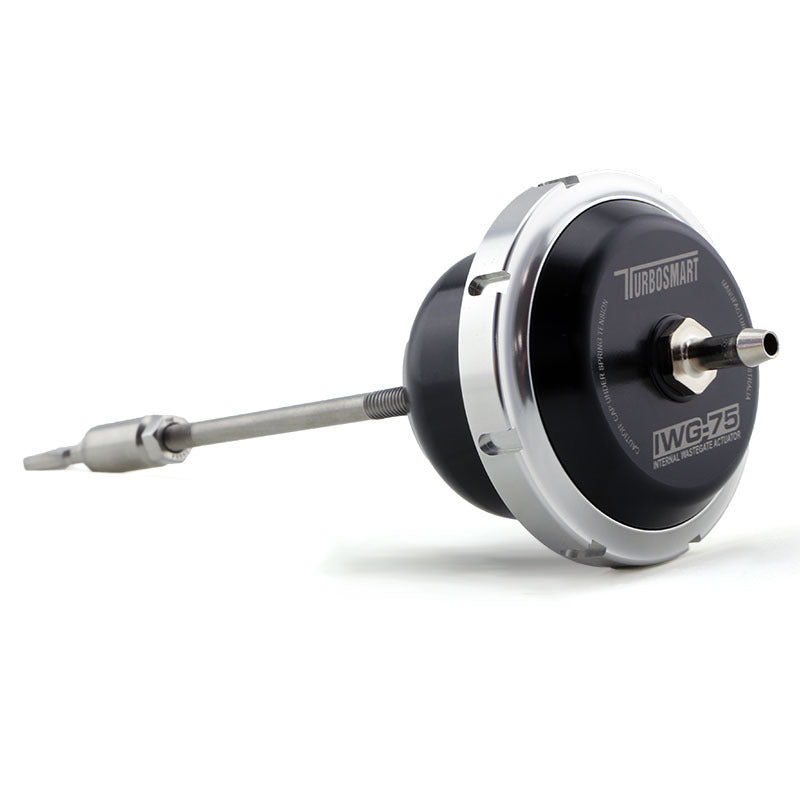

Turbosmart IWG75 2017-2020 Fiat 124 Spider 10 PSI Black Internal Wastegate Actuator
Upgrade your Fiat 124 Spider's turbo boost control with the Turbosmart IWG75 Internal Wastegate Actuator. This direct bolt-on replacement fits 2017-2020 models including Abarth Classica Lusso and Urbana delivering precise 10 PSI operation for responsive throttle and consistent power. Engineered for reliability it replaces the weak factory actuator to hold boost steady under demanding conditions.
Key Features
- 10 PSI Black Spring: Preloaded for exact 10 PSI boost holding with adjustable preload for tuning flexibility across RPM ranges
- 47% Larger Diaphragm: Expanded Nomex-reinforced silicone diaphragm surface responds faster to pressure changes reducing boost lag
- 64mm Phenolic Valve: 1.5mm thick reinforced cone seals tight against Nitronic 60 seat for leak-free operation and durability
- 3/8" 17-4PH Stainless Rod: Heavy-duty 9.5mm shaft resists flex and wear in high-heat turbo environments
- Direct Bolt-On Design: Matches OEM mounting points no fabrication or welding required for seamless Fiat 124 Spider integration
Product Notes
- Hand-assembled in Sydney Australia with strict quality control and dyno testing
- Compatible with factory turbocharger and aftermarket tunes
- Ships securely in protective packaging weighing 0.35 lbs net product weight
Installation Notes
- Professional installation recommended.
- Bolt-on replacement takes under 30 minutes with basic tools
- Uses existing factory hardware no additional brackets needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2020 | Fiat | 124 Spider | Abarth |
| 2017-2020 | Fiat | 124 Spider | Classica |
| 2017-2020 | Fiat | 124 Spider | Lusso |
| 2019-2020 | Fiat | 124 Spider | Urbana |
Why Choose Turbosmart?
- Performance products hand-crafted since 1997 gaining trust in racing communities worldwide
- Manufactured in-house with innovative design rigorous testing and unmatched reliability
- Backed by expert support ensuring every actuator performs beyond stock limits
Frequently Asked Questions
-
Q: Will this fit my 2017 Fiat 124 Spider Abarth?
A: Yes it directly replaces the OEM actuator on 2017-2020 Fiat 124 Spider Abarth Classica Lusso and 2019-2020 Urbana models with 1.4L turbo -
Q: What materials are used in construction?
A: Features high-temperature Nomex-reinforced silicone diaphragm Nitronic 60 valve seat and 17-4PH stainless steel rod for extreme heat resistance -
Q: What warranty coverage applies?
A: Covered by Turbosmart's world-class warranty contact support with proof of purchase for claims
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 6.7 x 4.3 x 3.1 inches
- Weight: 0.35 lbs product 0.5 lbs shipping
