SKU: TS-0626-1262 | UPC: 9329677013146

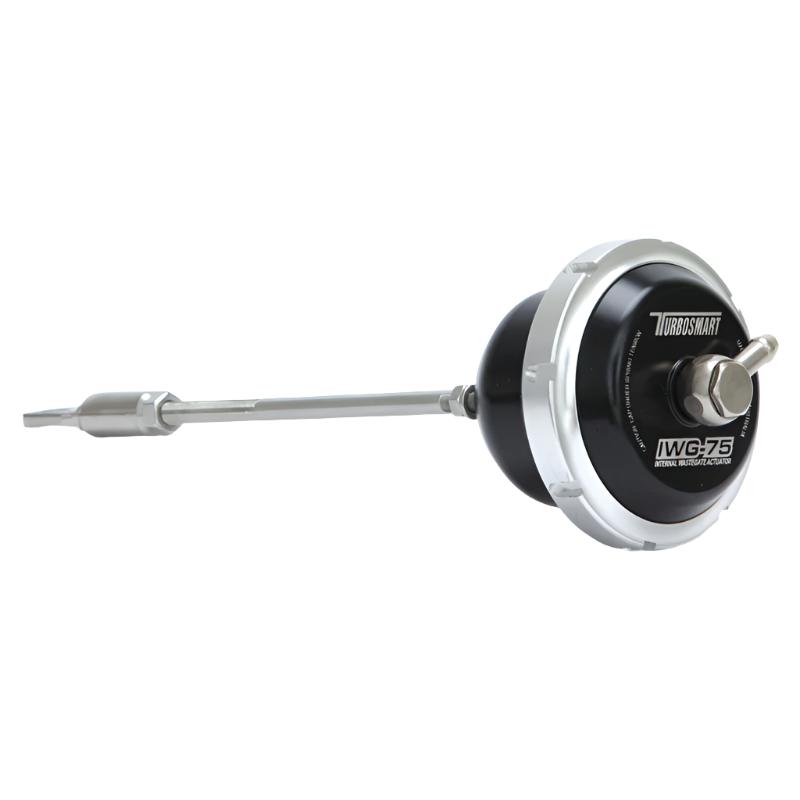

Turbosmart IWG75 Dodge Cummins Turbo Diesel 26 PSI Black Internal Wastegate Actuator 1998-2004 Ram 1500 2500 3500
Upgrade your Dodge Ram Cummins 5.9L turbo diesel with the Turbosmart IWG75 26 PSI Black Internal Wastegate Actuator, a direct-fit replacement for Holset HY35W turbos. Fits 1998-2004 Ram 1500, 2500, and 3500 models, this actuator delivers precise boost control up to 26 PSI for improved power and throttle response. Handcrafted in Australia with billet aluminum and high-temp materials for long-lasting performance under extreme conditions.
Key Features
- 26 PSI Spring Pressure: Allows safe boost levels up to 26 PSI (0.18 Bar) on stock Holset turbos, enabling more power without actuator failure
- Nitronic 60 Valve Seat: Provides extended seat life and resistance to corrosion for reliable operation over thousands of miles
- High-Temp Silicone Nomex Diaphragm: Withstands heat up to 500°F to prevent boost creep and maintain consistent control
- 6061 Billet Aluminum Housing: CNC machined for strength and lightweight design at just 4 oz, reducing turbo lag
- Black Anodized Finish: Corrosion-resistant coating matches OEM look while enhancing durability in harsh diesel environments
Product Notes
- Direct bolt-on replacement for factory actuator on HX35/HY35W turbos with Cummins 5.9L 24V engines
- Pair with Turbosmart boost gauge for monitoring. no core charge required
- Ships in protective foam packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Remove stock actuator rod from wastegate fork, install new actuator with included c-clip, and adjust preload to match 26 PSI spring
- Compatible with stock mounting bracket. no fabrication needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2001 | Dodge | Ram 1500 | Laramie |
| 2002 | Dodge | Ram 1500 | SLT |
| 1998-2001 | Dodge | Ram 1500 | Sport |
| 1998 | Dodge | Ram 1500 | SS/T 5.9L |
| 1998-2002 | Dodge | Ram 1500 | ST |
| 1998-2001 | Dodge | Ram 1500 | WS |
| 1999-2002 | Dodge | Ram 1500 Van | Base |
| 1998-2002 | Dodge | Ram 2500 | Base |
| 2003 | Dodge | Ram 2500 | Laramie |
| 2003-2004 | Dodge | Ram 2500 | SLT |
| 2003-2004 | Dodge | Ram 2500 | ST |
| 1999-2003 | Dodge | Ram 2500 Van | Base |
| 1998-2002 | Dodge | Ram 3500 | Base |
| 2003-2004 | Dodge | Ram 3500 | Laramie |
| 2003-2004 | Dodge | Ram 3500 | SLT |
| 2003-2004 | Dodge | Ram 3500 | ST |
| 1999-2003 | Dodge | Ram 3500 Van | Base |
Why Choose Turbosmart?
- Handcrafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in performance diesel applications worldwide
- Rigorous in-house testing exceeds industry standards for boost control
Frequently Asked Questions
-
Q: Will this fit my 1998.5-2002 Dodge Ram 2500 5.9L Cummins with stock Holset turbo?
A: Yes, direct fit for HX35/HY35W turbos on 24V 5.9L Cummins engines in 1998-2004 Ram trucks and vans -
Q: What material is the diaphragm made from?
A: High-temperature silicone with Nomex reinforcement for superior heat resistance and flexibility -
Q: Does it come with a warranty and is installation easy?
A: Backed by Turbosmart lifetime warranty against defects. bolt-on install takes 30-60 minutes with basic tools
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 5" x 4" x 3"
- Weight: 4 oz (0.25 lbs) product weight
