SKU: TS-0622-5072

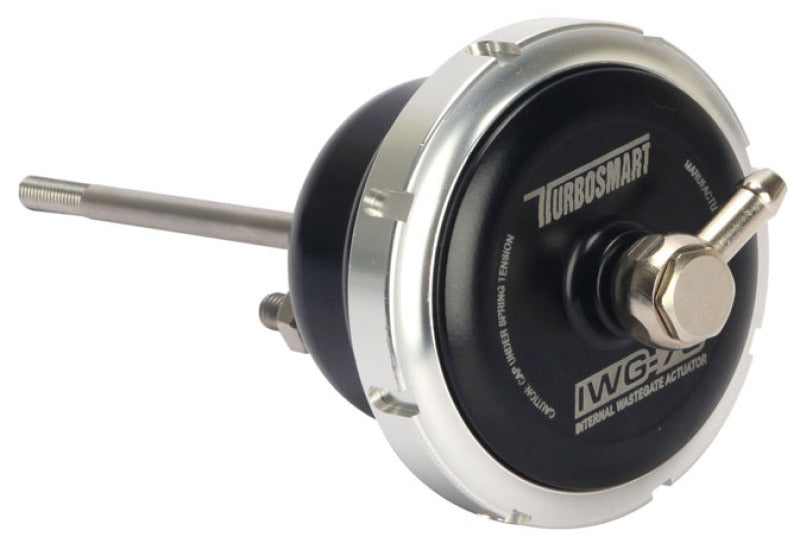

Turbosmart IWG75 Ford EcoBoost 7 PSI Black Internal Wastegate Actuator 2013-2018 Ford Focus ST
Boost your Ford Focus ST performance with the Turbosmart IWG75 7 PSI Black Internal Wastegate Actuator, designed as a direct replacement for the factory unit on 2013-2018 models with 2.0L EcoBoost engines. This actuator delivers consistent 7 PSI boost holding for reliable power gains and sharper throttle response. Hand-built in Sydney, Australia, it sets a benchmark in durability and control for enthusiasts seeking dependable turbo management.
Key Features
- 7 PSI Spring: Holds boost steady at 7 PSI across RPM range for smooth power delivery and reduced boost creep.
- Extended Travel: 1.5x more linear rod travel than OEM actuator enables wider boost adjustment without binding.
- Black Nitronic Rod: Corrosion-resistant 17-4PH stainless steel rod withstands extreme heat and pressure cycles.
- Nomex-Reinforced Diaphragm: High-temperature diaphragm maintains shape and response under sustained boost.
- Billet 6061 Construction: CNC-machined aluminum body ensures lightweight strength and perfect OEM fitment.
Product Notes
- Direct bolt-on installation with no modifications to turbo housing or brackets required.
- Pre-loaded spring simplifies setup. fine-tune preload for custom boost targets.
- Store in dry conditions to preserve diaphragm integrity.
Installation Notes
- Professional installation recommended.
- Remove factory actuator circlip and rod. install new actuator with supplied circlip tool.
- Compatible with stock turbocharger hardware. torque rod nut to 5 Nm.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2018 | Ford | Focus | ST |
Why Choose Turbosmart?
- Hand-crafted in Sydney factory since 1997 with strict quality control.
- Rigorous in-house testing exceeds industry standards for reliability.
- Proven design from performance community favorite with dedicated support.
Frequently Asked Questions
-
Q: Does this fit 2013-2018 Ford Focus ST 2.0L EcoBoost?
A: Yes, it is a direct OEM replacement for all 2013-2018 Focus ST models with the factory turbocharger. -
Q: What material is the actuator made from?
A: Billet 6061-T6 aluminum housing with Nitronic 17-4PH stainless steel rod and Nomex diaphragm for heat resistance up to 300C. -
Q: What warranty coverage is provided?
A: Backed by Turbosmart's manufacturing defect warranty with worldwide support through authorized dealers.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 6.5 x 4.5 x 2.5 inches
- Weight: 0.4 lbs
