SKU: TS-0622-7142 | UPC: 9329677017687

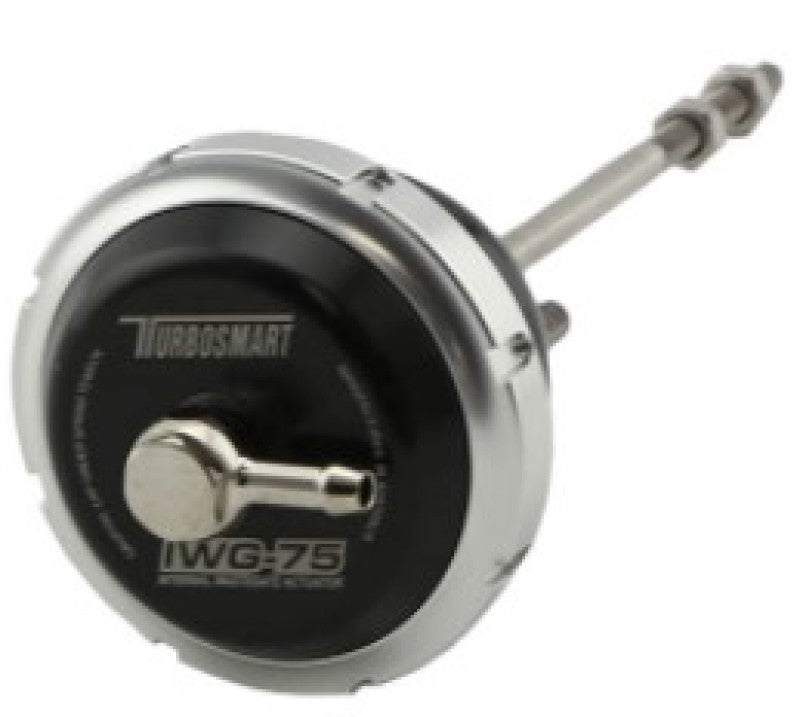

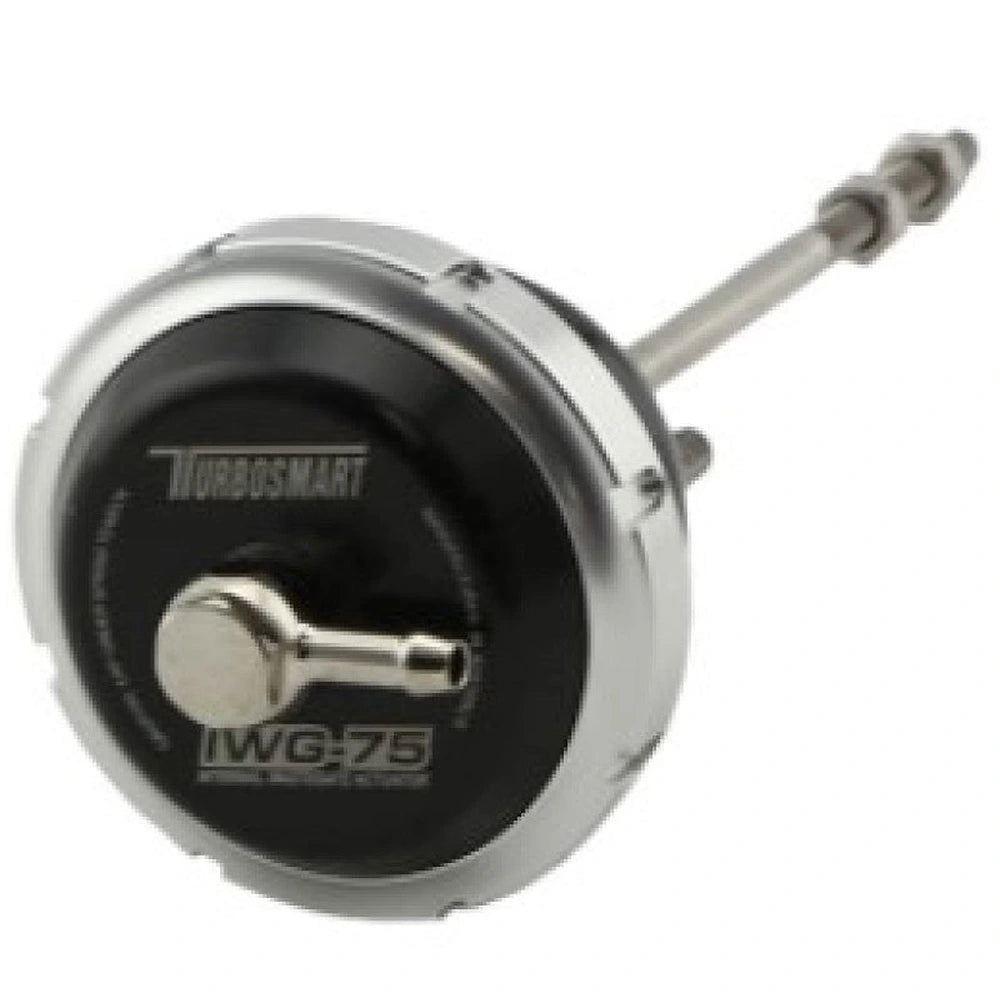

Turbosmart IWG75 Ford Fiesta ST 1.6L Ecoboost 14 PSI Black Internal Wastegate Actuator 2014-2019
The Turbosmart IWG75 Internal Wastegate Actuator delivers precise 14 PSI boost control for 2014-2019 Ford Fiesta ST 1.6L EcoBoost models. This direct bolt-on replacement upgrades factory actuators with reliable performance and extended preload for consistent turbo response. Built in Australia with strict quality control it holds boost steady under demanding conditions.
Key Features
- 14 PSI Spring Preload: Factory calibrated spring provides consistent boost levels with tolerance under 2 percent for repeatable performance on Fiesta ST turbos
- Direct Bolt-On Fit: Matches OEM mounting points on 1.6L EcoBoost no modifications required for quick installation
- Reinforced Diaphragm: High-temperature silicone Nomex diaphragm resists fatigue and maintains seal integrity at high boost pressures
- Billet Aluminum Arm: Hard anodized black aluminum arm with 115mm length ensures smooth operation and corrosion resistance
- Nitronic 60 Valve Seat: Wear-resistant seat extends actuator life and prevents boost leaks over time
Product Notes
- Pair with ECU tuning for full boost potential and optimal turbo spool
- Inspect wastegate valve during install for carbon buildup
- Ships in protective foam packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Requires basic hand tools and 30-60 minutes labor time
- Compatible with factory turbocharger hardware no additional brackets needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2019 | Ford | Fiesta | ST |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with rigorous testing
- Proven reliability trusted in global performance communities
- Innovative design and strict quality control beyond factory standards
Frequently Asked Questions
-
Q: Does this fit 2016 Ford Fiesta ST 1.6L EcoBoost?
A: Yes it bolts directly onto all 2014-2019 Fiesta ST models with 1.6L EcoBoost turbochargers -
Q: What materials are used in construction?
A: Features billet 6061 aluminum arm with black anodizing high-temp silicone diaphragm and Nitronic 60 seat for durability -
Q: What warranty coverage applies?
A: Backed by Turbosmart limited lifetime warranty on springs and manufacturing defects with easy claims process
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 7 x 5 x 3 inches
- Weight: 0.8 lbs
