SKU: TS-0601-3142 | UPC: 9329677012675

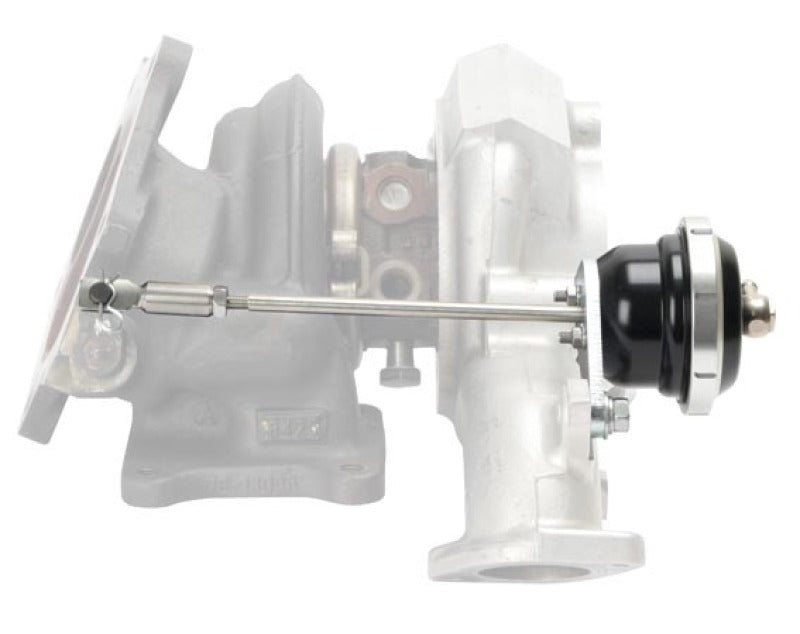

Turbosmart IWG75 Mitsubishi EVO 10 14 PSI Black Internal Wastegate Actuator (2008-2015 Lancer Evolution X)
The Turbosmart IWG75 Internal Wastegate Actuator delivers precise 14 PSI boost control as a direct replacement for the factory unit on Mitsubishi Lancer Evolution X models from 2008 to 2015. Designed for the stock TD05H-16G6-10.5T turbocharger, it improves boost response and stability for track or street use. Hand-built in Australia with rigorous testing, it ensures reliable performance under high-stress conditions.
Key Features
- 75mm Diaphragm: Larger surface area increases boost sensitivity for faster spool-up and consistent pressure holding
- 14 PSI Preload Spring: Maintains exact boost levels without creep, ideal for tuned EVO X setups
- Black Anodized Finish: Corrosion-resistant aluminum housing withstands heat and road debris
- Nomex-Reinforced Silicone Diaphragm: Handles extreme temperatures up to 500°F for long-term durability
- Direct Bolt-On Design: Matches OEM mounting points with no fabrication or adjustments needed
Product Notes
- Pair with stock turbo or upgraded TD05H for best results
- Inspect wastegate linkage during install for smooth operation
- Ships in protective foam packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Remove factory actuator from turbo wastegate canister using basic hand tools
- Compatible with OEM rods and brackets. torque to 10 Nm
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008,2010-2015 | Mitsubishi | Lancer | Evolution GSR |
| 2008,2010-2015 | Mitsubishi | Lancer | Evolution MR |
| 2010-2011 | Mitsubishi | Lancer | Evolution MR Touring |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in performance community with rigorous testing
- Innovative engineering exceeds OEM standards for boost management
Frequently Asked Questions
-
Q: Will this fit all 2008-2015 Mitsubishi Lancer Evolution X models?
A: Yes, it directly replaces the factory actuator on all EVO X variants with the TD05H turbo including MR, GSR, SE, MR Touring, and Final Edition -
Q: What materials are used in construction?
A: 6061-T6 aluminum body with anodized black finish and high-temp Nomex-reinforced silicone diaphragm for heat resistance -
Q: What warranty coverage is provided?
A: Turbosmart offers a 2-year unlimited mileage warranty on the actuator with lifetime warranty on the preload spring
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box measuring 7 x 5 x 3 inches
- Weight: 0.9 lbs (410 grams)
