SKU: TS-0601-3182 | UPC: 9329677012811

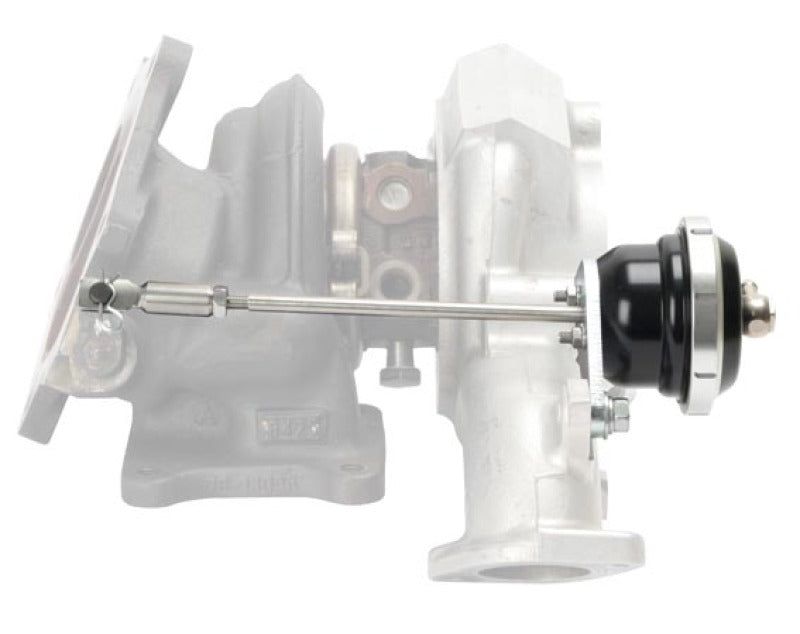

Turbosmart IWG75 Mitsubishi EVO 10 18 PSI Black Internal Wastegate Actuator
Upgrade your Mitsubishi Lancer Evolution X (Evo 10) turbo with the Turbosmart IWG75 18 PSI Black Internal Wastegate Actuator, a direct bolt-on replacement designed for 2008-2015 models including MR, GSR, MR Touring, SE, and Final Edition. This actuator delivers precise boost control up to 18 PSI for consistent performance during high-RPM pulls and track days. Hand-built in Sydney, Australia, it replaces the weak factory unit to hold boost levels reliably without surging or creep.
Key Features
- 18 PSI Spring: Factory-equipped heavy-duty spring maintains boost stability up to 18 PSI, with optional lower springs (3, 5, 7, 10, 14 PSI) for tuning flexibility across street or race setups.
- Extended Diaphragm Travel: 75% more stroke than OEM allows faster response and tighter boost control, reducing wastegate flutter on Evo 10 TD05H turbos.
- Motec Nitrogen Capsule: Liquid-filled for temperature stability up to 200°C, ensuring consistent actuation in extreme heat without boost loss.
- Black Anodized Finish: Durable corrosion-resistant coating matches Evo engine bays while protecting internal components from road salt and debris.
- Direct Bolt-On Fit: No modifications required, uses stock mounting brackets and rod for Evo 10 Evolution models, installs in under 30 minutes.
Product Notes
- Pair with Turbosmart boost controller for full adjustability beyond 18 PSI.
- Inspect turbo wastegate housing for wear before installation.
- Ships in protective foam packaging to prevent rod bending.
Installation Notes
- Professional installation recommended.
- Disconnect battery and relieve turbo boost pressure before removal.
- Compatible with stock Evo 10 TD05H-20B/20G turbos. adjust rod length to match OEM preload.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008,2010-2013 | Mitsubishi | Lancer | DE |
| 2008,2010-2015 | Mitsubishi | Lancer | ES |
| 2011-2014 | Mitsubishi | Lancer | ES Sportback |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition |
| 2008,2010-2015 | Mitsubishi | Lancer | Evolution GSR |
| 2008,2010-2015 | Mitsubishi | Lancer | Evolution MR |
| 2010-2011 | Mitsubishi | Lancer | Evolution MR Touring |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2012-2015 | Mitsubishi | Lancer | GT |
| 2012-2014 | Mitsubishi | Lancer | GT Sportback |
| 2008,2010-2011 | Mitsubishi | Lancer | GTS |
| 2010-2011 | Mitsubishi | Lancer | GTS Sportback |
| 2010-2015 | Mitsubishi | Lancer | Ralliart |
| 2010-2011 | Mitsubishi | Lancer | Ralliart Sportback |
| 2012-2015 | Mitsubishi | Lancer | SE |
Why Choose Turbosmart?
- Hand-crafted in Sydney, Australia since 1997 with strict quality control and rigorous dyno testing.
- Boost controllers trusted by racers worldwide for reliability under extreme conditions.
- Innovative designs like extended stroke diaphragms set industry benchmarks for Evo upgrades.
Frequently Asked Questions
-
Q: Does this fit all 2008-2015 Mitsubishi Lancer Evolution X models?
A: Yes, direct fit for Evo 10 GSR, MR, MR Touring, SE, and Final Edition with TD05H turbos. confirm your turbo housing matches. -
Q: What material is the actuator made from?
A: Forged 6061 aluminum housing with stainless steel rod and EPDM diaphragm for heat and pressure resistance. -
Q: What warranty comes with this part?
A: Turbosmart offers a 1-year warranty against defects when installed correctly. register online for extended coverage.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 8 x 6 x 4 inches with foam inserts
- Weight: 1.1 lbs (0.5 kg)
